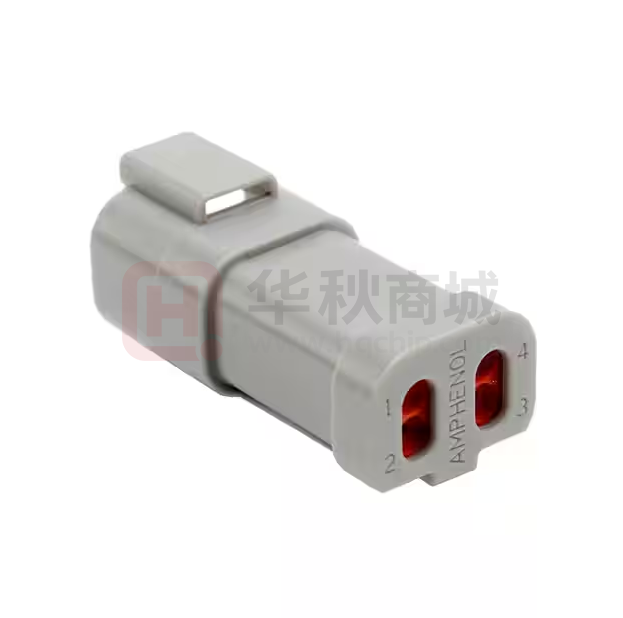

AT04-4P-SS01

REVISIONS REV 48.1±0.6 ECO A3 A4 C0540S A5 DESCRIPTION DATE BY RELEASE NEW DWG FORMAT 03/JAN/14 ORION APPR UPDATE DIMENSIONS 05AUG16 JONY TOMMY ADD COLOR OPTION 23NOV20 LOUIE TOMMY TITLE: 19.6 STANDARD COLOR IS GREY, ADDITION COLOR SHOWN IN PART NUMBER CHART DWG NO: REFER TO PART NUMBER CHART FOR AVAILABLE CONNECTOR COLORS NOTES: UNLESS OTHERWISE SPECIFIED 1. MATERIAL: HOUSING: THERMOPLASTIC SEAL: SILICONE RUBBER 21.0 2. MODIFICATIONS: BLOCKED GROMMET PART NUMBER CHART COLOR SH: PART NUMBER GREY AT04-4P-SS01 BLACK AT04-4P-SS01BLK BLUE AT04-4P-SS01BLU BROWN AT04-4P-SS01BRN GREEN AT04-4P-SS01GRN RED AT04-4P-SS01RED SEE PART NUMBER CHART PART NUMBER REF: DT04-4P-C017 DESCRIPTION QUANTITY DRAWN: CHECKED: X 5. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY. WHITE AT04-4P-SS01WHT YELLOW AT04-4P-SS01YEL OF: 4. MATING PART: AT06-4S* PLUG ( * = MODIFICATIONS AND COLORS ) REV: 3. SPECIFICATIONS: 3.1 CURRENT RATING: 13 AMPS 3.2 OPERATING TEMPERATURE: -55°C TO +125°C 3.3 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2 MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC. 3.4 INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 25°C. 3.5 MOISTURE RESISTANCE: IP68(1M OF WATER FOR A PERIOD OF 24 HOURS, MATED CONDITION) IP69K(MATED CONDITION) 3.6 MATING CYCLE DURABILITY: 100 CYCLES 3.7 RoHS COMPLIANT Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: APPROVAL: MATERIAL SPECIFICATIONS: ORANGE AT04-4P-SS01ORG RECEPTACLE, 4 PIN, AT SERIES, BLOCKED GROMMET CUSTOMER: PROCESS SPECIFICATIONS: THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. TYPE DWG NO: B NEXT ASS'Y: NONE A5 SHEET 1 OF 1
