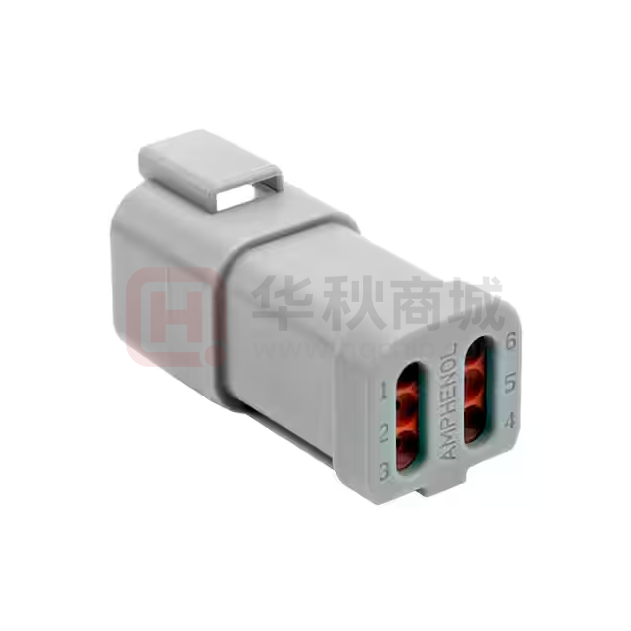

AT04-6P-SS01

REVISIONS 48.2±0.6 REV ECO A3 A4 DESCRIPTION RELEASE NEW DWG FORMAT C0540S A5 DATE BY 03/JAN/14 ORION APPR UPDATE DIMENSIONS 04JUL16 JONY TOMMY ADD COLOR OPTION 23NOV20 LOUIE TOMMY TITLE: 24.3 STANDARD COLOR IS GREY, ADDITION COLOR SHOWN IN PART NUMBER CHART DWG NO: NOTES: UNLESS OTHERWISE SPECIFIED 1. MATERIAL: HOUSING: THERMOPLASTIC SEAL: SILICONE RUBBER 2. MODIFICATIONS: BLOCKED GROMMET 21.1 COLOR PART NUMBER GREY AT04-6P-SS01 BLACK AT04-6P-SS01BLK BLUE AT04-6P-SS01BLU BROWN AT04-6P-SS01BRN GREEN AT04-6P-SS01GRN RED AT04-6P-SS01RED WHITE AT04-6P-SS01WHT YELLOW AT04-6P-SS01YEL ORANGE AT04-6P-SS01ORG SEE PART NUMBER CHART PART NUMBER OF: 5. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY. STANDARD MOLDED COLOR IS GREY. ADDITIONAL COLORS SHOWN IN PART NUMBER CHART ARE AVAILABLE VIA SPECIAL ORDER. PART NUMBER CHART SH: 4. MATING PART: AT06-6S* PLUG ( * = MODIFICATIONS AND COLORS ) REV: 3. SPECIFICATIONS: 3.1 CURRENT RATING: 13 AMPS 3.2 OPERATING TEMPERATURE: -55°C TO +125°C 3.3 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2 MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC. 3.4 INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 25°C. 3.5 MOISTURE RESISTANCE: IP68(1M OF WATER FOR A PERIOD OF 24 HOURS, MATED CONDITION) IP69K(MATED CONDITION) 3.6 MATING CYCLE DURABILITY: 100 CYCLES 3.7 RoHS COMPLIANT REF: DT04-6P-C017 DESCRIPTION QUANTITY DRAWN: CHECKED: X Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: APPROVAL: MATERIAL SPECIFICATIONS: CUSTOMER: PROCESS SPECIFICATIONS: THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. RECEPTACLE, 6 PIN, AT SERIES, BLOCKED GROMMET TYPE DWG NO: B NEXT ASS'Y: A5 NONE SHEET 1 OF 1
