REVISIONS
REV
ECO
A3
-
DESCRIPTION
RELEASE NEW DRAWING FORMAT
DATE
BY
APPR
02JAN14
JARRY
-
45.6
TITLE: PLUG,12 SOCKET,KEYED,AT SERIES,REDUCED DIA WIRE SEAL
REQUIRES CONTACT
RETENTION WEDGE AW12S
7
REDUCED DIAMETER
WIRE SEAL
31.3
18.3
DWG NO:
1
KEYED (3) PLACES
AT06-12SX-RDXXX
1 REFER TO SHEET 2 FOR
AVAILABLE CONNECTOR COLORS
NOTES: UNLESS OTHERWISE SPECIFIED
1 SEE SHEET 2 FOR KEY ARRANGEMENTS AND COLORS.
REV:
2. MATERIAL:
HOUSING: THERMOPLASTIC
SEAL: SILICONE RUBBER
A3
SH:
3. MODIFICATIONS: REDUCED DIAMETER WIRE SEAL
1
UNLESS OTHERWISE SPECIFIED
1) All dimensions are in metric(mm).
2) Tolerances are as follows:
1 PL DEC ±0.30
Fractions ±1/64
2 PL DEC ±0.15
Angles ±1°
3 PL DEC ±0.08
X
7 CONTACT SIZE AND REAR SEAL WIRE RANGE:
SIGNATURES
DRAWN:
JARRY
ITEM
Amphenol
DATE
02JAN14
CHECKED:
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
ENGINEER:
APPROVAL:
MATERIAL SPECIFICATIONS:
5. MATING PART: AT04-12PX* RECEPTACLE
( X = A,B,C,D KEYS; * = MODIFICATIONS AND COLORS )
6. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.
CONTACT
SIZE
MIN. INSUL
O.D.
MAX. INSUL
O.D.
TYPICAL
WIRE RANGE
16
1.35 mm
(.053 in)
3.05 mm
(.120 in)
14 - 20 AWG
CUSTOMER:
PROCESS SPECIFICATIONS:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
PLUG, 12 SOCKET, KEYED, AT SERIES,
REDUCED DIAMETER WIRE SEAL
TYPE
B C-
NEXT ASS'Y:
NONE
DWG NO:
REVISION
AT06-12SX-RDXXX
SHEET
1
A3
OF
2
2
SEE SHEET 2
DESCRIPTION
PART NUMBER
MATERIALS LIST
QUANTITY
3) Note reference =
OF:
4. SPECIFICATIONS:
4.1 CURRENT RATING: 13 AMPS
4.2 OPERATING TEMPERATURE: -55°C TO +125°C
4.3 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2
MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC.
4.4 INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 25°C.
4.5 MOISTURE RESISTANCE: IP67 ( MATED CONDITION )
4.6 MATING CYCLE DURABILITY: 100 CYCLES
4.7 RoHS COMPLIANT
REVISIONS
REV

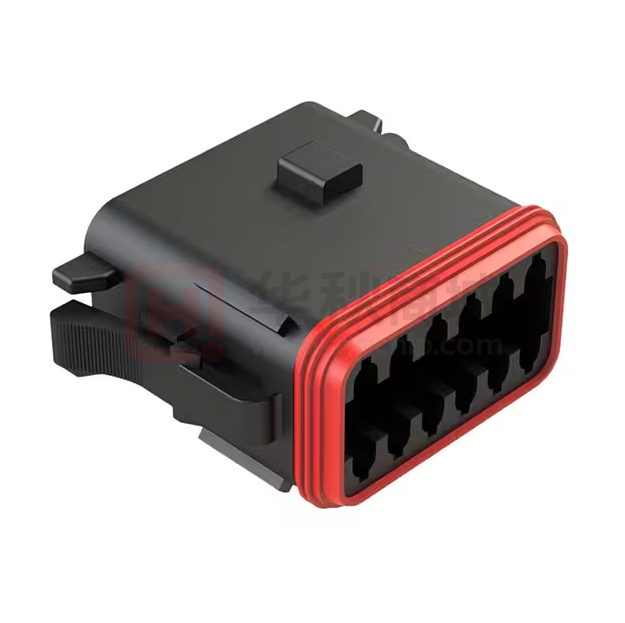

P/N AT06-12SA-RD01
KEY-A CONFIGURATION
STANDARD COLOR: GREY
P/N AT06-12SB-RD01
KEY-B CONFIGURATION
STANDARD COLOR: BLACK
ECO
DESCRIPTION
DATE
BY
APPR
P/N AT06-12SD-RD01
KEY-D CONFIGURATION
STANDARD COLOR: BROWN
P/N AT06-12SC-RD01
KEY-C CONFIGURATION
STANDARD COLOR: GREEN
TITLE: PLUG,12 SOCKET,KEYED,AT SERIES,REDUCED DIA WIRE SEAL
KEYED
(3) PLACES
KEYED
(3) PLACES
KEYED
(3) PLACES
KEYED
(3) PLACES
DWG NO:
AT06-12SA-RD01
COLOR
GREY
BROWN
AT06-12SA-RDBRN
BROWN
PART NUMBER
COLOR
PART NUMBER
AT06-12SB-RDGRY
GREY
AT06-12SC-RDGRY
GREY
AT06-12SD-RDGRY
AT06-12SB-RD01
BLACK
AT06-12SC-RDBLK
BLACK
AT06-12SD-RDBLK
AT06-12SC-RD01
GREEN
AT06-12SD-RDGRN
AT06-12SB-RDGRN
AT06-12SB-RDBRN
DESCRIPTION
PART NUMBER
MATERIALS LIST
QUANTITY
UNLESS OTHERWISE SPECIFIED
1) All dimensions are in metric(mm).
2) Tolerances are as follows:
1 PL DEC ±0.30
Fractions ±1/64
2 PL DEC ±0.15
Angles ±1°
3 PL DEC ±0.08
3) Note reference =
AT06-12SD-RD01
X
SIGNATURES
DRAWN:
JARRY
ITEM
Amphenol
DATE
02JAN14
CHECKED:
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
ENGINEER:
APPROVAL:
MATERIAL SPECIFICATIONS:
CUSTOMER:
OTHER COLORS SHOWN ARE AVAILABLE VIA SPECIAL ORDER.
PROCESS SPECIFICATIONS:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
PLUG, 12 SOCKET, KEYED, AT SERIES,
REDUCED DIAMETER WIRE SEAL
TYPE
B C-
NEXT ASS'Y:
NONE
DWG NO:
REVISION
AT06-12SX-RDXXX
SHEET
2
A3
OF
2
2
AN ASTERISKS ( * ) PLACED BEFORE THE COLOR DENOTES THE STANDARD
MOLDED COLOR OF THE CONNECTORS SHOWN ABOVE.
* BROWN
AT06-12SC-RDBRN
OF:
NOTE:
GREEN
* BROWN
2
AT06-12SA-RDGRN
COLOR
SH:
GREEN
* BLACK
GREEN
AT06-12SA-RDBLK
PART NUMBER
KEY-D CONFIGURATION
A3
GREY
* BLACK
PART NUMBER
KEY-C CONFIGURATION
REV:
COLOR
KEY-B CONFIGURATION
AT06-12SX-RDXXX
KEY-A CONFIGURATION
A Series™ - Contact Size 16 Options (Works with: AT, ATV, AHD-9, ARC, DuraMate and PanelMate Series)
Stamped & Formed Contacts, Sockets & Pins
Machined Contacts, Sockets & Pins
Size
AWG
Type
AT60-215-1631
Male Contact - Pin, Gold-plated
16
14
Machined
AT60-14-0122
Male Contact - Pin, Nickel-plated
16
14-18
Stamped & Formed
Part Number
Description
Size
AWG
Type
Part Number
Description
AT62-209-1631
Female Contact - Socket, Gold-plated
16
14
Machined
AT62-14-0122
Female Contact - Socket, Nickel-plated
16
14-18
Stamped & Formed
AT60-215-16141
Male Contact - Pin, Nickel-plated
16
14
Machined
AT60-14-0144
Male Contact - Pin, Gold-plated
16
14-18
Stamped & Formed
AT62-209-16141
Female Contact - Socket, Nickel-plated
16
14
Machined
AT62-14-0144
Female Contact - Socket, Gold-plated
16
14-18
Stamped & Formed
AT60-202-1631
Male Contact - Pin, Gold-plated
16
16-20
Machined
AT60-16-0122
Male Contact - Pin, Nickel-plated
16
16-18
Stamped & Formed
Machined
AT62-16-0122
Female Contact - Socket, Nickel-plated
16
16-18
Stamped & Formed
Male Contact - Pin, Gold-plated
16
16-18
Stamped & Formed
AT62-201-1631
Female Contact - Socket, Gold-plated
16
16-20
AT60-202-16141
Male Contact - Pin, Nickel-plated
16
16-20
Machined
AT60-16-0144
AT62-201-16141
Female Contact - Socket, Nickel-plated
16
16-20
Machined
AT62-16-0144
Female Contact - Socket, Gold-plated
16
16-18
Stamped & Formed
AT60-202-1631-22
Male Contact - Pin, Gold-plated
16
22-24
Machined
AT60-16-0622
Male Contact - Pin, Nickel-plated
16
16-20
Stamped & Formed
AT62-201-1631-22
Female Contact - Socket, Gold-plated
16
22-24
Machined
AT62-16-0622
Female Contact - Socket, Nickel-plated
16
16-20
Stamped & Formed
AT60-202-16141-22
Male Contact - Pin, Nickel-plated
16
22-24
Machined
AT60-16-0644
Male Contact - Pin, Gold-plated
16
16-20
Stamped & Formed
AT62-201-16141-22
Female Contact - Socket, Nickel-plated
16
22-24
Machined
AT62-16-0644
Female Contact - Socket, Gold-plated
16
16-20
Stamped & Formed
AT60-16-0677
Male Contact - Pin, Tin-plated
16
16-20
Stamped & Formed
AT62-16-0677
Female Contact - Socket, Tin-plated
16
16-20
Stamped & Formed
Description
AT60-16-0822
Male Contact - Pin, Nickel-plated
16
20-22
Stamped & Formed
AUTK-16
Hand Crimp Tool, Size 16
AT62-16-0822
Female Contact - Socket, Nickel-plated
16
20-22
Stamped & Formed
AUTK-100
Universal Heavy Duty Contact Crimping Tool Kit, Size 12/16/20
AT60-16-0844
Male Contact - Pin, Gold-plated
16
20-22
Stamped & Formed
CA-5D12
Universal Hand Crimp Tool, Size 12/16/20
AT62-16-0844
Female Contact - Socket, Gold-plated
16
20-22
Stamped & Formed
CA-5E12
Pneumatic Crimp Tool, Size 12/16/20
Tooling - Machined Contacts
Part Number
Tooling - Stamped & Formed Contacts
Contact Removal Tools (For both Machined or Stamped & Formed Contacts)
Part Number
ATRT-100
AT11-310-1605
Description
MFX-3950
Crimp Die - Size 16, 18-20AWG
MFX-3953
Crimp Die - Size 16, 16-18AWG
MFX-3975
Crimp Die - Size 16, 14-16AWG
MFX-3990
Crimp Die - Size 16, 20-22AWG
ATT-16-00
Hand Crimp Tool - Size 16, 14-16AWG
ATT-16-01
Hand Crimp Tool - Size 16, 18-20AWG
ATT-1612-03
Hand Crimp Tool - Size 16, 20-22AWG
Contact and Wedgelock Extraction Tool
Contact Removal Tool, Plastic, Size 16
Sealing Plugs (For both Machined or Stamped & Formed Contacts)
Part Number
A114017
A114017-SR
AT13-217-1605
AT13-217-1605-SR
Description
Sealing Plug, Size 16, White
Sealing Plug, Size 16, SR01 Series, Black
Locking Sealing Plug, Size 16, Grey
Locking Sealing Plug, Size 16, SR01 Series, Red
