REVISIONS
REV
30.8±0.6
ECO
A3
A4
DESCRIPTION
DATE
BY
RELEASE NEW DWG FORMAT
19NOV13
DRP
UPDATE
20MAY16
JONY
TOMMY
ADD COLOR OPTION
23NOV20
LOUIE
TOMMY
C0540S
A5
APPR
TITLE:
6
REDUCED DIAMETER SEAL
REQUIRES CONTACT
RETENTION WEDGE AW2S
15.8
STANDARD COLOR IS GREY,
ADDITION COLOR SHOWN IN
PART NUMBER CHART
NOTES: UNLESS OTHERWISE SPECIFIED
DWG NO:
1. MATERIAL:
HOUSING: THERMOPLASTIC
SEAL: SILICONE RUBBER
2. MODIFICATIONS: END CAP;
REDUCED DIA. WIRE SEAL
15.1
PART NUMBER
GREY
AT06-2S-MM01
BLACK
AT06-2S-MM01BLK
BLUE
AT06-2S-MM01BLU
BROWN
AT06-2S-MM01BRN
GREEN
AT06-2S-MM01GRN
RED
AT06-2S-MM01RED
SEE PART NUMBER CHART
PART NUMBER
REF: DT06-2S-CE01，DT06-2S-CE03，DT06-2S-CE05
DESCRIPTION
QUANTITY
DRAWN:
CHECKED:
X
6 CONTACT SIZE AND REAR SEAL WIRE RANGE:
OF:
5. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.
SH:
4. MATING PART: AT04-2P* RECEPTACLE
( * = MODIFICATIONS AND COLORS )
STANDARD MOLDED COLOR IS GREY.
ADDITIONAL COLORS SHOWN IN PART NUMBER
CHART ARE AVAILABLE VIA SPECIAL ORDER.
PART NUMBER CHART
COLOR
REV:
3. SPECIFICATIONS:
3.1 CURRENT RATING: 13 AMPS
3.2 OPERATING TEMPERATURE: -55°C TO +125°C
3.3 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2
MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC.
3.4 INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 25°C.
3.5 MOISTURE RESISTANCE:
IP68(1M OF WATER FOR A PERIOD OF 24 HOURS, MATED CONDITION)
IP69K(MATED CONDITION)
3.6 MATING CYCLE DURABILITY: 100 CYCLES
3.7 RoHS COMPLIANT
Sine Systems - www.sineco.com
44724 Morley Drive
Clinton Township, MI 48036
ENGINEER:
WHITE
AT06-2S-MM01WHT
YELLOW
AT06-2S-MM01YEL
CUSTOMER:
AT06-2S-MM01ORG
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
APPROVAL:
MATERIAL SPECIFICATIONS:
CONTACT MIN. INSUL MAX. INSUL
TYPICAL
SIZE
O.D.
O.D.
WIRE RANGE
16
1.35 mm
(.053 in)
3.05 mm
(.120 in)
ORANGE
PROCESS SPECIFICATIONS:
14 - 20 AWG
(2.0-0.5mm²)

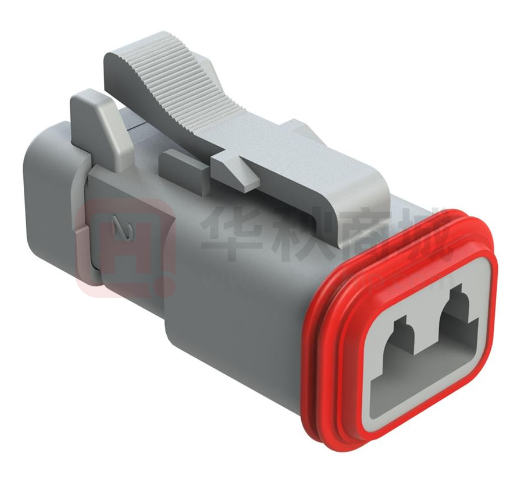

PLUG, 2 SOCKET, AT SERIES, END CAP,
REDUCED DIAMETER WIRE SEAL
TYPE
DWG NO:
B
NEXT ASS'Y:
NONE
A5
SHEET
1
OF
1
A Series™ - Contact Size 16 Options (Works with: AT, ATV, AHD-9, ARC, DuraMate and PanelMate Series)
Stamped & Formed Contacts, Sockets & Pins
Machined Contacts, Sockets & Pins
Size
AWG
Type
AT60-215-1631
Male Contact - Pin, Gold-plated
16
14
Machined
AT60-14-0122
Male Contact - Pin, Nickel-plated
16
14-18
Stamped & Formed
Part Number
Description
Size
AWG
Type
Part Number
Description
AT62-209-1631
Female Contact - Socket, Gold-plated
16
14
Machined
AT62-14-0122
Female Contact - Socket, Nickel-plated
16
14-18
Stamped & Formed
AT60-215-16141
Male Contact - Pin, Nickel-plated
16
14
Machined
AT60-14-0144
Male Contact - Pin, Gold-plated
16
14-18
Stamped & Formed
AT62-209-16141
Female Contact - Socket, Nickel-plated
16
14
Machined
AT62-14-0144
Female Contact - Socket, Gold-plated
16
14-18
Stamped & Formed
AT60-202-1631
Male Contact - Pin, Gold-plated
16
16-20
Machined
AT60-16-0122
Male Contact - Pin, Nickel-plated
16
16-18
Stamped & Formed
Machined
AT62-16-0122
Female Contact - Socket, Nickel-plated
16
16-18
Stamped & Formed
Male Contact - Pin, Gold-plated
16
16-18
Stamped & Formed
AT62-201-1631
Female Contact - Socket, Gold-plated
16
16-20
AT60-202-16141
Male Contact - Pin, Nickel-plated
16
16-20
Machined
AT60-16-0144
AT62-201-16141
Female Contact - Socket, Nickel-plated
16
16-20
Machined
AT62-16-0144
Female Contact - Socket, Gold-plated
16
16-18
Stamped & Formed
AT60-202-1631-22
Male Contact - Pin, Gold-plated
16
22-24
Machined
AT60-16-0622
Male Contact - Pin, Nickel-plated
16
16-20
Stamped & Formed
AT62-201-1631-22
Female Contact - Socket, Gold-plated
16
22-24
Machined
AT62-16-0622
Female Contact - Socket, Nickel-plated
16
16-20
Stamped & Formed
AT60-202-16141-22
Male Contact - Pin, Nickel-plated
16
22-24
Machined
AT60-16-0644
Male Contact - Pin, Gold-plated
16
16-20
Stamped & Formed
AT62-201-16141-22
Female Contact - Socket, Nickel-plated
16
22-24
Machined
AT62-16-0644
Female Contact - Socket, Gold-plated
16
16-20
Stamped & Formed
AT60-16-0677
Male Contact - Pin, Tin-plated
16
16-20
Stamped & Formed
AT62-16-0677
Female Contact - Socket, Tin-plated
16
16-20
Stamped & Formed
Description
AT60-16-0822
Male Contact - Pin, Nickel-plated
16
20-22
Stamped & Formed
AUTK-16
Hand Crimp Tool, Size 16
AT62-16-0822
Female Contact - Socket, Nickel-plated
16
20-22
Stamped & Formed
AUTK-100
Universal Heavy Duty Contact Crimping Tool Kit, Size 12/16/20
AT60-16-0844
Male Contact - Pin, Gold-plated
16
20-22
Stamped & Formed
CA-5D12
Universal Hand Crimp Tool, Size 12/16/20
AT62-16-0844
Female Contact - Socket, Gold-plated
16
20-22
Stamped & Formed
CA-5E12
Pneumatic Crimp Tool, Size 12/16/20
Tooling - Machined Contacts
Part Number
Tooling - Stamped & Formed Contacts
Contact Removal Tools (For both Machined or Stamped & Formed Contacts)
Part Number
ATRT-100
AT11-310-1605
Description
MFX-3950
Crimp Die - Size 16, 18-20AWG
MFX-3953
Crimp Die - Size 16, 16-18AWG
MFX-3975
Crimp Die - Size 16, 14-16AWG
MFX-3990
Crimp Die - Size 16, 20-22AWG
ATT-16-00
Hand Crimp Tool - Size 16, 14-16AWG
ATT-16-01
Hand Crimp Tool - Size 16, 18-20AWG
ATT-1612-03
Hand Crimp Tool - Size 16, 20-22AWG
Contact and Wedgelock Extraction Tool
Contact Removal Tool, Plastic, Size 16
Sealing Plugs (For both Machined or Stamped & Formed Contacts)
Part Number
A114017
A114017-SR
AT13-217-1605
AT13-217-1605-SR
Description
Sealing Plug, Size 16, White
Sealing Plug, Size 16, SR01 Series, Black
Locking Sealing Plug, Size 16, Grey
Locking Sealing Plug, Size 16, SR01 Series, Red
Amphenol Sine Systems 44724 Morley Drive, Clinton Township, MI 48036 USA www.amphenol-sine.com 10-2023
