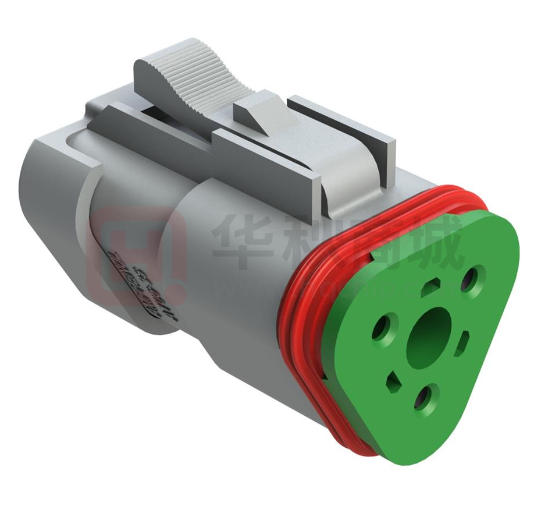

AT06-3S-SS01

REVISIONS REV 31.4±0.6 ECO A3 DESCRIPTION RELEASE NEW DWG FORMAT DATE BY 03/JAN/14 ORION JONY APPR A4 C0548S ADD WEDGELOCK AND UPDATE DIMENSIONS 26JUN16 A5 C0540S UPDATE DIMENSIONS 10OCT16 JONY TOMMY ADD COLOR OPTION 23NOV20 LOUIE TOMMY A6 TITLE: 19.3 STANDARD COLOR IS GREY, ADDITION COLOR SHOWN IN PART NUMBER CHART DWG NO: REFER TO PART NUMBER CHART FOR AVAILABLE CONNECTOR COLORS NOTES: UNLESS OTHERWISE SPECIFIED 1. MATERIAL: HOUSING: THERMOPLASTIC SEAL: SILICONE RUBBER WEDGELOCK: THERMOPLASTIC 19.0 2. MODIFICATIONS: BLOCKED GROMMET WEDGELOCK REV: PART NUMBER CHART COLOR SH: PART NUMBER GREY AT06-3S-SS01 BLACK AT06-3S-SS01BLK BLUE AT06-3S-SS01BLU BROWN AT06-3S-SS01BRN 4. MATING PART: AT04-3P* RECEPTACLE ( * = MODIFICATIONS AND COLORS ) GREEN AT06-3S-SS01GRN RED AT06-3S-SS01RED 5. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY. WHITE AT06-3S-SS01WHT YELLOW AT06-3S-SS01YEL ORANGE AT06-3S-SS01ORG SEE PART NUMBER CHART PART NUMBER OF: 3. SPECIFICATIONS: 3.1 CURRENT RATING: 13 AMPS 3.2 OPERATING TEMPERATURE: -55°C TO +125°C 3.3 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2 MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC. 3.4 INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 25°C. 3.5 MOISTURE RESISTANCE: IP68(1M OF WATER FOR A PERIOD OF 24 HOURS, MATED CONDITION) IP69K(MATED CONDITION) 3.6 MATING CYCLE DURABILITY: 100 CYCLES 3.7 RoHS COMPLIANT REF: DT06-3S-CP01，DT06-3S-C017 DESCRIPTION QUANTITY DRAWN: CHECKED: X Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: APPROVAL: MATERIAL SPECIFICATIONS: PLUG, 3 SOCKET, AT SERIES, BLOCKED GROMMET CUSTOMER: PROCESS SPECIFICATIONS: THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. TYPE DWG NO: B NEXT ASS'Y: NONE A6 SHEET 1 OF 1
