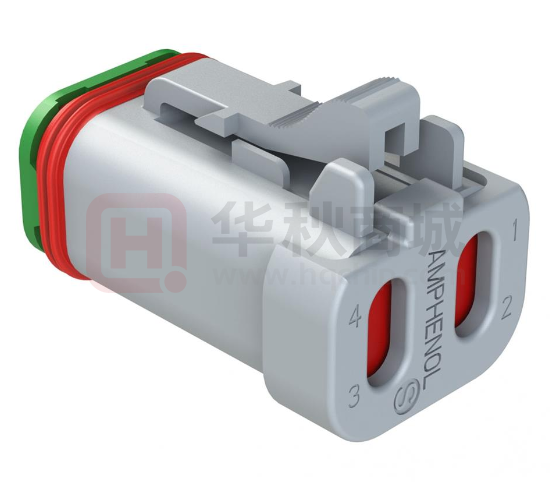

AT06-4S-SS01

REVISIONS REV 34.4±0.6 ECO A3 DESCRIPTION RELEASE NEW DWG FORMAT DATE BY 03/JAN/14 ORION JONY APPR A4 C0548S ADD WEDGELOCK AND UPDATE DIMENSIONS 26JUN16 A5 C0540S UPDATE DIMENSIONS 10OCT16 JONY TOMMY ADD COLOR OPTION 28NOV20 LOUIE TOMMY A6 TITLE: 19.8 WEDGELOCK DWG NO: NOTES: UNLESS OTHERWISE SPECIFIED 1. MATERIAL: HOUSING: THERMOPLASTIC SEAL: SILICONE RUBBER WEDGELOCK: THERMOPLASTIC 20.9 2. MODIFICATIONS: BLOCKED GROMMET COLOR STANDARD COLOR IS GREY, ADDITION COLOR SHOWN IN PART NUMBER CHART PART NUMBER GREY AT06-4S-SS01 BLACK AT06-4S-SS01BLK BLUE AT06-4S-SS01BLU BROWN AT06-4S-SS01BRN GREEN AT06-4S-SS01GRN RED AT06-4S-SS01RED SEE PART NUMBER CHART PART NUMBER OF: 5. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY. PART NUMBER CHART SH: 4. MATING PART: AT04-4P* RECEPTACLE ( * = MODIFICATIONS AND COLORS ) REFER TO PART NUMBER CHART FOR AVAILABLE CONNECTOR COLORS REV: 3. SPECIFICATIONS: 3.1 CURRENT RATING: 13 AMPS 3.2 OPERATING TEMPERATURE: -55°C TO +125°C 3.3 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2 MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC. 3.4 INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 25°C. 3.5 MOISTURE RESISTANCE: IP68(1M OF WATER FOR A PERIOD OF 24 HOURS, MATED CONDITION) IP69K(MATED CONDITION) 3.6 MATING CYCLE DURABILITY: 100 CYCLES 3.7 RoHS COMPLIANT REF: DT06-4S-CP01，DT06-4S-C017 DESCRIPTION QUANTITY DRAWN: CHECKED: X Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: WHITE AT06-4S-SS01WHT YELLOW AT06-4S-SS01YEL CUSTOMER: AT06-4S-SS01ORG THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. APPROVAL: MATERIAL SPECIFICATIONS: ORANGE PROCESS SPECIFICATIONS: PLUG, 4 SOCKET, AT SERIES, BLOCKED GROMMET TYPE DWG NO: B NEXT ASS'Y: A6 NONE SHEET 1 OF 1
