AT11-030-0205

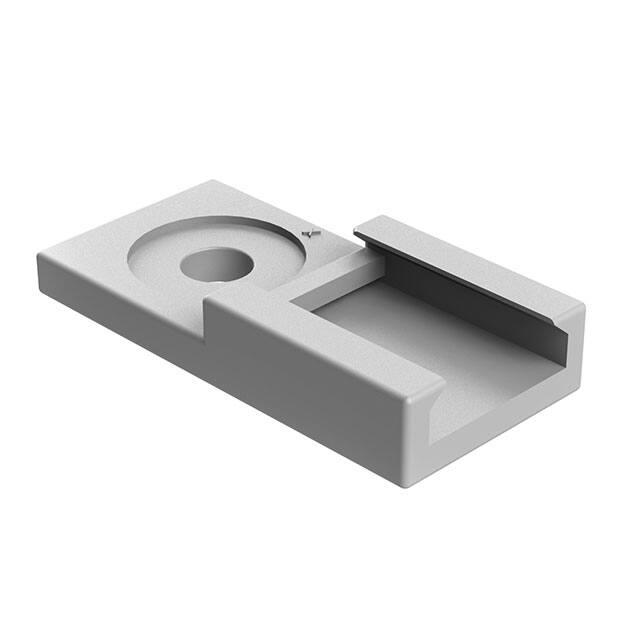

TITLE: MOUNTING CLIP,AT,ATM,ATP,PLASTIC,BLK AT11-030-0205 DWG NO: REV: A1 SH: 1 OF: 1 REVISIONS REV A1 3.4 ECO DESCRIPTION RELEASE NEW DRAWING -- DATE BY APPR 05/JUL/19 JOE TOMMY 6.6 OUTLINE OF T-STUD IN SNAPPED POSITION MOUNTING CLIP SHOWN MOUNTED TO RECEPTACLE T-STUD (SEE DETAIL) Ø6.4 Ø3.4 5.1 17.0 3.2 1.0 3.6 T-STUD DETAIL 35.6 NOTES: UNLESS OTHERWISE SPECIFIED 1. MATERIAL: THERMOPLASTIC; COLOR: BLACK 2. RoHS COMPLIANT 3. USE WITH CONNECTORS A.AT04-2P*/3P*/4P*/6P*/12P* B.ATM04-2P*~12P* C.ATP04-2P*/4P* D.ATV04-* E.ATHD04-* ( * = MODIFICATIONS AND/OR COLORS ) REF: 011-030-0205 AT11-030-0205 DESCRIPTION PART NUMBER MATERIALS LIST QUANTITY UNLESS OTHERWISE SPECIFIED 1) All dimensions are in metric(mm). 2) Tolerances are as follows: 1 PL DEC ±0.30 Fractions ±1/64 2 PL DEC ±0.15 Angles ±1° 3 PL DEC ±0.08 3) Note reference = X SIGNATURES DRAWN: CHECKED: 05/JUL/19 05/JUL/19 TOMMY.XIE 05/JUL/19 Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: APPROVAL: MATERIAL SPECIFICATIONS: CUSTOMER: PROCESS SPECIFICATIONS: Amphenol DATE JOE.SONG ORION.LI MOUNTING CLIP,AT,ATM,ATP,PLASTIC,BLK THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. TYPE A C- 4. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY. NEXT ASS'Y: ITEM NONE DWG NO: REVISION AT11-030-0205 SHEET A1 1 OF 1
