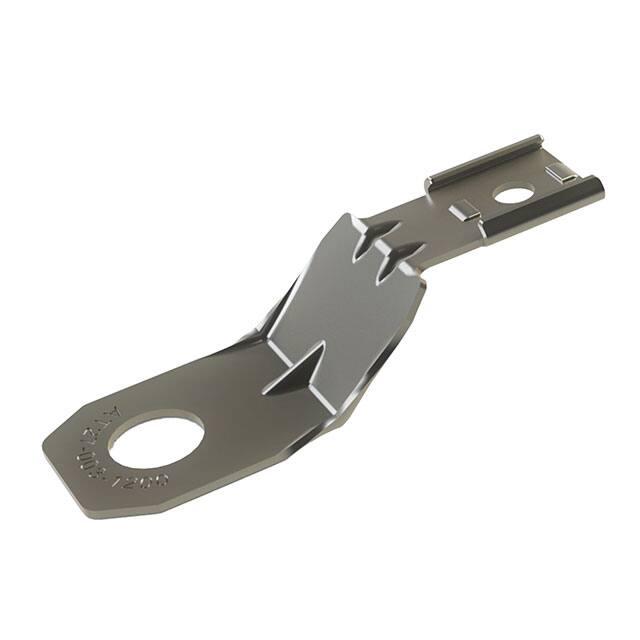

AT27-003-1200

REVISIONS 66.9 REV ECO A1 - DESCRIPTION RELEASE NEW DRAWING DATE BY 22/MAR/19 APPR ROOKIE TOMMY 15.4 23.1 15.2 TITLE: MOUNTING CLIP,AT,METAL 4 11.4 12.7 DWG NO: 1.0 AT27-00X-1200 30.3 43.3 REV: A1 SH: 1 REF: 1027-003-1200, 1027-004-1200, 1027-005-1200 SEE TABLE DESCRIPTION PART NUMBER MATERIALS LIST QUANTITY UNLESS OTHERWISE SPECIFIED 1) All dimensions are in metric(mm). 2) Tolerances are as follows: 1 PL DEC ±0.30 Fractions ±1/64 2 PL DEC ±0.15 Angles ±1° 3 PL DEC ±0.08 4. PART INFORMATION: 3) Note reference = PART NUMBER MATERIAL HOLE DIAMETER AT27-003-1200 STAINLESS STEEL 11mm 2. RoHS COMPLIANT AT27-004-1200 STEEL-ZINC PLATED 13mm 3. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY. AT27-005-1200 13mm STAINLESS STEEL X SIGNATURES DRAWN: CHECKED: DATE ROOKIE ORION 22/MAR/19 22/MAR/19 TOMMY 22/MAR/19 SINE Systems Corporation A Subsidiary of Amphenol Corporation 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: APPROVAL: MATERIAL SPECIFICATIONS: CUSTOMER: PROCESS SPECIFICATIONS: MOUNTING CLIP,A SERIES,METAL THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. B NEXT ASS'Y: ITEM FSCM NO. DWG NO: - NONE REVISION AT27-00X-1200 SHEET A1 1 OF 1 1 1. USE WITH CONNECTORS A. AT04-2/3/4/6/12P* B. ATM04-2/3/4/6/8/12P* C. ATP04-2/4P* D. ATV04-* E. ATHD04-* ( * = MODIFICATIONS AND/OR COLORS ) OF: NOTES: UNLESS OTHERWISE SPECIFIED
