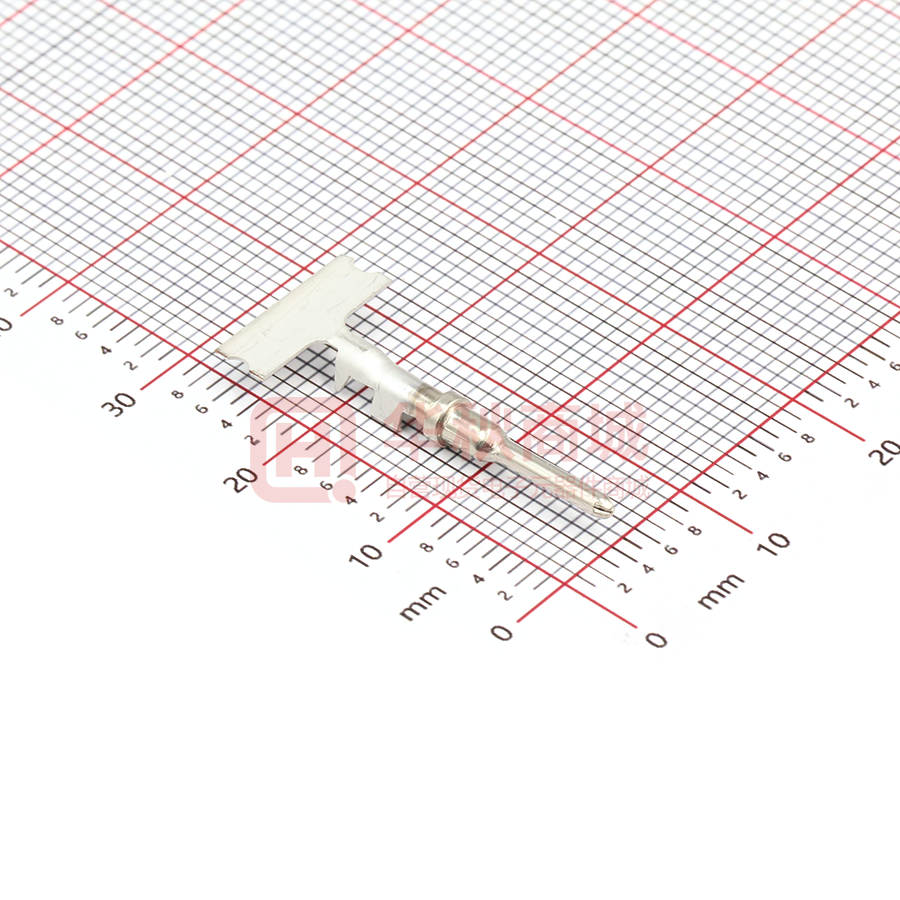

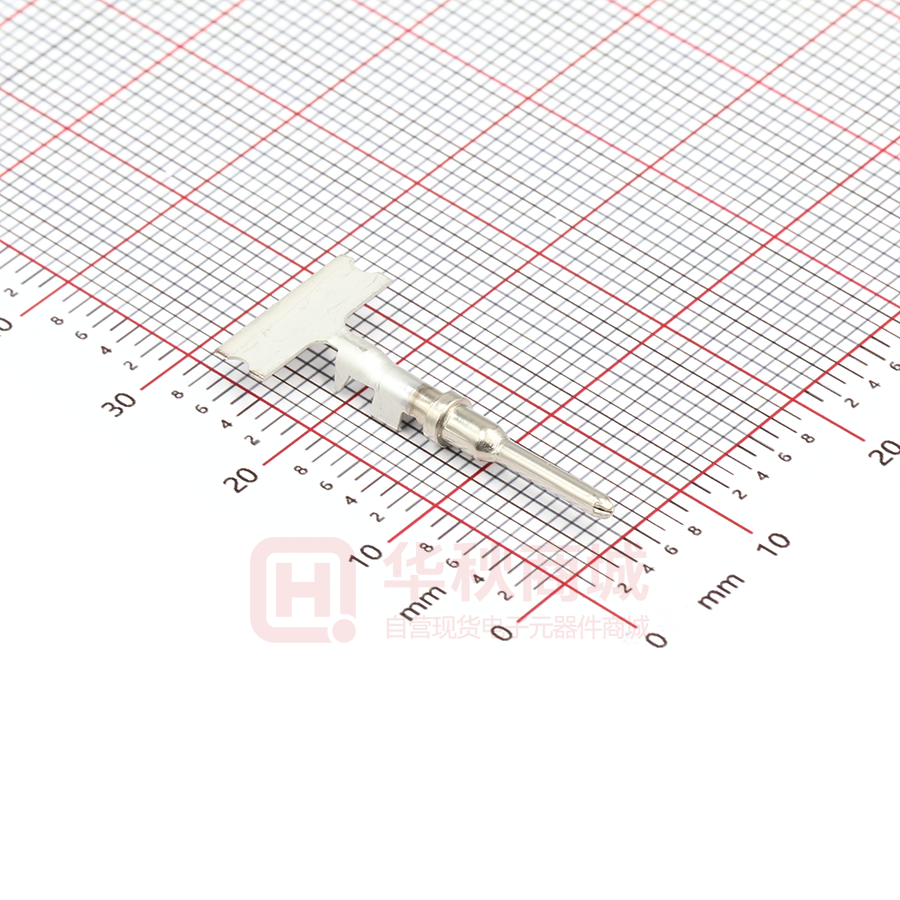

AT60-16-0622

REVISIONS 6.35 TYP Ø2.5 12.7 REV ECO DESCRIPTION DATE BY APPR A3 -- RELEASE NEW DWG FORMAT 21OCT13 DRP - A4 C1070S JOE TOMMY A5 C1298S UPDATE PLATING 14/SEP/20 SULLEN TOMMY A6 -- UPDATE THE WIRE GAGE 09/OCT/23 LUCAS CARRIER STRIP ID: 0.5-1.0 0.3 UPDATE DRAWING 21/JUN/19 TOMMY 4.7 TITLE: A A B A 13.4±1.5 B Ø3.3 22±0.7 DWG NO: 3.4 3.8 B 5.5 MIN. 2.9 2.8 Ø1.55 NOTES: UNLESS OTHERWISE SPECIFIED A-A B-B SECTION SCALE - 2:1 2. PLATING: SEE PART NUMBER CHART REV: 1. MATERIAL: COPPER ALLOY SECTION SCALE - 2:1 SH: 3. CONTACT SIZE: 16 5. RECOMMENDED WIRE RANGE: 16 - 20 AWG (1.0 - 0.5mm²) RECOMMENDED INSUL O.D: 1.40 - 2.54MM (0.055 - 0.1 INCH) 6. PACKAGE: 4000 PCS/REEL 7. AVAILABLE APPLICATORS: MFX-3950-K OR MFX-3950-G SEE PART NUMBER CHART PART NUMBER OF: 4. SPECIFICATIONS: 4.1 CURRENT RATING: 13 AMPS 4.2 CONTACT MILLIVOLT DROP: 100 MILLIVOLT DROP @ 13 AMP TEST CURRENT. 4.3 RoHS COMPLIANT REF: 1060-16-0622, 1060-16-0644, 1060-16-0677 DESCRIPTION QUANTITY PART NUMBER CHART DRAWN: PLATING PART NUMBER NICKEL AT60-16-0622 PLATING DESCRIPTION SELECTIVE TIN OVER NICKEL OVERALL IN A ZONE GOLD AT60-16-0644 SELECTIVE GOLD FLASH OVER NICKEL OVERALL IN B ZONE OR ENTIRE CONTACT TIN AT60-16-0677 TIN OVER NICKEL OVERALL 8. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY CHECKED: X Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: APPROVAL: MATERIAL SPECIFICATIONS: CONTACT, PIN, STAMPED, SIZE 16, 16-20 AWG, A SERIES CUSTOMER: PROCESS SPECIFICATIONS: THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. B NEXT ASS'Y: TYPE NONE DWG NO: A6 SHEET 1 OF 1
