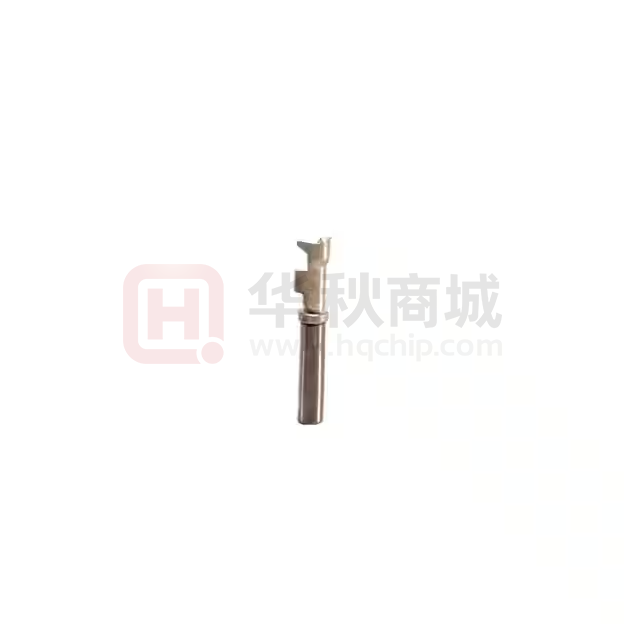

AT62-16-0122

REVISIONS Ø2.5 12.7 REV ECO DESCRIPTION DATE BY A3 - RELEASE NEW DWG FORMAT 21/OCT/13 DRP APPR - A4 C0405S UPDATE DRAWING 21/JUL/15 JARRY TOMMY A5 C1070S UPDATE DRAWING 28/JUN/19 JOE TOMMY B1 C1298S UPDATE PLATING 14/SEP/20 SULLEN TOMMY CARRIER STRIP ID: 16-18 6.35 TYP 0.3 TITLE: 4.7 A A 13.4±1.5 A B B Ø3.3 20.2±0.7 DWG NO: Ø2.8 B 2.5 MIN. 4.0 4.5 3.2 3.4 NOTES: UNLESS OTHERWISE SPECIFIED SECTION A-A SECTION B-B REV: 1. MATERIAL: COPPER ALLOY 2. PLATING: SEE PART NUMBER CHART SH: 3. CONTACT SIZE: 16 SEE PART NUMBER CHART PART NUMBER REF: 1062-16-0122, 1062-16-0144, 1062-16-0177 DESCRIPTION QUANTITY PART NUMBER CHART 5. RECOMMENDED WIRE RANGE: 16 - 18 AWG (1.5 - 0.75mm²) PART NUMBER PLATING DESCRIPTION PLATING CUSTOMER OPTIONAL WIRE RANGE: 14 AWG (2.0mm²) RECOMMENDED INSUL O.D: 1.91 - 3.55MM (0.075 - 0.140INCH) SELECTIVE TIN OVER NICKEL OVERALL AT62-16-0122 NICKEL IN A ZONE 6. PACKAGE: 4000 PCS/REEL SELECTIVE GOLD FLASH OVER NICKEL AT62-16-0144 GOLD 7. AVAILABLE APPLICATORS: MFX-3953-K OR MFX-3953-G OVERALL IN B ZONE OR ENTIRE CONTACT 8. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY OF: 4. SPECIFICATIONS: 4.1 CURRENT RATING: 13 AMPS 4.2 CONTACT MILLIVOLT DROP: 100 MILLIVOLT DROP @ 13 AMP TEST CURRENT. 4.3 RoHS COMPLIANT TIN AT62-16-0177 DRAWN: CHECKED: X Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: APPROVAL: MATERIAL SPECIFICATIONS: CONTACT, SOCKET, STAMPED, SIZE 16, 16-18 AWG, A SERIES CUSTOMER: PROCESS SPECIFICATIONS: THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. TYPE DWG NO: B TIN OVER NICKEL OVERALL NEXT ASS'Y: NONE B1 SHEET 1 OF 1
