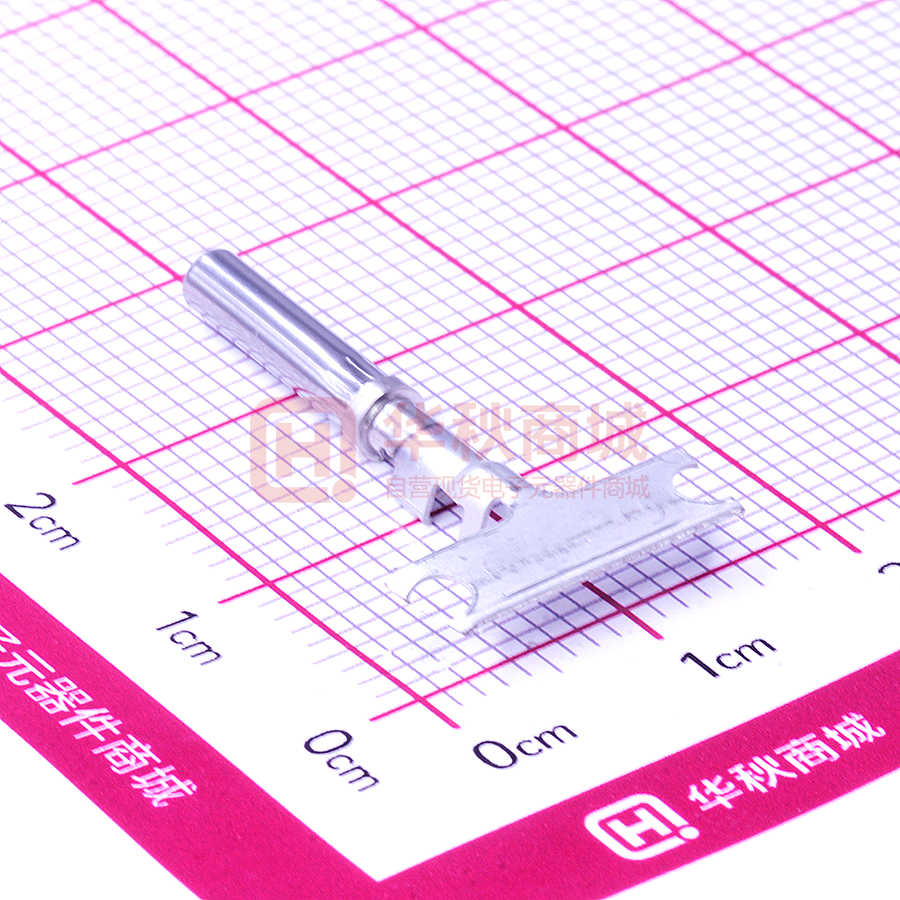

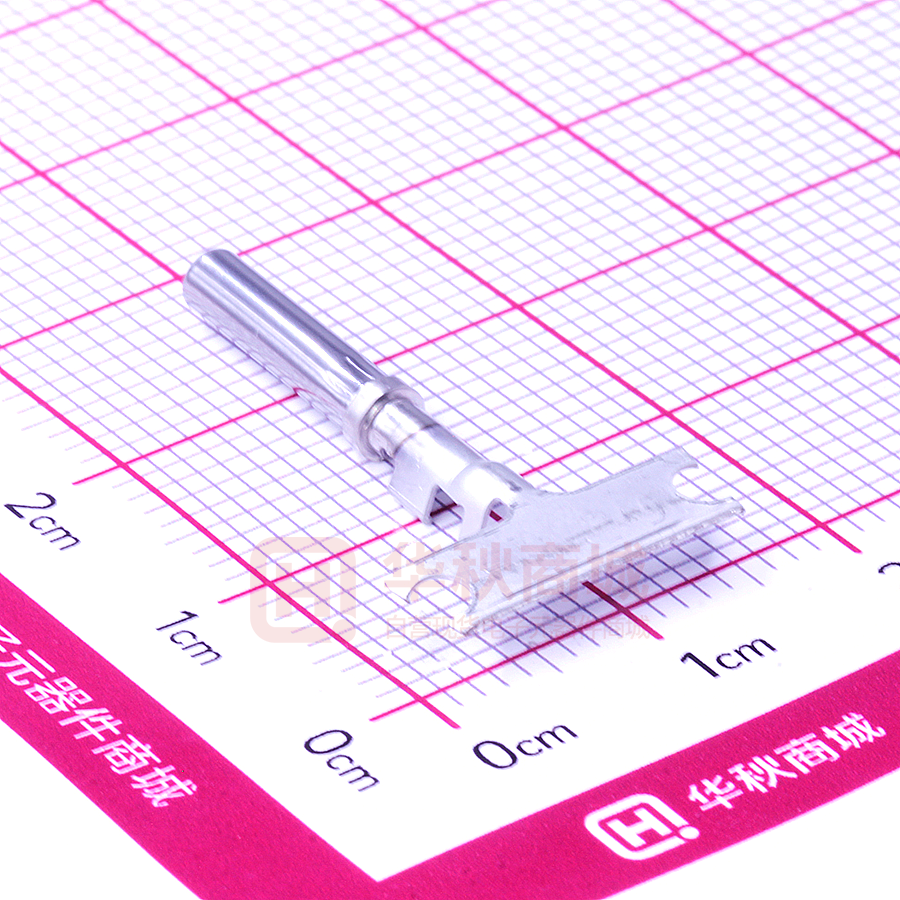

AT62-16-0622

REVISIONS 6.35 TYP Ø2.5 12.7 REV ECO A3 - RELEASE NEW DWG FORMAT A4 C1070S UPDATE DRAWING 28/JUN/19 A5 C1298S UPDATE PLATING 14/SEP/20 SULLEN TOMMY A6 - UPDATE THE WIRE GAGE 09/OCT/23 LUCAS CARRIER STRIP ID: 0.5-1.0 0.3 DESCRIPTION DATE BY APPR 21/OCT/13 DRP - JOE TOMMY TOMMY 4.7 TITLE: A A B B A 13.4±1.5 20.2±0.7 Ø3.3 Ø2.8 B 2.5 MIN. DWG NO: 3.8 3.4 2.8 2.9 NOTES: UNLESS OTHERWISE SPECIFIED B-B SECTION SCALE - 2:1 SECTION SCALE - 2:1 SH: 2. PLATING: SEE PART NUMBER CHART REV: A-A 1. MATERIAL: COPPER ALLOY 3. CONTACT SIZE: 16 5. RECOMMENDED WIRE RANGE: 16 - 20 AWG (1.0 - 0.5mm²) RECOMMENDED INSUL O.D: 1.40 - 2.54MM (0.055 - 0.1 INCH) 6. PACKAGE: 4000 PCS/REEL 7. AVAILABLE APPLICATORS: MFX-3950-K OR MFX-3950-G SEE PART NUMBER CHART PART NUMBER PART NUMBER CHART PLATING PART NUMBER NICKEL GOLD TIN AT62-16-0622 AT62-16-0644 AT62-16-0677 DESCRIPTION DRAWN: SELECTIVE TIN OVER NICKEL OVERALL IN A ZONE TIN OVER NICKEL OVERALL REF: 1062-16-0622, 1062-16-0644, 1062-16-0677 QUANTITY PLATING DESCRIPTION SELECTIVE GOLD FLASH OVER NICKEL OVERALL IN B ZONE OR ENTIRE CONTACT OF: 4. SPECIFICATIONS: 4.1 CURRENT RATING: 13 AMPS 4.2 CONTACT MILLIVOLT DROP: 100 MILLIVOLT DROP @ 13 AMP TEST CURRENT. 4.3 RoHS COMPLIANT CHECKED: X Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: APPROVAL: MATERIAL SPECIFICATIONS: CONTACT, SOCKET, STAMPED, SIZE 16, 16-20 AWG, A SERIES CUSTOMER: PROCESS SPECIFICATIONS: THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. B 8. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY NEXT ASS'Y: TYPE NONE DWG NO: A6 SHEET 1 OF 1
