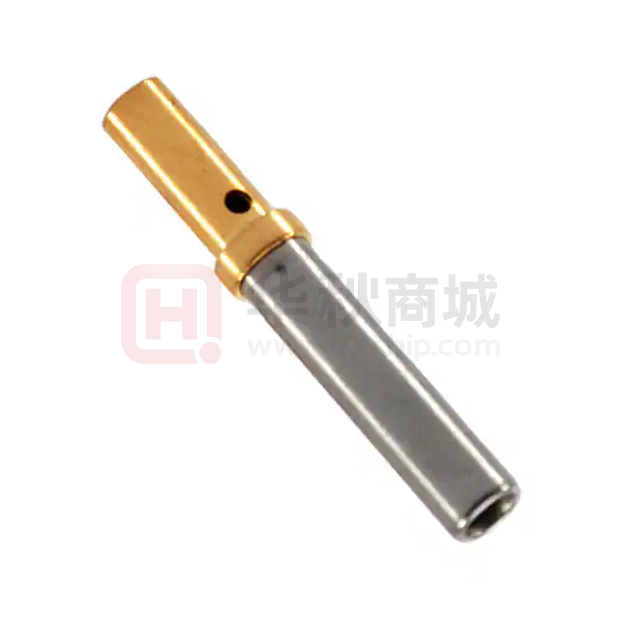

AT62-210-1231

TITLE: SOCKET, SOLID, SIZE 12, 12-14 AWG, ATP & AHD-6 SERIES AT62-210-1231 DWG NO: REV: A4 SH: 1 OF: 1 REVISIONS REV ECO A3 - A4 DESCRIPTION DATE BY APPR RELEASE NEW DRAWING FORMAT 08/OCT/13 JARRY MATCHED DIMS TO NEW TOOLING 28JAN15 JAH - 1.3 INSPECTION HOLE HOOD 6.4 ø4.8 ø2.7 ø3.9 ø4 CONTACT BODY 6.7 19.2 NOTES: UNLESS OTHERWISE SPECIFIED 1. MATERIAL: COPPER ALLOY; GOLD PLATED 2. CONTACT SIZE: 12 3. SPECIFICATIONS: 3.1 CURRENT RATING: 25 AMP 3.2 CONTACT MILLIVOLT DROP: 60 MILLIVOLT DROP @ 25 AMP TEST CURRENT. 3.3 ROHS COMPLIANT AT62-210-1231 DESCRIPTION PART NUMBER MATERIALS LIST QUANTITY UNLESS OTHERWISE SPECIFIED 1) All dimensions are in metric(mm). 2) Tolerances are as follows: 1 PL DEC ±0.30 Fractions ±1/64 2 PL DEC ±0.15 Angles ±1° 3 PL DEC ±0.08 3) Note reference = X SIGNATURES DRAWN: JARRY ITEM Amphenol DATE 08/OCT/13 CHECKED: Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: APPROVAL: MATERIAL SPECIFICATIONS: CUSTOMER: 4. RECOMMENDED WIRE RANGE: 12 - 14 AWG 5. AVAILABLE HAND CRIMPER: CA-5D12 6. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY PROCESS SPECIFICATIONS: THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. CONTACT, SOCKET, SOLID, SIZE 12, 12-14 AWG, ATP & AHD-6 SERIES TYPE A C- NEXT ASS'Y: NONE DWG NO: REVISION AT62-210-1231 SHEET A4 1 OF 1
