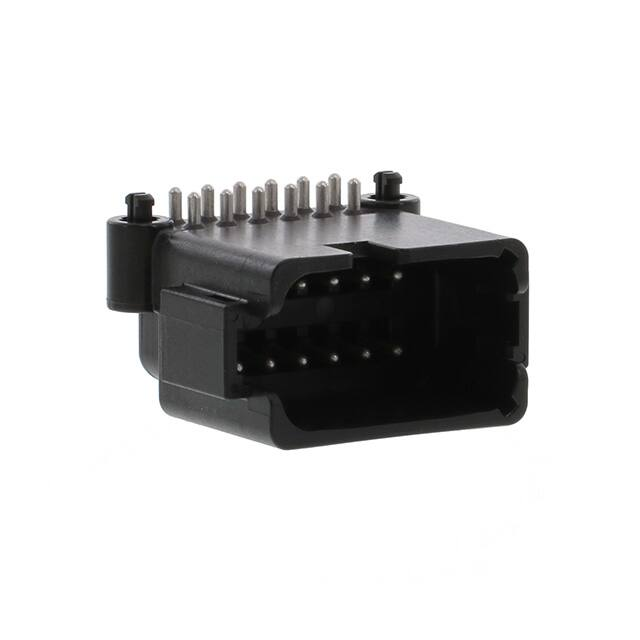

ATF13-12PB-BM03

REVISIONS REV ECO A1 - A2 A3 DESCRIPTION DATE BY RELEASE 02JUL2018 JAH - UPDATE DRAWING 25/MAR/19 - MODIFIED DESCRIPTION 12JUL19 BROOK APPR TOMMY BROOK TOMMY 41.6±0.50 TITLE: RIGHT ANGLE RECEPT, AT 12 PIN, SNAP FIT,BOARDLOCK 34.9 41.95±0.50 22.2 12x3.05±0.30 DWG NO: 12xØ1.57 0.74 1.70TYP ATF13-12PX-BM0X NOTES: UNLESS OTHERWISE SPECIFIED 34.29 22.10 1 SEE SHEET 2 FOR KEY ARRANGEMENTS AND COLORS. 12xØ1.70 13.26 4.42 2xØ3.30 REV: 2. MATERIAL: HOUSING: THERMOPLASTIC; COLOR: SEE SHEET 2 CONTACT: COPPER ALLOY PLATING: NICKEL UNDERPLATE SEE CHART FOR OVERALL FINISH A3 4.42 RECOMMENDED PCB LAYOUT 34.29±0.3 22.10±0.25 13.26 4.42 UNLESS OTHERWISE SPECIFIED 4.42 30.4 1) 2) 1 2 3 All dimensions are in metric(mm). Tolerances are as follows: PL DEC ±0.30 Fractions ±1/64 PL DEC ±0.15 Angles ±1° PL DEC ±0.08 3) Note reference = X SIGNATURES DRAWN: CHECKED: 12/JUL/19 12/JUL/19 TOMMY.XIE 12/JUL/19 Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: APPROVAL: MATERIAL SPECIFICATIONS: PROCESS SPECIFICATIONS: Amphenol DATE BROOK.DING ORION.LI RIGHT ANGLE RECEPTACLE, AT 12 PIN, SNAP FIT,BOARDLOCK THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. TYPE B C- NEXT ASS'Y: ITEM NONE DWG NO: REVISION ATF13-12PX-BM0X SHEET 1 A3 OF 1 2 6. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY. OF: REF: DTF13-12PA, DTF13-12PB, DTF13-12PC, DTF13-12PD, DTF13-12PA-G003 SEE PART NUMBER CHART PART NUMBER DESCRIPTION QUANTITY MATERIALS LIST CUSTOMER: 5. MATING PART: AT06-12SX* PLUG ( X = A,B,C,D KEYS; * = MODIFICATIONS AND COLORS ) 1 4. SPECIFICATIONS: 4.1 CURRENT RATING: 13 AMPS 4.2 OPERATING TEMPERATURE: -55°C TO +125°C 4.3 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2 MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC. 4.4 INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 25°C. 4.5 MOISTURE RESISTANCE: IP67 ( MATED CONDITION ) 4.6 MATING CYCLE DURABILITY: 100 CYCLES 4.7 RoHS COMPLIANT SH: 3. MODIFICATIONS: RIGHT ANGLE PCB MOUNT, SNAP FIT REVISIONS P/N ATF13-12PA-BM0X KEY-A CONFIGURATION STANDARD COLOR: GREY P/N ATF13-12PB-BM0X KEY-B CONFIGURATION STANDARD COLOR: BLACK REV ECO A1 - A2 A3 DESCRIPTION DATE BY RELEASE 02JUL2018 JAH - UPDATE DRAWING 25/MAR/19 - MODIFIED DESCRIPTION 12JUL19 P/N ATF13-12PD-BM0X KEY-D CONFIGURATION STANDARD COLOR: BROWN KEYWAY (3)PLACES KEYWAY (3)PLACES TOMMY BROOK TOMMY TITLE: P/N ATF13-12PC-BM0X KEY-C CONFIGURATION STANDARD COLOR: GREEN BROOK APPR KEYWAY (3)PLACES RIGHT ANGLE RECEPT, AT 12 PIN, SNAP FIT,BOARDLOCK KEYWAY (3)PLACES DWG NO: ATF13-12PB-BM0X VARIANTS ATF13-12PC-BM0X VARIANTS ATF13-12PD-BM0X VARIANTS PART NUMBER CONTACT PLATING PART NUMBER CONTACT PLATING PART NUMBER CONTACT PLATING GOLD ATF13-12PA-BM01 GOLD ATF13-12PB-BM01 GOLD ATF13-12PC-BM01 GOLD ATF13-12PD-BM01 TIN ATF13-12PA-BM03 TIN ATF13-12PB-BM03 TIN ATF13-12PC-BM03 TIN ATF13-12PD-BM03 ATF13-12PX-BM0X ATF13-12PA-BM0X VARIANTS CONTACT PLATING REV: PART NUMBER A3 SH: 2 OF: UNLESS OTHERWISE SPECIFIED 1) 2) 1 2 3 All dimensions are in metric(mm). Tolerances are as follows: PL DEC ±0.30 Fractions ±1/64 PL DEC ±0.15 Angles ±1° PL DEC ±0.08 3) Note reference = X SIGNATURES DRAWN: CHECKED: 12/JUL/19 12/JUL/19 TOMMY.XIE 12/JUL/19 Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: APPROVAL: MATERIAL SPECIFICATIONS: CUSTOMER: PROCESS SPECIFICATIONS: Amphenol DATE BROOK.DING ORION.LI RIGHT ANGLE RECEPTACLE, AT 12 PIN, SNAP FIT,BOARDLOCK THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. TYPE B C- NEXT ASS'Y: ITEM NONE DWG NO: REVISION ATF13-12PX-BM0X SHEET 2 A3 OF 2 2 SEE PART NUMBER CHART PART NUMBER DESCRIPTION QUANTITY MATERIALS LIST
