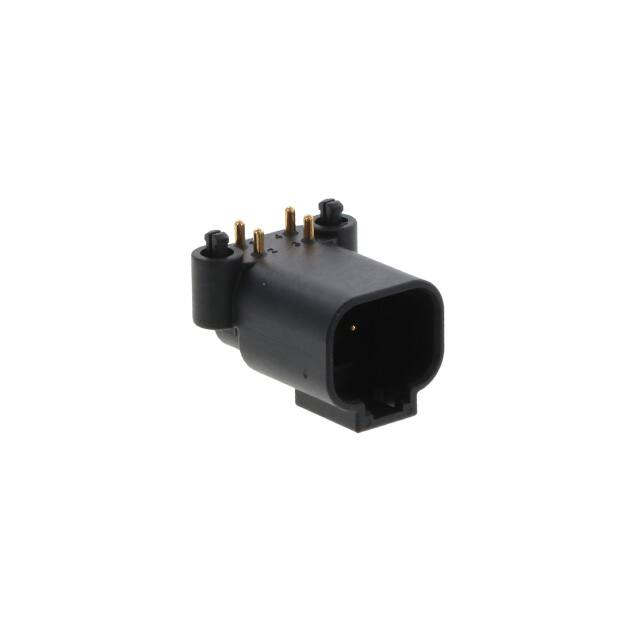

ATF13-4P-BM01

REVISIONS REV ECO A1 - A2 A3 DESCRIPTION DATE BY RELEASE 2JUL18 JAH APPR - UPDATE DRAWING 18/MAR/19 BROOK TOMMY - MODIFIED DESCRIPTION 12JUL19 BROOK TOMMY TITLE: RIGHT ANGLE RECEPT, AT 4 PIN, SNAP FIT,BOARDLOCK 28.5±0.5 30.2 20.5 4xØ1.57 DWG NO: 4x3.05±0.30 0.95 1.7TYP NOTES: UNLESS OTHERWISE SPECIFIED 2x Ø3.30 4.42 21.4 A3 20.83±0.25 9.10 1 25.7 SEE PART NUMBER CHART REF: DTF13-4P, DTF13-4P-G003 DESCRIPTION PART NUMBER QUANTITY MATERIALS LIST UNLESS OTHERWISE SPECIFIED ATF13-4P-BM0X VARIANTS CONTACT PLATING PART NUMBER GOLD ATF13-4P-BM01 TIN ATF13-4P-BM03 1) All dimensions are in metric(mm). 2) Tolerances are as follows: 1 PL DEC ±0.30 Fractions ±1/64 2 PL DEC ±0.15 Angles ±1° 3 PL DEC ±0.08 3) Note reference = X SIGNATURES DRAWN: CHECKED: 12/JUL/19 12/JUL/19 TOMMY.XIE 12/JUL/19 Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: APPROVAL: MATERIAL SPECIFICATIONS: CUSTOMER: PROCESS SPECIFICATIONS: Amphenol DATE BROOK.DING ORION.LI RIGHT ANGLE RECEPTACLE, AT 4 PIN, SNAP FIT, BOARDLOCK THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. TYPE B C- 5. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY. NEXT ASS'Y: ITEM NONE DWG NO: REVISION ATF13-4P-BM0X SHEET 1 A3 OF 1 1 4.42 OF: 4. MATING PART: AT06-4S* PLUG ( * = MODIFICATIONS AND COLORS ) SH: RECOMMENDED PCB LAYOUT 2. MODIFICATIONS: RIGHT ANGLE PCB MOUNT, SNAP FIT 3. SPECIFICATIONS: 3.1 CURRENT RATING: 13 AMPS 3.2 OPERATING TEMPERATURE: -55°C TO +125°C 3.3 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2 MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC. 3.4 INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 25°C. 3.5 MOISTURE RESISTANCE: IP67 ( MATED CONDITION ) 3.6 MATING CYCLE DURABILITY: 100 CYCLES 3.7 RoHS COMPLIANT 4x Ø1.70 REV: 1. MATERIAL: HOUSING: THERMOPLASTIC; COLOR: BLACK CONTACT: COPPER ALLOY PLATING: NICKEL UNDERPLATE SEE CHART FOR OVERALL FINISH 9.10 ATF13-4P-BM0X 20.83
