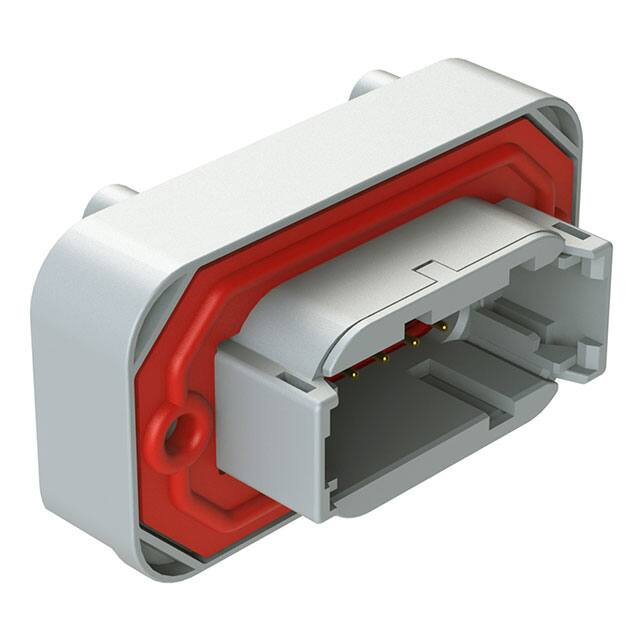

ATM13-12PA-BM01

REVISIONS REV ECO A1 - DESCRIPTION DATE RELEASE NEW DRAWING 15JUN18 BY APPR SULLEN TOMMY 61.0 49.5 38.2 40.0 2x Ø3.10 x 10.2 DP 25.3 8.0 TITLE: RECOMMENDED SCREW: 6-19 [M3.63 x 1.34] THREAD-FORMING SCREW, TORQUE: 10-20 IN-LB [1.13-2.25 NM] 33.1 20.2 PCB MOUNT RECEPTACLE 12PIN, RA FLANGE, ATM SERIES 18.1 3.05±0.4 4x R7.6 RESERVOIR 1.5 FLANGE SEAL 12x Ø1.0±0.12 3X KEYWAY 6 17.78±0.1 1.61±0.05 6.4 4.20±0.05 Ø1.20+0.2 (12x) 0 12.60±0.08 21.00±0.10 21.0 RECOMMENDED PCB LAYOUT A1 VIEW FROM COMPONENTS SIDE OF PCB 1) 2) 1 2 3 UNLESS OTHERWISE SPECIFIED 5. MATING PART: ATM06-12SX-* ( X = A,B,C,D KEYS ; * = MODIFICATIONS AND COLORS) All dimensions are in metric(mm). Tolerances are as follows: PL DEC ±0.30 Fractions ±1/64 PL DEC ±0.15 Angles ±1° PL DEC ±0.08 3) Note reference = X SIGNATURES DRAWN: CHECKED: Amphenol DATE SULLEN.ZHANG 15JUN18 ORION.LI 15JUN18 Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: APPROVAL: MATERIAL SPECIFICATIONS: TOMMY.XIE 15JUN18 CUSTOMER: 6. SEE SHEET 2 FOR OTHER KEY ARRANGEMENTS AND COLORS PROCESS SPECIFICATIONS: THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. PCB MOUNT RECEPTACLE 12PIN, RA FLANGE, ATM SERIES TYPE B C- 7. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY NEXT ASS'Y: ITEM NONE DWG NO: REVISION ATM13-12PX-BMXX A1 SHEET 1 OF 2 2 4. SPECIFICATIONS: 4.1 CURRENT RATING: 7.5 AMPS 4.2 OPERATING TEMPERATURE: -55°C TO +125°C 4.3 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2 MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC 4.4 INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 25°C 4.5 MOISTURE RESISTANCE: IP67 ( MATED CONDITION ) 4.6 MATING CYCLE DURABILITY: 100 CYCLES 4.7 RoHS COMPLIANT OF: QUANTITY 1 ATM13-12PX-BMXX DESCRIPTION PART NUMBER MATERIALS LIST 2. CONTACT PLATING: SEE SHEET 2 3. MODIFICATIONS: FLANGE; RA PCB MOUNT SH: 1. MATERIAL: HOUSING: THERMOPLASTIC, GREY SEAL: SILICONE RUBBER CONTACT: COPPER ALLOY 17.8 2x Ø2.79 x 10.9 DP RECOMMENDED SCREW: 4-20 [M3.12 x 1.27] THREAD-FORMING SCREW, TORQUE: 6-10 IN-LB [0.68-1.13 NM] REV: NOTES: UNLESS OTHERWISE SPECIFIED 12.6 12.70±0.10 ATM13-12PX-BMXX 4.2 PIN #1 6.35±0.10 12.7 DWG NO: Ø3.43 (2x) 10.2 REVISIONS 3X KEYWAY SLEEVE RETAINER: BLACK 3X KEYWAY SLEEVE RETAINER: GREY REV ECO A1 - DESCRIPTION DATE RELEASE NEW DRAWING 15JUN18 3X KEYWAY SLEEVE RETAINER: GREEN BY APPR SULLEN TOMMY 3X KEYWAY SLEEVE RETAINER: BROWN TITLE: ATM13-12PB-BMXX KEY B ATM13-12PC-BMXX KEY C ATM13-12PD-BMXX KEY D ATM13-12PA-BMXX VARIANTS ATM13-12PB-BMXX VARIANTS ATM13-12PC-BMXX VARIANTS ATM13-12PD-BMXX VARIANTS CONTACT POTTING OR NOT PLATING IN RESERVOIR CONTACT POTTING OR NOT PLATING IN RESERVOIR PART NUMBER PART NUMBER CONTACT POTTING OR NOT PLATING IN RESERVOIR CONTACT POTTING OR NOT PLATING IN RESERVOIR PART NUMBER PCB MOUNT RECEPTACLE 12PIN, RA FLANGE, ATM SERIES ATM13-12PA-BMXX KEY A PART NUMBER ATM13-12PA-BM01 GOLD NO POTTING ATM13-12PB-BM01 GOLD NO POTTING ATM13-12PC-BM01 GOLD NO POTTING ATM13-12PD-BM01 POTTING ATM13-12PA-BM02 GOLD POTTING ATM13-12PB-BM02 GOLD POTTING ATM13-12PC-BM02 GOLD POTTING ATM13-12PD-BM02 TIN NO POTTING ATM13-12PA-BM03 TIN NO POTTING ATM13-12PB-BM03 TIN NO POTTING ATM13-12PC-BM03 TIN NO POTTING ATM13-12PD-BM03 TIN POTTING ATM13-12PA-BM04 TIN POTTING ATM13-12PB-BM04 TIN POTTING ATM13-12PC-BM04 TIN POTTING ATM13-12PD-BM04 ATM13-12PX-BMXX NO POTTING GOLD DWG NO: GOLD 60.96 MIN. 49.53±0.10 41.28 REV: 4x R7.60 MIN. A1 33.02 SH: 2x Ø4.06 2 QUANTITY UNLESS OTHERWISE SPECIFIED 1) All dimensions are in metric(mm). 2) Tolerances are as follows: 1 PL DEC ±0.30 Fractions ±1/64 2 PL DEC ±0.15 Angles ±1° 3 PL DEC ±0.08 3) Note reference = 12x R1.00 X SIGNATURES DRAWN: CHECKED: Amphenol DATE SULLEN.ZHANG 15JUN18 ORION.LI 15JUN18 Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: APPROVAL: MATERIAL SPECIFICATIONS: TOMMY.XIE 15JUN18 CUSTOMER: INTERNAL SEALING SURFACE FINISH TO BE 3.2 OR BETTER 0.13 RECOMMENDED PANEL CUTOUT PROCESS SPECIFICATIONS: THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. PCB MOUNT RECEPTACLE 12PIN, RA FLANGE, ATM SERIES TYPE B C- NEXT ASS'Y: ITEM NONE DWG NO: REVISION ATM13-12PX-BMXX A1 SHEET 2 OF 2 2 16.00 21.49 OF: 33.10 MIN. 16.00 ATM13-12PX-BMXX DESCRIPTION PART NUMBER MATERIALS LIST
