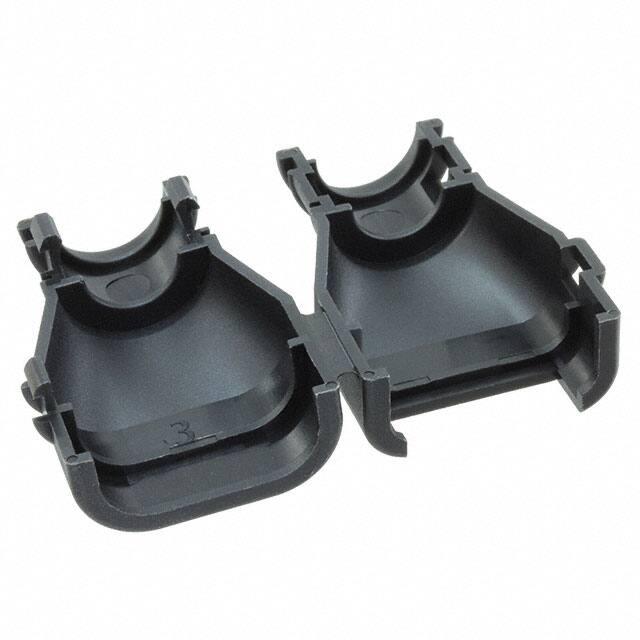

ATP06-4S-NC12

TITLE: Folding shells with snap latches, 4 POS, ATP SERIES ATP06-4S-NC12 DWG NO: REV: A2 SH: 1 OF: 1 REVISIONS 2-28.2 REV 2-Ø10.50 DATE BY A1 ECO RELEASE NEW DWG FORMAT DESCRIPTION Jan-16-15 TOM A2 ADDED NOTE #5 Jun-28-22 J. HEAD APPR 30.5 19.0 11.7 41.8 11.9 6.6 58.7 19.6 NOTES: UNLESS OTHERWISE SPECIFIED 1. MATERIAL: THERMOPLASTIC; COLOR: BLACK 2. RoHS COMPLIANT 3. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY. 4. MATING CYCLE DURABILITY: 100 CYCLES 5. ATTACHES TO THESE PLUGS AND RECEPTACLES WITH END CAPS: ATP04-4P-EC*, ATP04-4P-MM*, ATP04-4P-PM*EC* ATP06-4S-EC*, ATP06-4S-MM* ( * = MODIFICATIONS AND COLORS ) ATP06-4S-NC12 DESCRIPTION PART NUMBER MATERIALS LIST QUANTITY UNLESS OTHERWISE SPECIFIED 1) 2) 1 2 3 All dimensions are in metric(mm). Tolerances are as follows: PL DEC ±0.30 Fractions ±1/64 PL DEC ±0.15 Angles ±1° PL DEC ±0.08 3) Note reference = X SIGNATURES DRAWN: TOM ITEM Amphenol DATE Jan-16-15 CHECKED: Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: APPROVAL: MATERIAL SPECIFICATIONS: CUSTOMER: PROCESS SPECIFICATIONS: FOLDING SHELLS WITH SNAP LATCHES 4 POSITION, ATP SERIES THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. TYPE A C- NEXT ASS'Y: NONE DWG NO: REVISION ATP06-4S-NC12 SHEET 1 A2 OF 1
