REVISIONS
31.4
REV
ECO
DESCRIPTION
A1
-
A2
-
UPDATE NOTES
19FEB19
SULLEN TOMMY
A3
-
UPDATE REAR SEAL WIRE RANGE
05DEC19
SULLEN TOMMY
RELEASE DRAWING
DATE
BY
APPR
26JUN18
RIMON
TOMMY
54.5±0.5
TITLE:

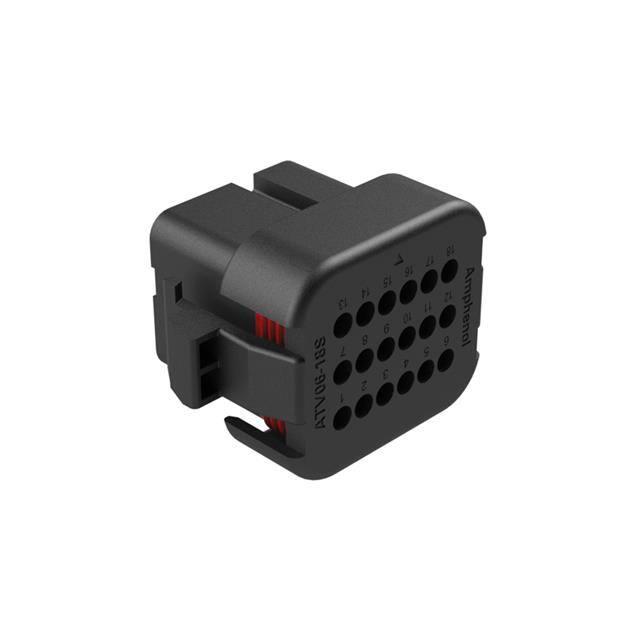

PLUG, 18 PIN, ATV SERIES, STANDARD DIAMETER WIRE SEAL
35.7±0.45
REQUIRES CONTACT
RETENTION WEDGE AWV-18S
36.9
15.3
26.8
35.7
DWG NO:
7
ATV06-18SX
KEYWAY
NOTES: UNLESS OTHERWISE SPECIFIED
1. SEE SHEET 2 FOR KEY ARRANGEMENTS AND COLORS.
REV:
2. MATERIAL:
HOUSING: THERMOPLASTIC
SEAL: SILICONE RUBBER , COLOR: RED
A3
SH:
3. MODIFICATIONS: STANDARD DIAMETER WIRE SEAL
1
UNLESS OTHERWISE SPECIFIED
All dimensions are in metric(mm).
Tolerances are as follows:
PL DEC ±0.30
Fractions ±1/64
PL DEC ±0.15
Angles ±1°
PL DEC ±0.08
3) Note reference =
X
7 CONTACT SIZE AND REAR SEAL WIRE RANGE:
SIGNATURES
DRAWN:
CHECKED:
MATERIAL SPECIFICATIONS:
5. MATING PART: ATV02-18PX* RECEPTACLE & ATV04-18PX* RECEPTACLE
( X = A,B,C,D KEYS ; * = MODIFICATIONS AND COLORS)
A3
6. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.
CONTACT
SIZE
MIN. INSUL
O.D.
MAX. INSUL
O.D.
TYPICAL
WIRE RANGE
16
2.23 mm
(.088 in)
3.00 mm
(.118 in)
14-20 AWG
(2.0-0.5mm²)
Amphenol
DATE
SULLEN.ZHANG 05DEC19
ORION.LI
05DEC19
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
ENGINEER:
APPROVAL:
TOMMY.XIE
05DEC19
CUSTOMER:
PROCESS SPECIFICATIONS:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
PLUG, 18 PIN, ATV SERIES
STANDARD DIAMETER WIRE SEAL
TYPE
B C-
NEXT ASS'Y:
ITEM
NONE
DWG NO:
REVISION
ATV06-18SX
SHEET
A3
1
OF
2
2
SEE SHEET 2
DESCRIPTION
PART NUMBER
MATERIALS LIST
QUANTITY
1)
2)
1
2
3
OF:
4. SPECIFICATIONS:
4.1 CURRENT RATING: 13 AMPS
4.2 OPERATING TEMPERATURE: -55°C TO +125°C.
4.3 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2
MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC.
4.4 INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 25°C.
A2 4.5 MOISTURE RESISTANCE: IP67&IP69K ( MATED CONDITION )
4.6 MATING CYCLE DURABILITY: 100 CYCLES
4.7 RoHS COMPLIANT
REVISIONS
REV
ECO
DESCRIPTION
A1
-
A2
-
UPDATE NOTES
19FEB19
SULLEN TOMMY
A3
-
UPDATE REAR SEAL WIRE RANGE
05DEC19
SULLEN TOMMY
RELEASE DRAWING
DATE
BY
APPR
26JUN18
RIMON
TOMMY
TITLE:
KEYWAY
(1)PLACE
KEYWAY
(1)PLACE
PLUG, 18 PIN, ATV SERIES, STANDARD DIAMETER WIRE SEAL
KEYWAY
(1)PLACE
KEYWAY
(1)PLACE
DWG NO:
COLOR
GREY
PART NUMBER
ATV06-18SA
REF: DTV06-18SA
KEY-B CONFIGURATION
COLOR
BLACK
PART NUMBER
ATV06-18SB
KEY-C CONFIGURATION
COLOR
KEY-D CONFIGURATION
PART NUMBER
GREEN
COLOR
ATV06-18SC
REF: DTV06-18SB
ATV06-18SX
KEY-A CONFIGURATION
PART NUMBER
BROWN
ATV06-18SD
REF: DTV06-18SC
REF: DTV06-18SD
REV:
A3
SH:
2
OF:
UNLESS OTHERWISE SPECIFIED
1)
2)
1
2
3
All dimensions are in metric(mm).
Tolerances are as follows:
PL DEC ±0.30
Fractions ±1/64
PL DEC ±0.15
Angles ±1°
PL DEC ±0.08
3) Note reference =
X
SIGNATURES
DRAWN:
CHECKED:
Amphenol
DATE
SULLEN.ZHANG 05DEC19
ORION.LI
05DEC19
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
ENGINEER:
APPROVAL:
MATERIAL SPECIFICATIONS:
TOMMY.XIE
05DEC19
CUSTOMER:
PROCESS SPECIFICATIONS:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
PLUG, 18 PIN, ATV SERIES
STANDARD DIAMETER WIRE SEAL
TYPE
B C-
NEXT ASS'Y:
ITEM
NONE
DWG NO:
REVISION
ATV06-18SX
SHEET
A3
2
OF
2
2
SEE CONFIGURATION CHART
DESCRIPTION
PART NUMBER
QUANTITY
MATERIALS LIST
A Series™ - Contact Size 16 Options (Works with: AT, ATV, AHD-9, ARC, DuraMate and PanelMate Series)
Stamped & Formed Contacts, Sockets & Pins
Machined Contacts, Sockets & Pins
Size
AWG
Type
AT60-215-1631
Male Contact - Pin, Gold-plated
16
14
Machined
AT60-14-0122
Male Contact - Pin, Nickel-plated
16
14-18
Stamped & Formed
Part Number
Description
Size
AWG
Type
Part Number
Description
AT62-209-1631
Female Contact - Socket, Gold-plated
16
14
Machined
AT62-14-0122
Female Contact - Socket, Nickel-plated
16
14-18
Stamped & Formed
AT60-215-16141
Male Contact - Pin, Nickel-plated
16
14
Machined
AT60-14-0144
Male Contact - Pin, Gold-plated
16
14-18
Stamped & Formed
AT62-209-16141
Female Contact - Socket, Nickel-plated
16
14
Machined
AT62-14-0144
Female Contact - Socket, Gold-plated
16
14-18
Stamped & Formed
AT60-202-1631
Male Contact - Pin, Gold-plated
16
16-20
Machined
AT60-16-0122
Male Contact - Pin, Nickel-plated
16
16-18
Stamped & Formed
Machined
AT62-16-0122
Female Contact - Socket, Nickel-plated
16
16-18
Stamped & Formed
Male Contact - Pin, Gold-plated
16
16-18
Stamped & Formed
AT62-201-1631
Female Contact - Socket, Gold-plated
16
16-20
AT60-202-16141
Male Contact - Pin, Nickel-plated
16
16-20
Machined
AT60-16-0144
AT62-201-16141
Female Contact - Socket, Nickel-plated
16
16-20
Machined
AT62-16-0144
Female Contact - Socket, Gold-plated
16
16-18
Stamped & Formed
AT60-202-1631-22
Male Contact - Pin, Gold-plated
16
22-24
Machined
AT60-16-0622
Male Contact - Pin, Nickel-plated
16
16-20
Stamped & Formed
AT62-201-1631-22
Female Contact - Socket, Gold-plated
16
22-24
Machined
AT62-16-0622
Female Contact - Socket, Nickel-plated
16
16-20
Stamped & Formed
AT60-202-16141-22
Male Contact - Pin, Nickel-plated
16
22-24
Machined
AT60-16-0644
Male Contact - Pin, Gold-plated
16
16-20
Stamped & Formed
AT62-201-16141-22
Female Contact - Socket, Nickel-plated
16
22-24
Machined
AT62-16-0644
Female Contact - Socket, Gold-plated
16
16-20
Stamped & Formed
AT60-16-0677
Male Contact - Pin, Tin-plated
16
16-20
Stamped & Formed
AT62-16-0677
Female Contact - Socket, Tin-plated
16
16-20
Stamped & Formed
Description
AT60-16-0822
Male Contact - Pin, Nickel-plated
16
20-22
Stamped & Formed
AUTK-16
Hand Crimp Tool, Size 16
AT62-16-0822
Female Contact - Socket, Nickel-plated
16
20-22
Stamped & Formed
AUTK-100
Universal Heavy Duty Contact Crimping Tool Kit, Size 12/16/20
AT60-16-0844
Male Contact - Pin, Gold-plated
16
20-22
Stamped & Formed
CA-5D12
Universal Hand Crimp Tool, Size 12/16/20
AT62-16-0844
Female Contact - Socket, Gold-plated
16
20-22
Stamped & Formed
CA-5E12
Pneumatic Crimp Tool, Size 12/16/20
Tooling - Machined Contacts
Part Number
Tooling - Stamped & Formed Contacts
Contact Removal Tools (For both Machined or Stamped & Formed Contacts)
Part Number
ATRT-100
AT11-310-1605
Description
MFX-3950
Crimp Die - Size 16, 18-20AWG
MFX-3953
Crimp Die - Size 16, 16-18AWG
MFX-3975
Crimp Die - Size 16, 14-16AWG
MFX-3990
Crimp Die - Size 16, 20-22AWG
ATT-16-00
Hand Crimp Tool - Size 16, 14-16AWG
ATT-16-01
Hand Crimp Tool - Size 16, 18-20AWG
ATT-1612-03
Hand Crimp Tool - Size 16, 20-22AWG
Contact and Wedgelock Extraction Tool
Contact Removal Tool, Plastic, Size 16
Sealing Plugs (For both Machined or Stamped & Formed Contacts)
Part Number
A114017
A114017-SR
AT13-217-1605
AT13-217-1605-SR
Description
Sealing Plug, Size 16, White
Sealing Plug, Size 16, SR01 Series, Black
Locking Sealing Plug, Size 16, Grey
Locking Sealing Plug, Size 16, SR01 Series, Red
Amphenol Sine Systems 44724 Morley Drive, Clinton Township, MI 48036 USA www.amphenol-sine.com 10-2023
