AW8S

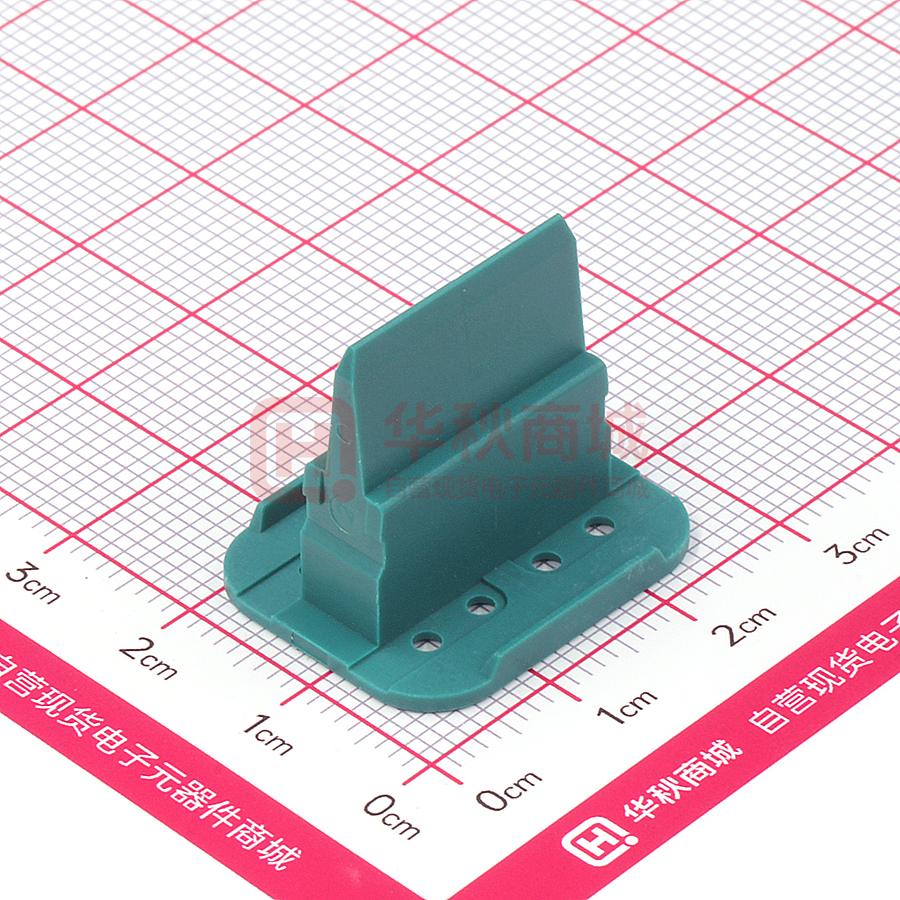

TITLE: S-WEDGELOCK, 8 POSITION, AT SERIES DWG NO: REV: SH: A5 AW8S OF: 1 1 REVISIONS REV ECO A3 -- A4 -- A5 -- DATE BY RELEASE NEW DWG FORMAT 18/SEP/13 DRP UPDATE DRAWING 10/MAY/19 JOE TOMMY ADDED 2 RIBS, SHOW THRU TOOLING HOLES 06JUN2023 JAH DH DESCRIPTION APPR 20.8 1.3 19.7 24.4 NOTES: UNLESS OTHERWISE SPECIFIED AW8S DESCRIPTION PART NUMBER MATERIALS LIST QUANTITY 1. MATERIAL: THERMOPLASTIC; COLOR: GREEN UNLESS OTHERWISE SPECIFIED 2. RoHS COMPLIANT 1) 2) 1 2 3 SIGNATURES 3. CAVITIES: 8 All dimensions are in metric(mm). Tolerances are as follows: PL DEC ±0.30 Fractions ±1/64 PL DEC ±0.15 Angles ±1° PL DEC ±0.08 DATE Amphenol DRAWN: CHECKED: JOE ORION 10/MAY/19 10/MAY/19 TOMMY 10/MAY/19 Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: 3) Note reference = X APPROVAL: MATERIAL SPECIFICATIONS: 4. KEYED: N/A ITEM CUSTOMER: S-WEDGELOCK, 8 POSITION, AT SERIES 5. USE WITH CONNECTORS AT06-08S* ( * = MODIFICATIONS AND/OR COLORS ) PROCESS SPECIFICATIONS: 6. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY. NEXT ASS'Y: THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. TYPE A CNONE DWG NO: REVISION AW8S SHEET A5 1 OF 1
