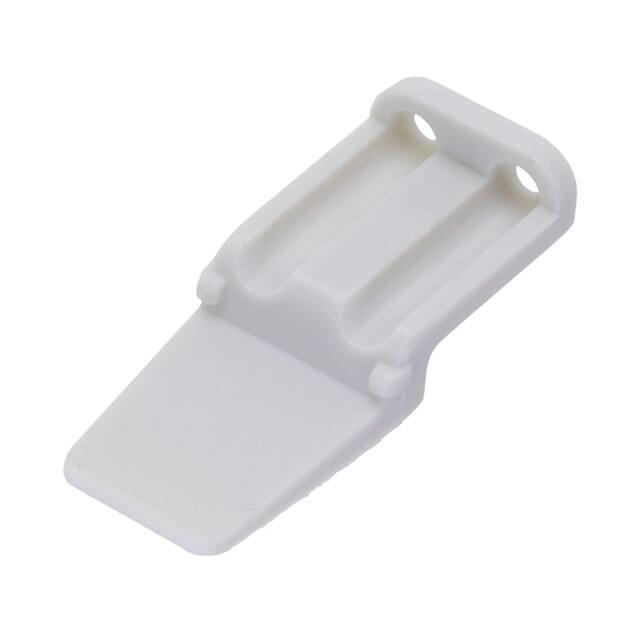

AWM-2SA

TITLE: S-WEDGELOCK, 2 POS,A KEYED, ATM SERIES AWM-2SA DWG NO: REV: A1 SH: 1 1 OF: REVISIONS REV ECO A1 DESCRIPTION - RELEASE DATE BY APPR 26/JUL/16 JONY TOMMY 5.4 19.0 7.8 REF: WM-2SA AWM-2SA DESCRIPTION PART NUMBER MATERIALS LIST NOTES: UNLESS OTHERWISE SPECIFIED 1. MATERIAL: THERMOPLASTIC; COLOR: GRAY 2. RoHS COMPLIANT 3. CAVITIES: 2 4. KEYED: A KEYED 5. USE WITH CONNECTORS ATM06-2S* ( * = MODIFICATIONS AND COLORS ) 6. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY. QUANTITY UNLESS OTHERWISE SPECIFIED 1) All dimensions are in metric(mm). 2) Tolerances are as follows: 1 PL DEC ±0.30 Fractions ±1/64 2 PL DEC ±0.15 Angles ±1° 3 PL DEC ±0.08 3) Note reference = X SIGNATURES DRAWN: CHECKED: 26/JUL/16 26JUL16 Tommy 26JUL16 Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: APPROVAL: MATERIAL SPECIFICATIONS: CUSTOMER: PROCESS SPECIFICATIONS: Amphenol DATE JONY Orion S-WEDGELOCK,2POS,A KEYED,ATM SERIES THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. TYPE B C- NEXT ASS'Y: ITEM NONE DWG NO: REVISION AWM-2SA SHEET A1 1 OF 1
