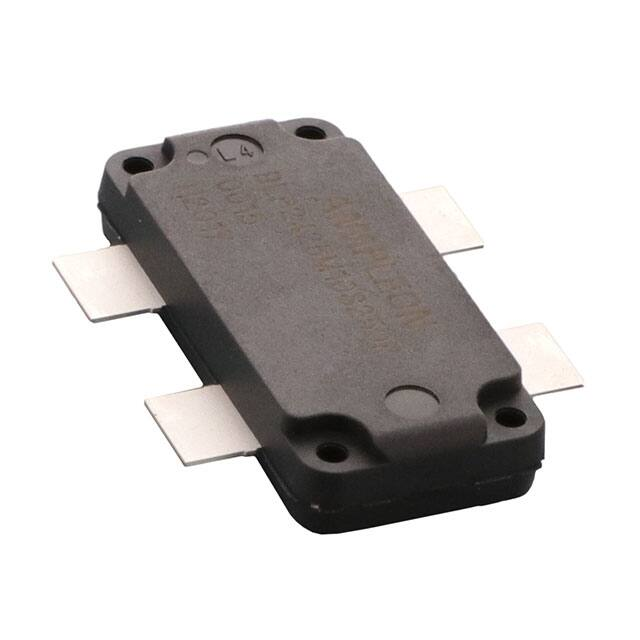

BLP2425M10S250P Power LDMOS transistor Rev. 1 — 26 March 2020 Product data sheet 1. Product profile 1.1 General description 250 W LDMOS-based power transistor suitable for use in a variety of commercial and consumer cooking, industrial, scientific and medical applications at frequencies from 2400 MHz to 2500 MHz. The BLP2425M10S250P is designed for high-power CW applications and is assembled in a high performance plastic package. Table 1. Typical performance RF performance at VDS = 32 V; IDq = 100 mA; Tcase = 25 C in a class-AB application circuit. Test signal CW CW pulsed [1] [1] f VDS PL(AV) Gp D (MHz) (V) (W) (dB) (%) 2450 32 250 15 66.5 2450 32 250 15 67.5 tp = 100 s;  = 10 % 1.2 Features and benefits        High efficiency Excellent ruggedness Integrated ESD protection Designed for broadband operation (2400 MHz to 2500 MHz) Internally input and output matched Thermally enhanced low cost plastic package For RoHS compliance see the product details on the Ampleon website 1.3 Applications  RF power amplifiers for CW applications in the 2400 MHz to 2500 MHz frequency range such as commercial and consumer cooking, industrial, scientific and medical applications BLP2425M10S250P Power LDMOS transistor 2. Pinning information Table 2. Pinning Pin Description 1 gate1 2 gate2 3 drain2 4 drain1 5 Simplified outline Graphic symbol 4 4 3 1 5 2 [1] source 1 2 3 amp01358 [1] Connected to flange. 3. Ordering information Table 3. Ordering information Type number Package Name Description BLP2425M10S250P - Version overmolded plastic earless flanged package; 4 leads OMP-780-4F-1 4. Limiting values Table 4. Limiting values In accordance with the Absolute Maximum Rating System (IEC 60134). Symbol Parameter Conditions Min Max Unit VDS drain-source voltage - 65 V VGS gate-source voltage 6 +13 V Tstg storage temperature 65 +150 C - 225 C junction temperature Tj [1] [1] Continuous use at maximum temperature will affect the reliability, for details refer to the online MTF calculator. 5. Thermal characteristics Table 5. Symbol Thermal characteristics Parameter Rth(j-case) thermal resistance from junction to case BLP2425M10S250P Product data sheet Conditions Typ Unit Tcase = 80 C; PL = 250 W 0.32 K/W All information provided in this document is subject to legal disclaimers. Rev. 1 — 26 March 2020 © Ampleon Netherlands B.V. 2020. All rights reserved. 2 of 11 BLP2425M10S250P Power LDMOS transistor 6. Characteristics Table 6. DC characteristics Tj = 25 C, per section; unless otherwise specified. Symbol Parameter Conditions Min V(BR)DSS drain-source breakdown voltage VGS = 0 V; ID =1.52 mA Typ Max Unit 65.00 - - V VGS(th) gate-source threshold voltage VDS = 32 V; ID = 50 mA 1.33 1.82 2.33 V IDSS drain leakage current VGS = 0 V; VDS = 32 V - - 2.8 A IDSX drain cut-off current VGS = VGS(th) + 3.75 V; VDS = 10 V - 28.4 - A IGSS gate leakage current VGS = 11 V; VDS = 0 V - - 280 nA gfs forward transconductance VDS = 10 V; ID = 7.6 A - 10.1 - S RDS(on) drain-source on-state resistance VGS = VGS(th) + 3.75 V; ID = 5.32 A - 95 - m Table 7. RF characteristics Test signal: pulsed at 2450 MHz; RF performance at VDS = 32 V; IDq = 100 mA; tp = 100 s;  = 10 %; Tcase = 25 C; unless otherwise specified; in a class-AB production test circuit. Symbol Parameter Conditions Min Typ Max Unit Gp power gain PL = 250 W 13 15 - dB RLin input return loss PL = 250 W - 15 - dB D drain efficiency PL = 250 W 61 64 - % 7. Test information 7.1 Ruggedness in class-AB operation The BLP2425M10S250P is capable of withstanding a load mismatch corresponding to VSWR = 20 : 1 through all phases with a time rate of 55 ms/degree under the following conditions: VDS = 32 V; IDq = 100 mA; PL = 260 W (CW); f = 2450 MHz; Tcase = 25 C. 7.2 Impedance information Table 8. Typical impedance Measured load-pull data; measured on a single section of the push-pull transistor; IDq = 50 mA; VDS = 32 V. f ZS [1] (MHz) () () 2400 12.1  1.9j 4.1  5.7j 2450 8.2  0.5j 3.7  5.5j 2500 5.4  1.0j 3.3  5.4j [1] BLP2425M10S250P Product data sheet ZL [1] ZS and ZL defined in Figure 1. All information provided in this document is subject to legal disclaimers. Rev. 1 — 26 March 2020 © Ampleon Netherlands B.V. 2020. All rights reserved. 3 of 11 BLP2425M10S250P Power LDMOS transistor drain ZL gate ZS amp01312 Fig 1. Definition of transistor impedance 7.3 Test circuit 90 mm C5 C4 C2 L1 C1 60 mm C8 C6 R2 C7 R3 C3 L2 R4 R1 C9 C10 amp00958 Printed-Circuit Board (PCB): Rogers TC350; thickness = 0.762 mm. See Table 9 for a list of components. Fig 2. Component layout demo circuit Table 9. List of components See Figure 2 for component layout. Component Description BLP2425M10S250P Product data sheet Value Remarks C1, C2 multilayer ceramic chip capacitor 22 pF ATC 800A C3, C6 multilayer ceramic chip capacitor 1000 pF, 50 V C0805 C4, C8 multilayer ceramic chip capacitor 1 F, 50 V C1206 C5, C10 multilayer ceramic chip capacitor 22 pF ATC 800B C7 multilayer ceramic chip capacitor 560 pF ATC 100B C9 electrolytic capacitor 100 F, 63 V L1 ferrite bead inductor 47 , 100 MHz Fair-Rite: 2743019447 L2 inductor 0.05 H Coilcraft: SLC7530D-500MLC R1 chip resistor 100  R0805 R2 chip resistor 10  R0805 R3 chip resistor 1.5  R1206 R4 chip resistor 10  R1206 All information provided in this document is subject to legal disclaimers. Rev. 1 — 26 March 2020 © Ampleon Netherlands B.V. 2020. All rights reserved. 4 of 11 BLP2425M10S250P Power LDMOS transistor 7.4 Graphical data amp00959 16 70 Gp (dB) ηD (%) (1) (2) (3) 15 amp00960 16 ηD (%) 60 15 50 14 40 13 (1) (2) (3) Gp 13 (1) (2) (3) ηD 12 100 150 200 50 40 (1) (2) (3) ηD 11 50 250 300 PL (W) 30 12 20 350 11 0 Test signal: CW; VDS = 32 V; IDq = 100 mA; Tcase = 42 C; Twater = 25 C (at water-cooled heatsink). 50 100 150 200 (1) Tcase = 42 C; Twater = 25 C (2) f = 2450 MHz (2) Tcase = 63 C; Twater = 45 C (3) f = 2500 MHz (3) Tcase = 83 C; Twater = 65 C Power gain and drain efficiency as function of output power; typical values amp00961 16 (1) (2) (3) (3) (2) (1) Gp 250 300 PL (W) 20 350 Power gain and drain efficiency as function of output power; typical values amp00962 16 ηD (%) 15 Fig 4. 70 Gp (dB) 30 Test signal: CW; VDS = 32 V; IDq = 100 mA; f = 2450 MHz; at water-cooled heatsink. (1) f = 2400 MHz Fig 3. 60 Gp 14 0 70 Gp (dB) 70 Gp (dB) ηD (%) 60 15 50 14 60 Gp 14 13 40 13 30 12 50 (1) (2) (3) ηD 40 ηD 12 (3) (2) 30 (1) 11 0 50 100 150 200 250 300 PL (W) 20 350 11 0 Test signal: CW; VDS = 32 V; Tcase = 42 C; f = 2450 MHz; Twater = 25 C (at water-cooled heatsink). 50 (1) VDS = 28 V (2) IDq = 100 mA (2) VDS = 30 V (3) IDq = 200 mA (3) VDS = 32 V Power gain and drain efficiency as function of output power; typical values BLP2425M10S250P Product data sheet 150 200 250 300 PL (W) 20 350 Test signal: CW; IDq = 100 mA; Tcase = 42 C; f = 2450 MHz; Twater = 25 C (at water-cooled heatsink). (1) IDq = 20 mA Fig 5. 100 Fig 6. Power gain and drain efficiency as function of output power; typical values All information provided in this document is subject to legal disclaimers. Rev. 1 — 26 March 2020 © Ampleon Netherlands B.V. 2020. All rights reserved. 5 of 11 BLP2425M10S250P Power LDMOS transistor 8. Package outline OMP-780-4F-1 (18.01) (15.44) (2.15) 8.85 E 0.10 (4) (0.75) A 3 4 L 0.05 A 9.78 9.96(1) 16.00 (4.47) (7.04) 15.96 B0.20 R1.38 P2.00 0.1Z 1 R0.16 max. metal protrusion 4x (ground) in corners (2) 2 L 0.25 B 3.85 (3) 20.75(1) 1.57 (5) L 0.05 B R1.00 B 0.10 +0.08 3.92 0.03 0.22 B0.05 R0.32 20.57 Min. 5.5 Min. 7.8 (0.20) compound rim all around the perimeter of the heatsink R0.60(4x) pin 5 (6) Min. 15.5 Min. 18.5 Package outline drawing: units in mm. Tolerances unless otherwise stated: Revision: Angle: B 1° Revision date: Dimension: B 0.05 OMP-780-4F-1 Fig 7. Third angle projection 0 3/1/2018 Sheet 1 of 2 Package outline OMP-780-4F-1 (sheet 1 of 2) BLP2425M10S250P Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 1 — 26 March 2020 © Ampleon Netherlands B.V. 2020. All rights reserved. 6 of 11 BLP2425M10S250P Power LDMOS transistor OMP-780-4F-1 Drawing Notes Description Items Dimensions are excluding mold protrusion. All areas located adjacent to the leads have a maximum mold protrusion of 0.25 (1) mm (per side) and max. 0.62 mm in length. At all other areas the mold protrusion is maximum 0.15 mm per side. See also detail B. (2) The metal protrusion (tie bars) in the corner will not stick out of the molding compound protrusions (detail A). (3) The lead dambar (metal) protrusions are not included. Add 0.14 mm max to the total lead dimension at the dambar location. (4) The lead coplanarity over all leads is 0.1 mm maximum. (5) Dimension is measured 0.5 mm from the edge of the top package body. (6) The hatched area indicates the exposed metal heatsink. (7) The leads and exposed heatsink are plated with matte Tin (Sn). location of metal protrusion (2) DETAIL A SCALE 25:1 B A lead dambar location 0 0.6 2m 0 ax . m .1 5 ax . (1 m .2 5 ax . (1 ) ) (1) DETAIL B SCALE 50:1 Package outline drawing: units in mm. Tolerances unless otherwise stated: Revision: Angle: B 1° Revision date: Dimension: B 0.05 OMP-780-4F-1 Fig 8. Third angle projection 0 3/1/2018 Sheet 2 of 2 Package outline OMP-780-4F-1 (sheet 2 of 2) BLP2425M10S250P Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 1 — 26 March 2020 © Ampleon Netherlands B.V. 2020. All rights reserved. 7 of 11 BLP2425M10S250P Power LDMOS transistor 9. Handling information CAUTION This device is sensitive to ElectroStatic Discharge (ESD). Observe precautions for handling electrostatic sensitive devices. Such precautions are described in the ANSI/ESD S20.20, IEC/ST 61340-5, JESD625-A or equivalent standards. Table 10. ESD sensitivity ESD model Class Charged Device Model (CDM); According to ANSI/ESDA/JEDEC standard JS-002 C1 [1] Human Body Model (HBM); According to ANSI/ESDA/JEDEC standard JS-001 1C [2] [1] CDM classification C1 is granted to any part that passes after exposure to an ESD pulse of 250 V. [2] HBM classification 1C is granted to any part that passes after exposure to an ESD pulse of 1000 V. 10. Abbreviations Table 11. Abbreviations Acronym Description CW Continuous Wave ESD ElectroStatic Discharge LDMOS Laterally Diffused Metal-Oxide Semiconductor MTF Median Time to Failure RoHS Restriction of Hazardous Substances VSWR Voltage Standing Wave Ratio 11. Revision history Table 12. Revision history Document ID Release date Data sheet status Change notice Supersedes BLP2425M10S250P v.1 20200326 Product data sheet - - BLP2425M10S250P Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 1 — 26 March 2020 © Ampleon Netherlands B.V. 2020. All rights reserved. 8 of 11 BLP2425M10S250P Power LDMOS transistor 12. Legal information 12.1 Data sheet status Document status[1][2] Product status[3] Definition Objective [short] data sheet Development This document contains data from the objective specification for product development. Preliminary [short] data sheet Qualification This document contains data from the preliminary specification. Product [short] data sheet Production This document contains the product specification. [1] Please consult the most recently issued document before initiating or completing a design. [2] The term ‘short data sheet’ is explained in section “Definitions”. [3] The product status of device(s) described in this document may have changed since this document was published and may differ in case of multiple devices. The latest product status information is available on the Internet at URL http://www.ampleon.com. 12.2 Definitions Draft — The document is a draft version only. The content is still under internal review and subject to formal approval, which may result in modifications or additions. Ampleon does not give any representations or warranties as to the accuracy or completeness of information included herein and shall have no liability for the consequences of use of such information. Short data sheet — A short data sheet is an extract from a full data sheet with the same product type number(s) and title. A short data sheet is intended for quick reference only and should not be relied upon to contain detailed and full information. For detailed and full information see the relevant full data sheet, which is available on request via the local Ampleon sales office. In case of any inconsistency or conflict with the short data sheet, the full data sheet shall prevail. Product specification — The information and data provided in a Product data sheet shall define the specification of the product as agreed between Ampleon and its customer, unless Ampleon and customer have explicitly agreed otherwise in writing. In no event however, shall an agreement be valid in which the Ampleon product is deemed to offer functions and qualities beyond those described in the Product data sheet. 12.3 Disclaimers Maturity — The information in this document can only be regarded as final once the relevant product(s) has passed the Release Gate in Ampleon's release process. Prior to such release this document should be regarded as a draft version. Limited warranty and liability — Information in this document is believed to be accurate and reliable. However, Ampleon does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of use of such information. Ampleon takes no responsibility for the content in this document if provided by an information source outside of Ampleon. In no event shall Ampleon be liable for any indirect, incidental, punitive, special or consequential damages (including - without limitation - lost profits, lost savings, business interruption, costs related to the removal or replacement of any products or rework charges) whether or not such damages are based on tort (including negligence), warranty, breach of contract or any other legal theory. Notwithstanding any damages that customer might incur for any reason whatsoever, Ampleon’s aggregate and cumulative liability towards customer for the products described herein shall be limited in accordance with the Terms and conditions of commercial sale of Ampleon. BLP2425M10S250P Product data sheet Right to make changes — Ampleon reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. This document supersedes and replaces all information supplied prior to the publication hereof. Suitability for use — Ampleon products are not designed, authorized or warranted to be suitable for use in life support, life-critical or safety-critical systems or equipment, nor in applications where failure or malfunction of an Ampleon product can reasonably be expected to result in personal injury, death or severe property or environmental damage. Ampleon and its suppliers accept no liability for inclusion and/or use of Ampleon products in such equipment or applications and therefore such inclusion and/or use is at the customer’s own risk. Applications — Applications that are described herein for any of these products are for illustrative purposes only. Ampleon makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. Customers are responsible for the design and operation of their applications and products using Ampleon products, and Ampleon accepts no liability for any assistance with applications or customer product design. It is customer’s sole responsibility to determine whether the Ampleon product is suitable and fit for the customer’s applications and products planned, as well as for the planned application and use of customer’s third party customer(s). Customers should provide appropriate design and operating safeguards to minimize the risks associated with their applications and products. Ampleon does not accept any liability related to any default, damage, costs or problem which is based on any weakness or default in the customer’s applications or products, or the application or use by customer’s third party customer(s). Customer is responsible for doing all necessary testing for the customer’s applications and products using Ampleon products in order to avoid a default of the applications and the products or of the application or use by customer’s third party customer(s). Ampleon does not accept any liability in this respect. Limiting values — Stress above one or more limiting values (as defined in the Absolute Maximum Ratings System of IEC 60134) will cause permanent damage to the device. Limiting values are stress ratings only and (proper) operation of the device at these or any other conditions above those given in the Recommended operating conditions section (if present) or the Characteristics sections of this document is not warranted. Constant or repeated exposure to limiting values will permanently and irreversibly affect the quality and reliability of the device. Terms and conditions of commercial sale — Ampleon products are sold subject to the general terms and conditions of commercial sale, as published at http://www.ampleon.com/terms, unless otherwise agreed in a valid written individual agreement. In case an individual agreement is concluded only the terms and conditions of the respective agreement shall apply. Ampleon hereby expressly objects to applying the customer’s general terms and conditions with regard to the purchase of Ampleon products by customer. All information provided in this document is subject to legal disclaimers. Rev. 1 — 26 March 2020 © Ampleon Netherlands B.V. 2020. All rights reserved. 9 of 11 BLP2425M10S250P Power LDMOS transistor No offer to sell or license — Nothing in this document may be interpreted or construed as an offer to sell products that is open for acceptance or the grant, conveyance or implication of any license under any copyrights, patents or other industrial or intellectual property rights. Export control — This document as well as the item(s) described herein may be subject to export control regulations. Export might require a prior authorization from competent authorities. Non-automotive qualified products — Unless this data sheet expressly states that this specific Ampleon product is automotive qualified, the product is not suitable for automotive use. It is neither qualified nor tested in accordance with automotive testing or application requirements. Ampleon accepts no liability for inclusion and/or use of non-automotive qualified products in automotive equipment or applications. In the event that customer uses the product for design-in and use in automotive applications to automotive specifications and standards, customer (a) shall use the product without Ampleon’s warranty of the product for such automotive applications, use and specifications, and (b) whenever customer uses the product for automotive applications beyond Ampleon’s specifications such use shall be solely at customer’s own risk, and (c) customer fully indemnifies Ampleon for any liability, damages or failed product claims resulting from customer design and use of the product for automotive applications beyond Ampleon’s standard warranty and Ampleon’s product specifications. Translations — A non-English (translated) version of a document is for reference only. The English version shall prevail in case of any discrepancy between the translated and English versions. 12.4 Trademarks Notice: All referenced brands, product names, service names and trademarks are the property of their respective owners. 13. Contact information For more information, please visit: http://www.ampleon.com For sales office addresses, please visit: http://www.ampleon.com/sales BLP2425M10S250P Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 1 — 26 March 2020 © Ampleon Netherlands B.V. 2020. All rights reserved. 10 of 11 BLP2425M10S250P Power LDMOS transistor 14. Contents 1 1.1 1.2 1.3 2 3 4 5 6 7 7.1 7.2 7.3 7.4 8 9 10 11 12 12.1 12.2 12.3 12.4 13 14 Product profile . . . . . . . . . . . . . . . . . . . . . . . . . . 1 General description . . . . . . . . . . . . . . . . . . . . . 1 Features and benefits . . . . . . . . . . . . . . . . . . . . 1 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Pinning information . . . . . . . . . . . . . . . . . . . . . . 2 Ordering information . . . . . . . . . . . . . . . . . . . . . 2 Limiting values. . . . . . . . . . . . . . . . . . . . . . . . . . 2 Thermal characteristics . . . . . . . . . . . . . . . . . . 2 Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Test information . . . . . . . . . . . . . . . . . . . . . . . . . 3 Ruggedness in class-AB operation . . . . . . . . . 3 Impedance information . . . . . . . . . . . . . . . . . . . 3 Test circuit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Graphical data . . . . . . . . . . . . . . . . . . . . . . . . . 5 Package outline . . . . . . . . . . . . . . . . . . . . . . . . . 6 Handling information. . . . . . . . . . . . . . . . . . . . . 8 Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . 8 Legal information. . . . . . . . . . . . . . . . . . . . . . . . 9 Data sheet status . . . . . . . . . . . . . . . . . . . . . . . 9 Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Disclaimers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Trademarks. . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Contact information. . . . . . . . . . . . . . . . . . . . . 10 Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Please be aware that important notices concerning this document and the product(s) described herein, have been included in section ‘Legal information’. © Ampleon Netherlands B.V. 2020. All rights reserved. For more information, please visit: http://www.ampleon.com For sales office addresses, please visit: http://www.ampleon.com/sales Date of release: 26 March 2020 Document identifier: BLP2425M10S250P
