revision history
A
NOTE:
1.MATERIAL:
HOUSING:HIGH TEMPERATURE THERMOPLASTIC;BLACK UL94V-0;HALOGEN FREE
CONTACT:COPPER ALLOY
BOARD LOCK:SPCC
2.PLATING:
CONTACT:MATING AREA:SEE PN SYSTEM OVER 1.27-2.54UM NICKEL UNDERPLATED
SOLDER AREA:2.54UM MIN TIN OVER 1.27-2.54UM NICKEL UNDERPLATED
BOARD LOCK:2.54UM MIN TIN OVER 1.27-2.54UM NICKEL UNDERPLATED
3.ELECTRICAL PERFORMANCE:
RATED CURRENT FOR SIGNAL PIN:0.7A/PIN
RATED CURRENT FOR POWER PIN:1.1A/PIN(A2/A3/A9/A10/B1/B2/B3/B8/,TOTAL 8PIN)
4.MATERIAL IS COMPLIANT TO RoHS
5.TRANSMISSION SPEED:
PCIe Gen4/16Gbps:OPEN PIN FIELD DESIGN
PCIe Gen5/32Gbps:CONFORM TO PCIe CEM SPECIFICATION
6.ORDERING PART NUMBER:REFER TO THE PART NUMBER SYSTEM
rev
ecn no
4
CD2021
6
CD2675
5
CD2387
description
dr
date
DETAILED THE PN SYSTEM
JF
JF
2020/05/30
JQ
2021/06/05
UPDATE PLATING SPEC
UPDATE GOLD FINGER
2020/12/22
A
B
TOP VIEW WITH PICK CAP
(T=0.25mm)
PART NUMBER SYSTEM
PIN COUNT
098: 98PIN
PICK CAP & MYLAR
0: WITH CAP
1: WITH MYLAR
PLATING SPEC
1: Au 0.76UM(30u")
2: Au 0.38UM(15u")
3: Gold Flash
4: GXT
(7.0 )
CEE0098X014XXXX
(35.0 )
TRANSMISSION SPEED
0: PCIe Gen5/32Gbps
1: PCIe Gen4/16Gbps
C
SOLDER TAIL OPTION
2: STANDARD TAIL
3: SHORTER TAIL
tolerance std
TOLERANCES UNLESS
OTHERWISE SPECIFIED
0.X
surface
linear
0.XX
0.XXX
angular
Creo File:APH-A3C,REV B,2021-05-07
1
2
0 $
dr
JERRY.QU
Jun.05,2021
eng
JERRY.QU
Jun.05,2021
mm
rvwr
ecn no
amphenol-icc.com
appr
projection

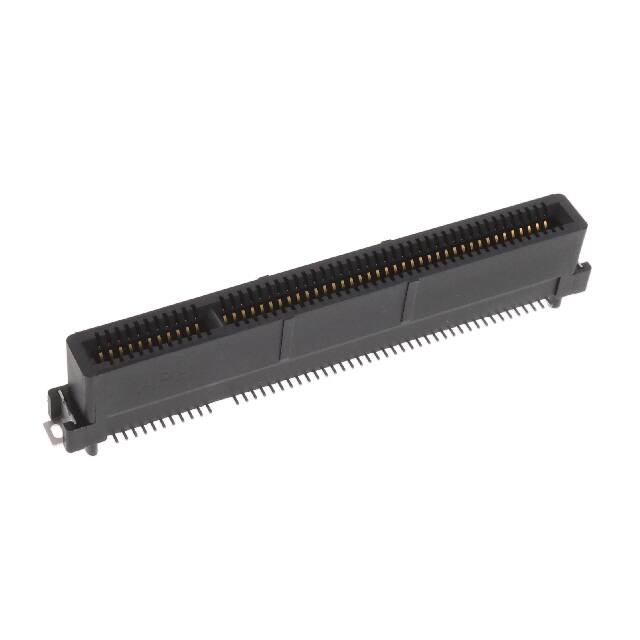

PCIe COOL EDGE CONNECTOR
1.0mm PITCH,X8,Gen4 & Gen5
product family
3
rel level
dwg no
spec ref
D
title
C
2021
Amphenol Corporation
PACKING TRAY
0: BLISTER TRAY (320x220mm T=2mm)
1: BLISTER TRAY (330x120mm T=2mm)
C
TOP VIEW WITH MYLAR
(T=0.15mm)
scale
1:1
size
A3
CD2675
RELEASED
C CEE0098X014XXXX
rev
cat. no.
PCIe COOL EDGE
4
sheet 1 of 5
6
D
1
2
3
4
62.00
60.00
56.00
(3.00 )
A11
A1
DETAIL A
PITCH=1.00
Y
A49
A12
(5.80 )
1.78 0.05
X
A
39.54
(0.60 )
12.54
(7.00 )
A
SHORTER TAIL
B11
B12
B49
(0.34 )
1.50
5.80
B1
1.76
STANDARD TAIL
DETAIL A
SCALE 2:1
DETAIL A
SCALE 2:1
1.50
7.00
3.40 0.15
(1.42 )
3.40 0.15
3.40
54.00
ECB
(OPTIONAL)
STANDARD TAIL
SECTION A-A
1.80
(0.65 )
5.46
ECB
(OPTIONAL)
SHORTER TAIL
SECTION A-A
C
1.50
42.00
-A-
2.00
spec ref
tolerance std
TOLERANCES UNLESS
OTHERWISE SPECIFIED
0.X
surface
linear
0.XX
0.XXX
angular
1
2
0 $
SIDE B
GND PIN
dr
JERRY.QU
Jun.05,2021
eng
JERRY.QU
Jun.05,2021
A12,A15,A18,A20,A23,A24,A27,A28,A31,A34,A37,
A38,A41,A42,A45,A46,A49
B13,B16,B18,B21,B22,B25,B26,B29,B32,B35,B36,
B39,B40,B43,B44,B47,B49
mm
rvwr
ecn no
amphenol-icc.com
appr
projection
PCIe COOL EDGE CONNECTOR
1.0mm PITCH,X8,Gen4 & Gen5
product family
3
rel level
dwg no
PITCH=1.00
SIDE A
GND PIN
title
(0.30 )TYP
D
Creo File:APH-A3C,REV B,2021-05-07
B
GND PIN DIFINITON
1.50
C
2021
Amphenol Corporation
1.20
1.50
C
4.40 0.20
(0.70 )
(7.05 )
(7.05 )
(0.70 )
YYMMDDL
2.45
10.45
DATE CODE
4.40 0.20
(38.65 )
(11.65 )
scale
1:1
size
A3
CD2675
RELEASED
C CEE0098X014XXXX
rev
cat. no.
PCIe COOL EDGE
4
sheet 2 of 5
6
D
1
2
3
4
A
A
B11
(SEE TABLE 1)
1.50
A # 0.05
(SEE TABLE 1)
12.15 0.10
A # 0.05
(SEE TABLE 1)
1.50
0.50x45 $
TYP
PITCH=1.00
39.15 0.10
20 $ 5
$
1.50
1.50
ITEM/DIM
PCIe Gen4
A1
A11
B
TABLE 1
5.60
C
PCIe Gen5
A49
A12
A
(Gold Finger Length)
B
(Gold Finger Width)
3.91 # 0.05
3.20 # 0.05(A1 and B48)
0.70 # 0.05
3.00 # 0.05
0.60 # 0.05
C
RECOMMENDED LAY OUT FOR MATING CARD,THICKNESS=1.57 # 0.15mm
GENERAL TOLERANCE # 0.05
tolerance std
TOLERANCES UNLESS
OTHERWISE SPECIFIED
0.X
surface
linear
0.XX
0.XXX
angular
Creo File:APH-A3C,REV B,2021-05-07
1
2
0 $
dr
JERRY.QU
Jun.05,2021
eng
JERRY.QU
Jun.05,2021
mm
rvwr
ecn no
amphenol-icc.com
appr
projection
PCIe COOL EDGE CONNECTOR
1.0mm PITCH,X8,Gen4 & Gen5
product family
3
rel level
dwg no
spec ref
D
title
C
2021
Amphenol Corporation
B49
B12
1.57 0.15
GOLD FINGER TO
GOLD FINGER
B1
# 0.05
5.60
8.40 Min
B
B
1.90 0.05
1.30 0.25
R1.0
scale
1:1
size
A3
CD2675
RELEASED
C CEE0098X014XXXX
rev
cat. no.
PCIe COOL EDGE
4
sheet 3 of 5
6
D
1
2
3
4
A
42.00
2x2.90 0.05
A1
A11 A12
B1
B11 B12
ROUTING KEEP OUT FOR
HIGH-SPEED SIGNAL
(OPTIONAL)
2x3.80 0.05
0.55 0.03
A49
B49
PLACEMENT KEEP-OUT ZONE
1.65 0.03
54.00
1.95 0.05
B
1.50
C # 0.05
(SEE TABLE 2)
3.60
# 0.05
D
1.50
F
(SEE TABLE 2)
A
-P-
1.55 0.05
62.90 0.05
(63.40 )
RECOMMENDED SOLDER PCB LAYOUT
C
C
ITEM/DIM
SHORTER TAIL
STANDARD TAIL
tolerance std
TOLERANCES UNLESS
OTHERWISE SPECIFIED
0.X
surface
linear
0.XX
0.XXX
angular
Creo File:APH-A3C,REV B,2021-05-07
1
2
0 $
dr
JERRY.QU
Jun.05,2021
eng
JERRY.QU
Jun.05,2021
C
(Pad Length)
1.20
1.90
D
6.00
7.40
E
F
3.00
6.55
3.70
rvwr
ecn no
amphenol-icc.com
appr
projection
7.95
mm
PCIe COOL EDGE CONNECTOR
1.0mm PITCH,X8,Gen4 & Gen5
product family
3
rel level
dwg no
spec ref
D
title
C
2021
Amphenol Corporation
TABLE 2
scale
1:1
size
A3
CD2675
RELEASED
C CEE0098X014XXXX
rev
cat. no.
PCIe COOL EDGE
4
sheet 4 of 5
6
D
1
2
3
4
320.0
96.5
96.5
15.0
A
21.0
21.0
16.8
220.0
A
330.0
90.0
120.0
90.0
PART NUMBER SYSTEM
PACKING TRAY CODE: 1
PART NUMBER SYSTEM
PACKING TRAY CODE: 0
0
C
2021
Amphenol Corporation
1
TRAY SIZE
(LxWxH)
QTY
(PCS/TRAY)
QTY
(PCS/CARTON)
330x120x21
15
240
320x220x21
30
300
spec ref
D
tolerance std
TOLERANCES UNLESS
OTHERWISE SPECIFIED
0.X
surface
linear
0.XX
0.XXX
angular
Creo File:APH-A3C,REV B,2021-05-07
1
2
0 $
C
NOTE
ANTI-STATIC PS,BLACK,T=2.00;BLISTER TRAY
ANTI-STATIC PS,BLACK,T=2.00;BLISTER TRAY
dr
JERRY.QU
Jun.05,2021
eng
JERRY.QU
Jun.05,2021
mm
rvwr
ecn no
amphenol-icc.com
appr
projection
PCIe COOL EDGE CONNECTOR
1.0mm PITCH,X8,Gen4 & Gen5
product family
3
rel level
dwg no
PART NUMBER SYSTEM
PACKING CODE
title
C
B
scale
1:1
size
A3
CD2675
RELEASED
C CEE0098X014XXXX
rev
cat. no.
PCIe COOL EDGE
4
sheet 5 of 5
6
D
