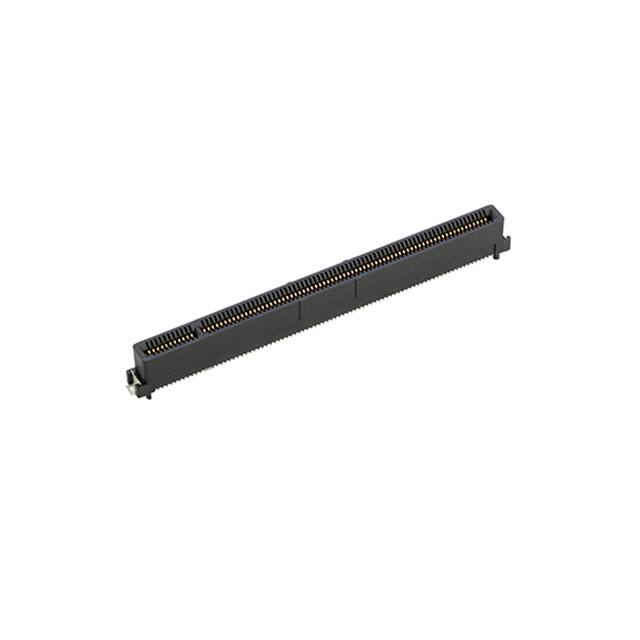

Cool Edge 1.00mm PCIe® Connectors HIGH SPEED SPACE-SAVING CONNECTOR FOR BOARD-TOBOARD APPLICATIONS Cool Edge PCIe® connectors bring high speed PCIe® support into a one-piece card edge package with 16GT/s Gen 4 and 32GT/s Gen 5 capabilities. Slim connector design saves space on the motherboard while facilitating other higher density applications. These connectors come with a simple housing design with an overall reduced footprint, providing additional benefits over standard PCIe® CEM solutions. The conductive plastic design of these connectors provide enhanced signal integrity. The contact pads extend outwards from housing, making inspection easier. § Provides standard and short solder tail versions § Supports speeds up to 32GT/s § Saves more space than standard PCIe® solution § Enhanced signal integrity using conductive plastic design § Simple housing design allows vertical AOI inspection TARGET MARKETS FEATURES BENEFITS § 1.00mm signal pin pitch based on PCIe® interface § Supports board-to-board applications § 1.1A per pin for power application § 0.7A per pin for signal application § Supports speeds from 16GT/s, up to 25GT/s and 32GT/s § Backward compatibility with PCIe® Gen 3 and forward compatibility with PCIe® Gen 5 § PCIe® slots of x8, x16 and x24 § Supports most add-in card and next generation GPU applications § Supports 1.60mm thick mating board § Multiple applications served, from ICT to Consumer § Slim connector design: height 9.60mm; width 5.80mm; § Saves more space than standard PCIe® with slimmer form length 95mm § Simple housing design in vertical configuration factor, smaller width and footprint § Allows for easy Automated Optical Inspection (AOI) of the connector § Connector design with conductive plastic at the base § Provides good signal integrity performance at high speeds up to 32GT/s § Contact pads extend outwards from housing § Makes inspection easier compared to standard PCIe® § Short solder tail version available § Good for short riser card fanout and routing at PCB edge www.amphenol-icc.com Amphenol Information Communications and Commercial Products Cool Edge 1.00mm PCIe® Connectors TECHNICAL INFORMATION MATERIAL SPECIFICATIONS § Contact Base Metal: Copper alloy § Amphenol Product Specification: SCE009 § Contact Area Finish: Gold over nickel ENVIRONMENTAL § Solder Area Finish: Tin over nickel § Temperature Life: 105±2˚C for 240 hours. Per § Housing: High temperature thermoplastic EIA 364-17 (UL 94V-0) § Thermal Shock: 10 cycles between -55˚C to +85˚C. Per EIA 364-32 ELECTRICAL PERFORMANCE § Humidity: 24 cycles between 25±3˚C at 80±3% § Contact Resistance: RH and 65±3˚C at 50±3% RH. Per EIA 364-31 § 30mΩ max. § Mixed Flow Gas § 10mΩ max. change after test PACKAGING § Current Rating: 1.1A per pin for power application/0.7A per pin for signal application with temperature rise not exceeding 30°C § Tray TARGET MARKETS/APPLICATIONS § Dielectric Withstanding Voltage: 500V Baseband Commercial Systems Networking Radio Units MECHANICAL PERFORMANCE § Durability: 200 mating cycles § Mating Force: 0.6N/pin max. for signal pin High-end Computing System Server and Storage Systems § Unmating Force: 0.06N/pin min. for signal pin PART NUMBER SELECTOR XXX X PCIe® Cool Edge 014 X X Plating Specification 0 Cap 1 0.76μm Au 1 Mylar 2 0.38μm Au 3 Gold flash 098 98 pins 164 164 pins 230 230 pins Packaging Type (Detail tray dimension refers to generic drawing) Tray 1 1 Tray 2 2 Tray 3 X CAP&Mylar Signal Pin Count 0 X www.amphenol-icc.com Speed Performance 0 32Gb/s 1 16Gb/s Solder Tail 1 STD Tail and soft tray 2 STD solder tail and hard tray 3 Short solder Tail and hard tray Disclaimer Please note that the above information is subject to change without notice. SSIOCOOLPCIE0120EA4 CEE0
