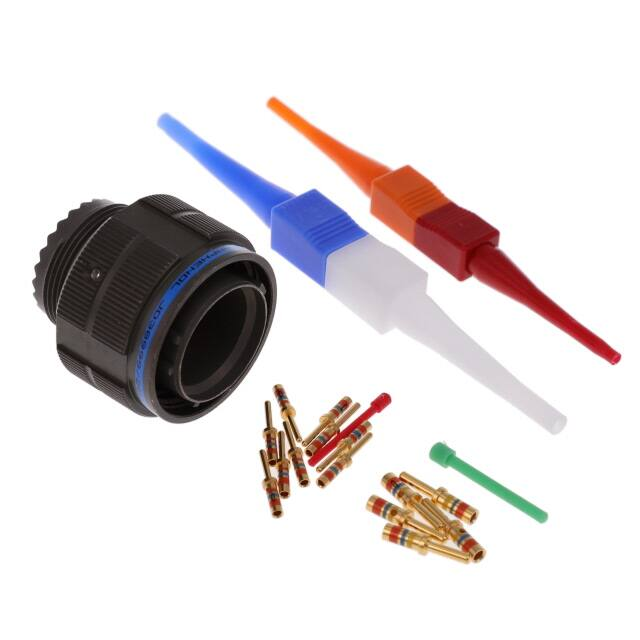

D38999/26WD97PN

D38999 – TV-CTV MIL-DTL-38999 Series III Applications • High Performance Military Aircraft • Commercial Airlines • Communications Equipment • Armored Personnel Carriers & Tanks • Missiles • Shipboard Features High Reliability D38999 - TV style connectors are used in performance aircraft that demand reliable connections in some of the most rigorous environments. The connectors must perform flawlessly under wide temperature ranges, high vibrations and be resistant to a vast array of contaminants. Visual confirmation of complete mating is accomplished by the plug coupling nut covering over a red band on the mating shell. Self-Locking Connector Systems Self-locking coupling nuts and self-locking endbell accessory hardware provide the best performance for threaded connectors in high vibration applications. Outstanding EMI Shielding Protection These connectors provide excellent signal integrity due to the shielded mating system that utilizes 360 degree shell grounding fingers providing protection of up to 65 dB at 10 GHz. Operates at Extreme Temperatures These connectors will operate in temperatures from -65°C up to 200°C (-85°F up to 392°F). High Density Connectors If space and weight are at a premium, TV connectors offer up to 128 contacts per connector. Ideally suited for the demands of today’s digital electronics used on fly-by wire aircraft, advanced robotics, and critical industrial equipment. Broad Range of Military and Commercial Accessories Many military standard endbells to M85049 specifications and a wide array of cable termination style are available. Straight, 45 and 90 degree endbells come in many styles from low cost standard clamp to shielded environmentally sealed and everything in between. Contacts Protection TV connectors are designed to be scoop proof. Pin contacts are recessed to prevent contact damage and contact shorting from happening when connector halves are put together while mating. MIL-DTL-38999 approved TV’s are fully intermatable and intermountable with all other manufacturer's MIL-DTL-38999 Series III connectors. D38999 – TV-CTV MIL-DTL-38999 Series III TV MIL-DTL-38999 Series III connectors offer high density contact arrangements in a miniature circular shell. Originally designed for the especially demanding requirements of today’s high performance military and commercial aircraft, these connectors are finding their way into applications needing extremely reliable interconnections. TV’s features include, total environmental sealing, wide operating temperature range (-65°C up to 200°C), quick-mating, triple lead threaded, self-locking coupling, 100% scoop proof shell design, EMI - RFI shielding, and are available in a ruggedized 500 hour salt spray plating or 1000 hour salt spray material. ▲ 207 For price & delivery: 800-642-8750 • For tech support: 800-523-0727 • www.PeiGenesis.com Specifications subject to change. Technical Specifications MATERIALS AND FINISHES Shell & Plating Aluminum Alloy Composite Stainless Steel Marine Material W - Olive drab Chromate over Cadmium over Electroless Nickel per QQ-P-416 W52 - Olive drab Zinc cobalt F - Electroless Nickel per QQ-N-290 J - Olive drab Cadmium Plate per QQ-P-416 K - Conductive, Corrosion Resistant Steel, Passivated RB - Nickel Aluminum Bronze M - Conductive Electroless Nickel Plating S - Electrodeposited Nickel per QQ-N-290 Contacts Copper alloy Plating Insulator Gold plated, 50 microinches per MIL-G-45204 type II, grade C, class I Hard dielectric wafer which contains tines for high reliability retention of crimp contacts Grommet & Seals Silicone based elastomer D38999 – TV-CTV MIL-DTL-38999 Series III Grounding Springs Beryllium copper (Grounded Plug Only) ELECTRICAL DATA Contact Sizes 22D, 20, 16 and 12 Operating Voltage & Test Voltage (Unmated Condition) Service Rating Test Voltages N M I II Sea Level 100,000 feet 1000 200 1300 200 1800 200 2300 200 Current Rating by contact size and wire accommodation (Test Amps) Wire Size 22D 20 16 12 28 26 24 22 20 18 16 14 12 1.5 2.0 3.0 5.0 - 3.0 5.0 7.5 - 7.5 10.0 13.0 - 17.0 23.0 Contact Resistance of mated contacts end to end Insulation Resistance ▲ Maximum Millivolt Drop 22D 20 16 12 40 35 25 25 5,000 megohms minimum MECHANICAL Operating Temperature Sealing Wire Sealing Range Contact Size W, W52, RB & J plating -65°C to 175°C (-85°F to 347°F) F, M, K & S plating -65°C to 200°C (-85°F to 392°F) Against sand, dust per MIL-STD-202 & ice resistance Contact Size Minimum inches Maximum inches Minimum mm Maximum mm 22D 20 16 12 10 8 (coax) 8 (twinax) 0.030 0.040 0.065 0.097 0.135 0.135 0.124 0.054 0.083 0.109 0.142 0.162 0.155 0.134 0.76 1.02 1.65 2.46 3.42 3.43 3.15 1.37 2.11 2.77 3.61 4.12 3.94 3.40 208 For price & delivery: 800-642-8750 • For tech support: 800-523-0727 • www.PeiGenesis.com Specifications subject to change. Technical Specifications Contact Size Insulation Strip Length Strip Length 22D 20 16 12 Mating Life Salt Spray Temp. Durability .125 (3.18) .188 (4.77) .188 (4.77) .188 (4.77) 500 cycles minimum Finish W & W52: 500 hour per MIL-STD-1344A method 1001 condition C Finish F: 48 hour per MIL-STD-1344A method 1001 condition B Finish J & M: 2000 hour per MIL-STD-1344A method 1001 condition C Finish S & K: 2000 hour per MIL-STD-1344A method 1001 condition C Finish RB: 500 hour per BS CECC 75201-002 Finish W 175°C (347°F), Finish F 200°C (392°F), mated, wired test period 1000 hours to MIL-STD-1344 Method 1005 Finish M, K & S: 200°C (392°F) Finish J, RB & W52: 175°C (347°F) Sine Vibration 60g at -55°C per MIL-DTL-38999K 4.5.22.2.1 Random Vibration 49.5 grms at ambient temperatures Shock EMI Shielding Effectiveness 300 grms 100 MHz to 10 GHz - minimum attenuation of 50dB Contact Type Crimp, fiber optic, coax, twinax, or printed circuit Number of Circuits 2 to 128 Contact Insertion Rear Insertion/Rear Extraction with simple plastic or high quality metal hand tools. Contact Retention Per MIL-DTL-38999K tested to MIL-STD-1344A method 2007 Contact Axial load Newtons ±10% Axial load Pounds ±10% 22D 20 16 12 44 67 111 111 10 15 25 25 Polarization Five keyways with optional master keyway rotations (Note insert and main keyways remain fixed) Approvals MIL-DTL-38999 All dimensions in inches (millimeters in parenthesis) Cross Section Scoop Proof Design Peripheral Sealing Gasket Pin Contacts are recessed to protect from shortening and damage when mating. Plug Barrel Spring Fingers (EMI/RFI) Socket Contact Triple Lead Thread Pin Contact Coupling Nut Stainless Steel Contact Shroud Silicone Wire Sealing Grommet Rigid Hard Dielectric Insulator Lead-in Chamfer Guides contacts together when mating. Interfacial Seal Multiple-Tine Retaining Clip Receptacle Shell Assures positive retention with inwardly deflecting tines that lock securely behind contact shoulder. D38999 – TV-CTV MIL-DTL-38999 Series III Chemical Resistance Lubricating oils, hydraulic fluids, coolants, deicing fluids per MIL-STD-1344A Method 1016 condition a-1 ▲ Five Keys and Keyway One Major/Four Minor assure proper alignment of connector halves before contact engagement. 209 For price & delivery: 800-642-8750 • For tech support: 800-523-0727 • www.PeiGenesis.com Specifications subject to change.
