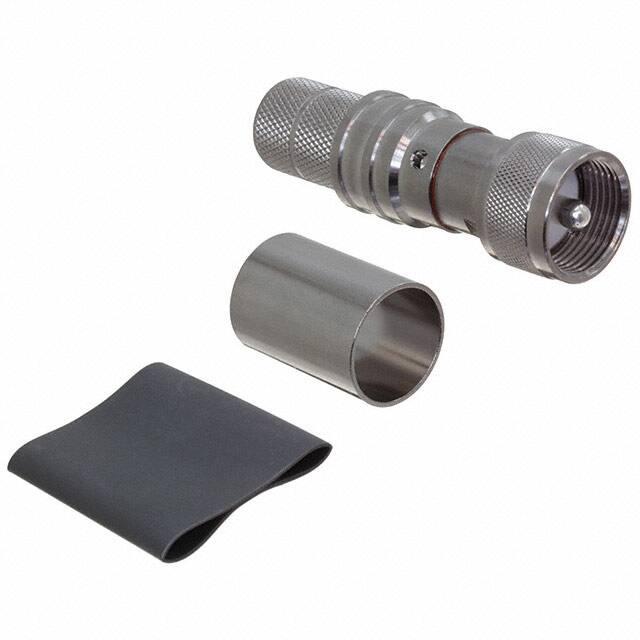

EZ-600-UM-X

8 7 6 5 4 3 1 2 NOTICE OF PROPRIETARY RIGHTS THIS DOCUMENT CONTAINS CONFIDENTIAL DATA, INCLUDING TRADE SECRETS, PROPRIETARY TO TIMES MICROWAVE SYSTEMS. DISCLOSURE OF THIS DATA IS EXPRESSLY CONDITIONED UPON YOUR ASSENT THAT ITS USE IS LIMITED TO USE WITHIN YOUR COMPANY ONLY. ANY OTHER USE IS STRICTLY PROHIBITED WITHOUT THE PRIOR WRITTEN CONSENT OF TIMES MICROWAVE SYSTEMS. VER Description A Initial Released ECN N/A Name Patrick Date 2018/10/20 F F ferrule 12 Flats [.472] 3.50 REF. .138 D 12.20 .480 18 .709 17.40 .685 16 .630 17.50 .689 E UHF plug 14.05 .553 E 24.50 .965 D 58 REF. 2.283 C B II. ELECTRICAL PROPERTIES I. MATERIALS & FINISHES Component Body Contact Pin Material Brass Phosphor Bronze Finishes Sn-Ni Silver Thk. (u") 100 200 Impendance (Ω): Frequency Range (GHz): Dielectric Withstanding Voltage (V r.m.s): 50 DC~3 GHz 2000 Insulator Coupling Nut Ferrule PTFE Brass Copper -Sn-Ni Sn-Ni -100 100 Insualation Resistance (MΩ): VSWR: Insertion Loss (dB, f / GHz): ≥10000 ≤1.30 (DC~2.45 GHz) -0.1 x sqrt (f) 6.35 .250 deburr III. ENVIRONMENT PROPERTIES Temperature Range: Thermal Shock: Vibration: Shock: Climatic Class: RoHS: -40℃~+125℃ MIL-STD-202, Meth. 107, Cond. B MIL-STD-202, Meth. 204, Cond. B MIL-STD-202, Meth. 213, Cond. G IEC 60068 55/155/21 Compliant Center Conductor: Outer Conductor: Couping Nut Torque (in·lbs): Cable-Connector Retention Force (lbs): Durability (Cycles): RECOMMENDED CABLE STRIPPING DIM'S Connector Adds: 34.95 mm Spring Finger Crimp N/A 200 500 Compatible with Standard: IEC 60169-12 UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE IN mm MACHINED SURFACES FINISH 1.6 RMS MAX. REMOVE ALL BURRS 0.15X45˚ MAX. BREAK MACHINE CORNERS 0.15X45˚ D MAX. FILLET R. TOLERANCES ON DECIMALS .X ±0.1 .XX ±0.15 ANGLES ±2° FRACTIONS ± N/A Stripping Tool: 3192-052/CST-600 Crimping Tool: 3192-170/CT-600 Heat Shrink Tube: 1"x2" (3:1) 1 pcs Scale: 8 B IV. MECHANICAL PROPERTIES V. Tooling & Accessories A C 25.40 1.000 7 6 5 4 3:1 Size: 3 A3 CODE IDENT 68999 DFTM Patrick DATE 2018/10/20 CHKD Monica TIMES MICROWAVE SYSTEMS An Amphenol Company A EZ-600-UM-X DATE 2018/10/20 APPD Joslen UHF Male (Plug) Straight Non-Solder Pin No Braid Trim Connector for LMR600 Cable DATE 2018/10/20 SHT 2 1/1 3190-8036 1 REV A
