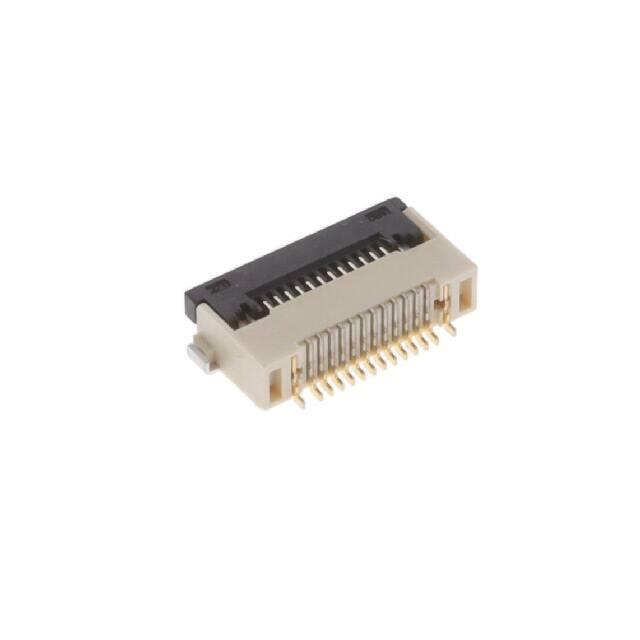

F304-1A7H1-11012-E100

0.50mm Pitch FFC/FPC - F304 Series RIGHT ANGLE ZIF FLEX CONNECTOR F304 series is a 0.50mm pitch right angle ZIF flex connector with a front flip locking mechanism, dual beam and double contact points. It features surface mount termination with a height of 2.50mm and comes in 10 to 60 contacts. This series features a cable thickness of 0.30mm and provides durability of 20 mating cycles. The connectors come with a robust design and prevent solder and flux wicking. These are ideal for automotive, data, industrial, communication, consumer and medical applications. §§Easy to operate and strong FFC/FPC retention makes it vibration-proof §§Dual beam and double contact points provide enhanced contact stability TARGET MARKETS §§Ensures high solderability and high durability FEATURES §§ZIF (Zero Insertion Force) mechanism §§Front flip locking function BENEFITS §§Absence of frictional mating wear results in high mating cycle life §§Easy to operate and strong FFC/FPC retention makes it vibration-proof §§Dual beam and double contact points §§Ensures enhanced contact stability §§Design against solder and flux wicking §§Ensures high solderability §§High-temperature thermoplastic housing §§Wide operating temperature range of -40°C to +105°C §§10 to 60 positions available §§Lead and halogen-free www.amphenol-icc.com §§Comprehensive range to satisfy different customer requirements §§Meets environmental, health and safety requirements Amphenol Information Communications and Commercial Products 0.50mm Pitch FFC/FPC - F304 Series TECHNICAL INFORMATION MATERIAL PACKAGING §§ Housing: LCP, natural color (UL94V-0) §§ Tape & Reel §§ Actuator: PA9T, black color (UL94V-0) APPROVALS AND CERTIFICATIONS §§ Contact: Phosphor bronze, T=0.15mm §§ UL file number E106764 §§ Anchor-plate: Brass, T=0.15mm §§ RoHS compliant §§ Mylar: T=0.10mm, thermostable, yellow SPECIFICATION color MECHANICAL PERFORMANCE §§ Aorora Product Specification: IS.EQC.125 §§ FFC/FPC Retention Force: 40gf/pin ENVIRONMENTAL §§ Terminal Retention Force: 100gf/terminal §§ Operating Temperature Range: -40°C to +105°C min. TARGET MARKETS/APPLICATIONS §§ Anchor-plate Retention Force: 100gf/plate min. Router Server ODD HDD Car Multimedia Car Navigation Dashboard PND §§ Durability: 20 mating cycles ELECTRICAL PERFORMANCE §§ Voltage Rating: 50V AC/DC Sensing element Monitoring camera Human Machine Interface Industrial PC Robotics Base Station Power Switches §§ Current Rating: 0.5A §§ Contact Resistance: Initial : 40MΩ max., Notebook Tablets Wearables Gaming DSC LCD & PDP TV after each test: 80MΩ max. §§ Insulation Resistance: 100MΩ min. §§ Dielectric Withstanding Voltage: No short or breakdown after 500V AC, 2mA, 1min. Ultrasonic Patient Monitor MRI CT Infusion Pump PART NUMBER SELECTOR F 3 04 1 A 7H 1 1 1 0 XX Number of positions Product type 1 Pitch 0.50mm 0 0 1 With mylar 2 Without mylar Lead free Plating 7H Product family F 1 X Phosphor bronze 0.05μm min. Au (Au Area) FPC/FFC Connector Housing color A AORORAF3040719EA4 3 Reel E Natural Housing material 1 LCP www.amphenol-icc.com Disclaimer Please note that the above information is subject to change without notice.
