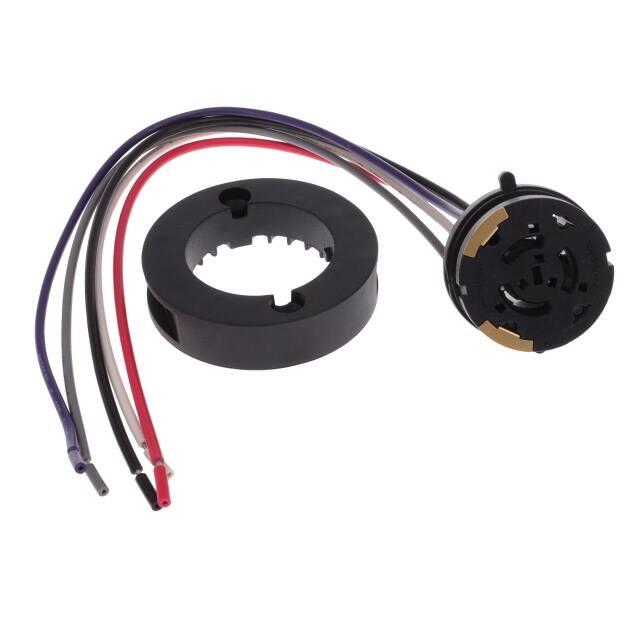

FLA-R2161-30

FLA Dimming Receptacle-ANSI C136-41 Product Specification S6143C Rev 1.5 About Amphenol Commercial Products Amphenol’s commercial connector products are used in a variety of end user applications including networking, telecom, server & computer, storage & HDD, consumer electronics and entertainment, professional audio & Industrial & Military/Aerospace. MRJ/MRJR PCB Options Overview MRJR-8780-01 CAT5e RJ45 on PCB with Matching RJ45 This product specification defines the general use and performance parameters for Amphenol’s Dimming Receptacles’ as per ANSI C136-41 Availability: ▪ ▪ ▪ ▪ MRJR-5580-01 Standard RJ45 on PCB with Matching Cable Header 3 power contacts and 4 dimming contacts 3 Power contacts and 2 dimming contacts 3 power contacts and no dimming contacts Please refer to the part numbering codes for the options available at the end of this document Usage This ANSI C136-41 Receptacle to be used with external locking type ANSI standard dimmable photocells for street and area lighting equipment. Locking type receptacle as per ANSI C136-10 Applications Intended for use in applications such as: ▪ Roadway Lighting ▪ Area lighting MRJR-5980-01 Standard RJ45 on PCB with Matching Terminal Block MRJR-5C80-01 Standard RJ45 on PCB For Discrete Wiring Revision Date: September 24th, 2019 Page 1 of 3 S6143C Rev 1.5 About Amphenol Commercial Products Amphenol’s commercial connector products are used in a variety of end user applications including networking, telecom, server & computer, storage & HDD, consumer electronics and entertainment, professional audio & Industrial & Military/Aerospace. Related Products MUSBR-XHD Series Electrical Characteristics Power Contact Current Rating: Power Contact Voltage Rating: Dimming Contact Voltage Rating: Contact Resistance (LLCR): Insulation Resistance: Dielectric Withstanding Voltage: 15A max per circuit @ 25°C, 30°C max ΔT 600 VAC / VDC 30 VDC Δ30mΩ max 500 MΩ min @ 500 VDC test voltage 2500 VAC Mechanical Characteristics Thermal Shock: Humidity: Mechanical Shock: Vibration with Load: Salt Spray: Durability: Operating Temperature: Temperature Rise: 25 cycles between -40°C and +105°C, per EIA-364-32 Per EIA-364-31, Method IV, Cond. B, Omitting 7b 30 G’s, ½ sine, 11 ms, per EIA-364-27 15 A load, per EIA-364-28, Cond. I 240 hrs, per EIA-364-26 25 cycles, per EIA-364-09 -40°C to +105°C 30°C max ΔT @ rated current, per EIA-364-70 Assembly Process Characteristics MUSBR-AHD2-821XX Thumb Screw, Translucent Colour Recommended Torque for Mount Screws: 1 to 2 Nm (8.8-17.6 lb in.) Material Characteristics MUSBR-AHD2-221XX Cap Screw, Black Colour MUSB Series FLA Receptacles are RoHS compliant per EU directive 2011/65/EU and amendments. Unless otherwise specified, the materials for each component shall be: ▪ Dimming Contacts: Phosphor Bronze with 0.76 (30µ”) or 0.38 µm (15µ”) min Gold over 1.27µm (50µ”) min Nickel ▪ Power Contacts: Phosphor Bronze with 2.54 µm(100µ”) matte tin over 1.27µm (50µ”) min Nickel ▪ Housing: High temperature thermoplastic, UL94V-0 rated, black ▪ Wires as per Product Part Numbering System below MUSB-B151-34 Mini-B USB, Right Angle PCB Tail MUSB-C111-30 Stacked Type-A USB, Right Angle PCB Tail Amphenol Canada Corp. 605 Milner Avenue Toronto, Ontario, Canada, M1B 5X6 +1 416 291 4401 Page 2 of 3 Copyright © Amphenol Corporation 2019 • All rights reserved www.amphenolcanada.com THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE OR USED FOR MANUFACTURING PURPOSES WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP. S6143C Rev 1.5 Product Part Numbering System Series FLA FLA - X XX X - XX FLA series Dimming Control Locking Type Receptacles Number of Dimming Contacts No dimmable contacts 0 2 Dimmable Contacts 2 4 Dimmable Contacts 4 Power contact wire gauge 14 AWG 14 16 AWG 16 Operating Temperature -40 to 105°C - UL AWM style wire 1015/10070 - 600VAC 1 -40 to 150°C - UL AWM style wire 3289 - 600VAC 2 -40 to 125°C - UL AWM style wire 3173 - 600VAC 3 Connector wire length 305 mm 30 Amphenol Canada Corp. 605 Milner Avenue Toronto, Ontario, Canada, M1B 5X6 +1 416 291 4401 Page 3 of 3 Copyright © Amphenol Corporation 2019 • All rights reserved www.amphenolcanada.com THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE OR USED FOR MANUFACTURING PURPOSES WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
