NTC Type JI/JIC
Waterproof IP68 Temperature Sensor
Overmolded NTC Thermistor
NTC Type JI

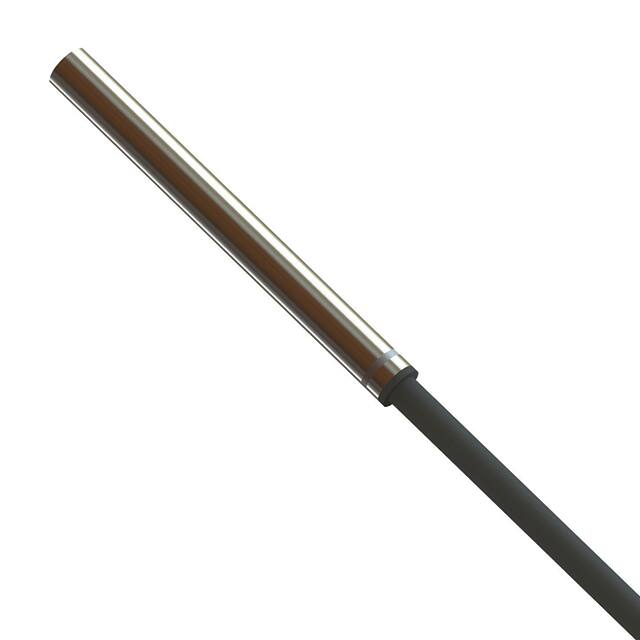

NTC Type JIC
Type JI: The NTC thermistor is molded onto a
flexible circular cable. The tip and outer cable
insulation material is thermoplastic elastomer
rubber. The tinned copper conductors have
individual polypropylene insulation.
Type JIC: The NTC thermistor is molded onto a
flexible circular cable housed in stainless steel.
The tip and outer cable insulation material is
thermoplastic elastomer rubber. The tinned copper
conductors have individual polypropylene insulation.
Features
Applications
• Waterproof to IP68
• Ventilation
• Withstands freeze/thaw cycling
• Refrigeration
• Range of wire lengths 300 mm to 5000 mm
(11.8 in to 16.4 ft)
• Heat pumps
• Halogen-free cable
• Sensor tip and extension cable molded
together as one hot vulcanised unit
• RoHS compliant
• Water heaters
• Weather stations
• Outdoor temperature measurement
• Under-floor heating
• Fish tanks
• Evaporators
Options
• Other resistance - temperature characteristics
• Other wire lengths
Amphenol
Advanced Sensors
• Other housing lengths
NTC Type JI/JIC Specifications
Temperature Range: -50°C to +105°C (-58°F to 221°F)
continuous (125°C/257°F up to
maximum 6 hours)
Dielectric Strength: 3750V AC
Cable Type:
2 x 0.30 mm2 (23 AWG)
7 x 0.23 mm diameter (0.30 mm )
R25°C (R77°F)
2
NK103C1R2
DC95F103WN
10kΩ ± 2%
10kΩ
Tolerance 0°C - 70°C
B value 25/85°C (R77/185°F)
Material
Resistance characteristics and wire length are specified
by the product code as per the table below:
Code Assembly Type
Insulation Resistance: >100MΩ at 1000V DC
Wire Conductors:
Ordering Information
±0.2°C
3977K
3969K
1
F
For complete RVT Table, refer to document AAS-913-318.
JI
Double-insulated sensor with rubber tip
JIC
Double-insulated sensor with Stainless Steel housing
Code
103C1R2 NK103C1R2
Thermistor Type
F103W DC95F103WN
Code
Wire Length mm (in)
L301
300 (11.8) ± 10 (0.4)
L102
1000 (39.4) ± 20 (0.8)
L252
2500 (98.4) ± 50 (2.0)
___ - ______
-
______
Typical Model Number
Other wire lengths are available for quantities > 5000 pieces.
NTC Type JI - Dimensions
Amphenol
Advanced Sensors
NTC Type JIC - Dimensions
