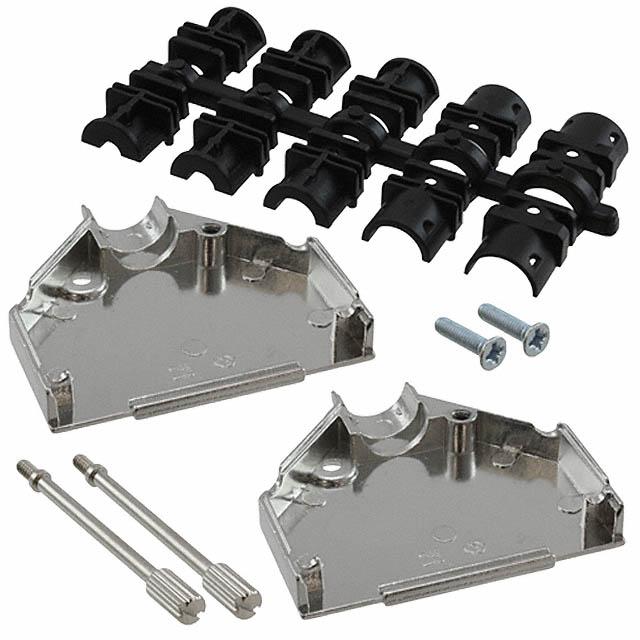

L17DTZK25KFMT

D’Sub Metallic Hoods Material and plating: Zinc die-cast, nickel plated • Cable strain relief: Steel fiber reinforced Polycarbonate UL94V-O • Temperature range: -40˚C to 120˚C • Amphenol metallic hood series for D’Sub connectors offers protection from magnetic and radio interference for cable assemblies. Easily assembled, these hoods are suitable for all industrial and telecom applications. Cable diameter: 3 to 13mm • Attenuation factor: > 40 dB between 30 MHz and 1 GHz Approvals: VDE 0871 - FCC 20780 - 89 / 336 / EU Shield your cable assemblies! • Industrial • Military • Telecom • Any application requiring EMI/RFI protection D’SUB ACCESSORIES / E23 • APPLICATIONS MAIN CHARACTERISTICS • DESCRIPTION DTZK & DVZK series See Below Metal or Plastic knob B A Part number A L17DTZK9Kxx 31 (1.220) 38.3 (1.508) L17DTZK15Kxx 39.5 (1.555) 40.5 (1.594) L17DTZK25Kxx 53.4 (2.102) 48.3 (1.901) L17DTZK37Kxx 70.9 (2.791) 52.2 (2.055) #4-40 B 45.50(1.791) 4.40(.173) 51.10(2.012) 14.5 (.571) #4-40 XX = Blank for Plastic knob, FM for Metal knob DVZK Series See Below 14.5 (.571) A #4-40 Part number A B L17DVZK9Kxx 31 (1.220) 36.2 (1.425) L17DVZK15Kxx 39.5 (1.555) 40.2 (1.583) L17DVZK25Kxx 53.2 (2.094) 40.2 (1.583) L17DVZK37Kxx 69.7 (2.744) 40.2 (1.583) XX = Blank for Plastic knob, FM for Metal knob 32.00(1.26) 4.40(.173) 9 size equipped with only one screw 32.5(1.279) OVERALL DIMENSIONS DTZK Series #4-40 B Type A L17DTZK9Kxx 30 L17DTZK15Kxx (1.181) L17DTZK25Kxx 40 L17DTZK37Kxx (1.575) TECHNICAL DATA Assembly Instructions DTZK Series 1. 12~20 (.472~.787) A 2. 4. D’SUB ACCESSORIES / E23 3. 1. 12 ~ 20 (.475 ~ .787) A 3. 4. Type A L17DVZK9Kxx 30 L17DVZK15Kxx (1.181) L17DVZK25Kxx 45 L17DVZK37Kxx (1.772) Do not hesitate to contact us for further information Amphenol IT & Communication Products Block A3/A4, The 4th Industrial District of Industrial Headquarters, Dong Keng Road Gong Ming Town, Shen Zhen China Fax:+86(0)755 2754 9955 Technical Support Tel:+86(0)755 2717 7945 Info-dsub@amphenol.com.cn http://www.dsubconnector.com The information given in this document are as a guideline only. We reserve the right to modify our products in any way we deem necessary. Any duplication is prohibited, unless approved in writing. 2. E23/F TECHNICAL DATA Assembly Instructions DVZK Series
