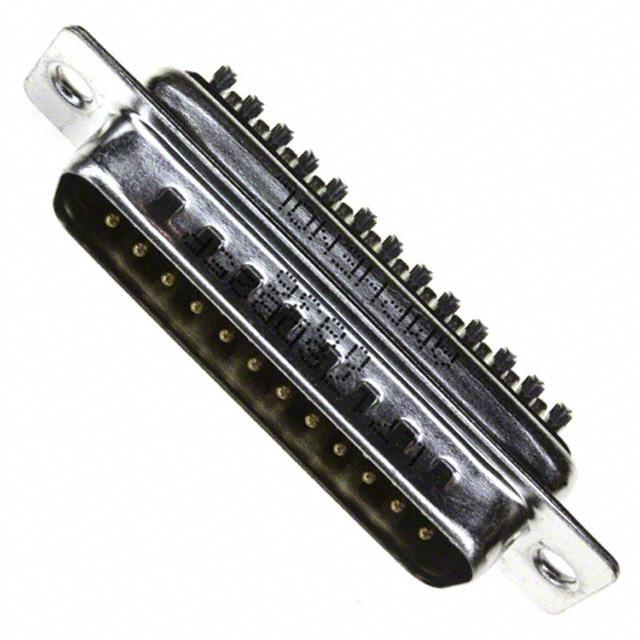

L717SDB25P

SD D'Sub connectors - Stamped and Formed Contacts • Connectors according to: MIL C24308 - NFC 93425-HE5 Materials and Platings Shells Insulator Pin contacts Socket contact Rear insert Screwlock Steel, tin over nickel plating Glass-filled thermoplastic, UL 94V-0 Brass, selected gold in mating area; 2.54µm (100µ") min. tin on termination area over 1.27µm (50µ") min. nickel Phosphor bronze, selected gold in mating area; 2.54µm (100µ") min. tinon termination area over 1.27µm (50µ") min. nickel Brass, 2.54µm (100µ") min. nickel plated Brass, 2.54µm (100µ") min. nickel plated DESCRIPTION Specifications Current rating Voltage rating Withstanding voltage Insulation resistance Contact resistance The Amphenol "SD" series features precision formed contacts, and insulator with closed entry contacts cavities. This series gives you Amphenol's high standards of quality and reliability to meet all of your commercial requirements. Economical solder cup connectors Electrical Data Standard Density: 5A High Density: 3A 250V AC/rms 50Hz 1000V AC/rms 50Hz for one minute 1000MΩ at 500V DC 20mΩ max Climatic Data Mechanical Data Single contact insertion force Single contact withdrawal force 0.54kg (1.19lb) max SD : 0.06kg (0.13lb) min HD : 0.02kg (0.044lb) min Mating and unmating force Unit: kg ( lb) No. of Cts SD HD 9 15 25 37 50 15 26 44 62 78 SD Mate (max) Unmate (min) 3.05 (6.74) 5.09 (11.24) 8.44 (18.66) 12.51 (27.65) 14.65 (32.38) Standard plating thickness 0.36 (0.79) 0.46 (1.01) 0.81 (1.8) 1.1 (2.47) 1.6 (3.56) HD Mate (max) Unmate (min) 3.81 (8.42) 5.95 (13.16) 9.26 (20.46) 13.48 (29.78) 15.82 (34.96) • gold flash • 0.4µm (15µ") gold • 0.76 µm (30µ") gold 0.52 (1.14) 1.05 (2.32) 1.37 (3.02) 1.76 (3.88) 2.02 (4.46) • Industrial • Telecom • Any industry standard I / O connections SD / E5 Operating temperature -55°C to +125°C Salt spray 24 hours APPLICATIONS CHARACTERISTICS SOLDER-CUP TERMINATION STANDARD and HIGH DENSITY 12.55±0.38 (.494±0.015) B±0.13 (.005) C±0.13 (.005) D±0.13 (.005) E±0.05 (.002) POSITION #1 10° X 7.9±0.13 (.311±0.005) 8.38±0.13 (.33±0.005) 2.84 (.112) A±0.38 (.015) SOCKET 12.5 (.492) 5.9 (.232) 11 (.433) 12.3 (.484) PLUG F±0.13 (.005) 11.2 (.441) 6.1 (.240) 3 (.118) Ø3.05 (.120 dia) 10.72 (.422) DIMENSIONS mm (inch) C D E Nb OF CONTACTS A B 9 30.84 (1.21) 24.99 (.98) 16.92 (.67) 16.24 (.64) 15 39.24 (1.54) 33.32 (1.31) 24.7 (.972) 25 53.04 (2.09) 47.04 (1.85) 37 69.32 (2.73) 50 67 (2.64) F X 11.09 (.44) 19.28 (.76) 2.74 24.56 (.97) 19.39 (.76) 27.51 (1.08) 2.74 38.96 (1.53) 38.38 (1.51) 33.24 (1.31) 41.30 (1.63) 2.77 63.50 (2.50) 55.42 (2.18) 54.76 (2.16) 49.86 (1.96) 57.71 (2.27) 2.77 61.11 (2.41) 52.86 (2.08) 52.34 (2.06) 44.32 (1.75) 55.3 (2.18) 2.77 2.84 (.112) D±0.13 (.005) E±0.13 (.005) POSITION #1 10° 3 (.118) Ø3.05 (.120 dia) SOCKET F±0.38 (.015) 12.5 (.492) 11.2 (.441) 6.1 (.240) PLUG X 15.37±0.38 (.605±0.015) C±0.13 (.005) 10.9±0.13 (.429±0.005) B±0.13 (.005) 2.84 11.2±0.13 (.441±0.005) A±0.38 (.015) 5.9 (.232) 11 (.433) 12.3 (.484) OVERALL DIMENSIONS Standard Density 13.56 (.534) POSITION #1 OVERALL DIMENSIONS 12.55±0.38 (.494±0.015) 1.98 (.078) B±0.13 (.005) C±0.13 (.005) D±0.13 (.005) Ø3.05 (.120) 10° E±0.13 (.005) 10.72 (.422) DIMENSIONS mm (inch) B C D A 15 30.84 (1.21) 24.99 (.98) 16.92 (.67) 16.24 (.64) 19.28 (.76) 26 39.24 (1.54) 33.32 (1.31) 24.7 (.972) 24.56 (.97) 27.51 (1.08) 44 53.04 (2.09) 47.04 (1.85) 38.96 (1.53) 38.38 (1.51) 41.30 (1.63) 62 69.32 (2.73) 63.50 (2.50) 55.42 (2.18) 54.76 (2.16) 57.71 (2.27) 78 67 (2.64) 61.11 (2.41) 52.86 (2.08) 52.34 (2.06) 55.3 (2.18) 45.79±0.13 (1.803±0.005) POSITION #1 Ø3.05 (.120) 10° E±0.38 (.015) 78 CONTACTS 3 (.118) 5 (.197) SOCKET 12.2 (.48) PLUG 11.2 (.441) 2.41 (.95) 6.1 (.240) 12 (.472) 11 (.433) 5.9 (.232) SD / E5 B±0.13 (.005) C±0.13 (.005) D±0.13 (.005) E 15.37±0.38 (.605±0.015) A±0.38 (.015) 10.9±0.13 (.429±0.005) Nb OF CONTACTS 2.08 (.082)x3=6.24 (.246) 11.2±0.13 (.441±0.005) 3 (.118) 5 (.197) SOCKET 12.2 (.48) PLUG 11.2 (.441) 6.1 (.240) 2.29±0.05 (.09±0.002) 11 (.433) 5.9 (.232) 12 (.472) 7.9±0.13 (.311±0.005) A±0.38 (.015) 1.98 8.38±0.13 (.33±0.005) High Density 33.56 (.534) M3 or #4-40 screwlock M3 or #4-40 5.8 (.228) 6.0 (.236) Threaded Rear Insert H/G How to order L ... ... ... ... ... ... ... C309 RoHS Compliant gold flash 0.4µm (15µ") 77: tinned shell for receptable 717: tinned shell + dimples for plug 177: tinned shell for receptable 777: tinned shell + dimples for plug SD : standard density HD : high density shell size: E, A, B, C, D plating option: valid only for 0.76µm (30µ") part numbers to be written as follow: or 77...................C309 717.................C309 front mounting type: no digit = standard rivet 3.05mm VF = front screwlock 4-40 VFM = front screwlock M3 contact type: P = pin S = socket configuration: SD : 9,15,25,37,50 HD : 15,26,44,62,78 rear mounting type: H = rear insert 4-40 G = rear insert M3 For special request, please consult factory Do not hesitate to contact us for further information Amphenol IT & Communication Products Block A3/A4, The 4th Industrial District of Industrial Headquarters, Dong Keng Road Gong Ming Town, Shen Zhen China Fax:+86(0)755 2754 9955 Technical Support Tel:+86(0)755 2717 7945 Info-dsub@amphenol.com.cn http://www.dsubconnector.com The information given in this document are as a guideline only. We reserve the right to modify our products in any way we deem necessary. Any duplication is prohibited, unless approved in writing. Front Female Screwlock VF / VFM E5/F NOTES Panel mounting option
