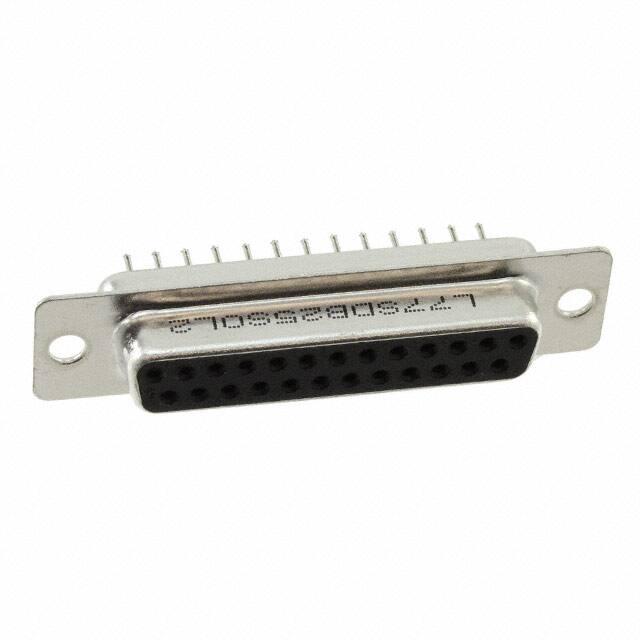

L77SDB25SOL2

SD D'Sub connectors - Stamped and Formed Contacts • Connectors according to: MIL C24308 - NFC 93425-HE5 Materials and Platings Shells Insulator Pin contacts Socket contact Rear insert Boardlock Screwlock Steel, tin over nickel plating Glass-filled thermoplastic, UL 94V- 0 Brass, selected gold in mating area; 2.54µm (100 µ") min.tin on termination area over 1.27µm (50µ") min.nickel Phosphor bronze, selected gold in mating area;2.54µ(100µ") min.tin on termination area over 1.27µm (50µ") min.nickel Brass, 2.54µm (100µ") min.nickel plated Brass, 2.54µm (100µ") min.nickel plated Brass, 2.54µm (100µ") min.nickel plated (removable) DESCRIPTION Specifications Electrical Data Current rating Voltage rating Withstanding voltage Insulation resistance Contact resistance The Amphenol "SD" series features precision formed contacts, and insulator with closed entry contacts cavities. This series gives you Amphenol's high standards of quality and reliability to meet all of your commercial requirements. Economical straight PCB mount connectors Standard Density:5A High Density:3A 250V AC/ rms 50Hz 1000V AC/rms 50Hz for one minute 1000MΩ at 500V DC 20mΩ max Climatic Data Mechanical Data Single contact insertion force Single contact withdrawal force 0.54kg (1.19lb) max SD : 0.06kg (0.13lb) min HD : 0.02kg (0.044lb) min Mating and unmating force Unit: kg ( lb) No. of Cts SD HD 9 15 25 37 50 15 26 44 62 78 SD Mate (max) Unmate (min) 3.05 (6.74) 5.09 (11.24) 8.44 (18.66) 12.51 (27.65) 14.65 (32.38) Standard plating thickness 0.36 (0.79) 0.46 (1.01) 0.81 (1.8) 1.1 (2.47) 1.6 (3.56) HD Mate (max) Unmate (min) 3.81 (8.42) 5.95 (13.16) 9.26 (20.46) 13.48 (29.78) 15.82 (34.96) • gold flash • 0.381µm (15µ") gold • 0.76 µm (30µ") gold 0.52 (1.14) 1.05 (2.32) 1.37 (3.02) 1.76 (3.88) 2.02 (4.46) • Industrial • Telecom • Any industry standard I / O connections SD / E6 Operating temperature -55°C to +125°C Salt spray 24 hours APPLICATIONS CHARACTERISTICS STRAIGHT PCB TERMINATION STANDARD and HIGH DENSITY 2.84 (.078) 8.38±0.13 (.33±0.005) A±0.38 (.015) B±0.13 (.005) C±0.13 (.005) D±0.13 (.005) E±0.05 (.002) POSITION #1 12.55±0.38 (.494±0.015) 7.9±0.13 (.311±0.005) 4.4 (.173) 0.4 (.016) 10° ø 0.62 (.024) X 5.9 (.232) DETAIL A PLUG J* SOCKET 6.1 (.240) F±0.13 (.005) 10.72 (.422) A * see chart "panel mounting option" DIMENSIONS mm (inch) C D E Nb OF CONTACTS A B 9 30.84 (1.21) 24.99 (.98) 16.92 (.67) 16.24 (.64) 15 39.24 (1.54) 33.32 (1.31) 24.7 (.972) 25 53.04 (2.09) 47.04 (1.85) 37 69.32 (2.73) 50 67 (2.64) F X 11.09 (.44) 19.28 (.76) 2.74 24.56 (.97) 19.39 (.76) 27.51 (1.08) 2.74 38.96 (1.53) 38.38 (1.51) 33.24 (1.31) 41.30 (1.63) 2.77 63.50 (2.50) 55.42 (2.18) 54.76 (2.16) 49.86 (1.96) 57.71 (2.27) 2.77 61.11 (2.41) 52.86 (2.08) 52.34 (2.06) 44.32 (1.75) 55.3 (2.18) 2.77 2.84 (.112) D±0.13 (.005) E±0.13 (.005) POSITION #1 10° X SOCKET 4.4 (.173) 5.9 (.232) PLUG 15.37±0.38 (.605±0.015) C±0.13 (.005) 10.9±0.13 (.429±0.005) B±0.13 (.005) 2.84 11.2±0.13 (.441±0.005) A±0.38 (.015) J OVERALL DIMENSIONS Standard Density 6.1 (.240) F±0.38 (.015) 50 CONTACTS 13.56 (.534) 10° OVERALL DIMENSIONS POSITION #1 6.1 (.240) 2.29±0.05 (.09±0.002) PLUG SOCKET 4.2 (.165) 1.98 (.078) C±0.13 (.005) D±0.13 (.005) 12.55±0.38 (.494±0.015) B±0.13 (.005) J* 5.9 (.232) 7.9±0.13 (.311±0.005) A±0.38 (.015) 1.98 8.38±0.13 (.33±0.005) High Density E±0.13 (.005) * see chart "panel mounting option" 10.72 (.422) DIMENSIONS mm (inch) B C D Nb OF CONTACTS A 15 30.84 (1.21) 24.99 (.98) 16.92 (.67) 16.24 (.64) 19.28 (.76) 26 39.24 (1.54) 33.32 (1.31) 24.7 (.972) 24.56 (.97) 27.51 (1.08) 44 53.04 (2.09) 47.04 (1.85) 38.96 (1.53) 38.38 (1.51) 41.30 (1.63) 62 69.32 (2.73) 63.50 (2.50) 55.42 (2.18) 54.76 (2.16) 57.71 (2.27) 78 67 (2.64) 61.11 (2.41) 52.86 (2.08) 52.34 (2.06) 55.3 (2.18) E C±0.13 (.005) D±0.13 (.005) POSITION #1 SD / E6 45.79±0.13 (1.803±.005) 10° 2.41 (.095) PLUG SOCKET 4.2 (.165) 6.1 (.240) J 5.9 (.232) 15.37±0.38 (.605±0.015) 2.08 (.082)x3=6.24 (.246) 11.2±0.13 (.441±0.005) B±0.13 (.005) 10.9±0.13 (.429±0.005) A±0.38 (.015) E±0.38 (.015) 13.56 (.534) 78 CONTACTS M3 or # 4-40 screwlock H = # 4-40 G = M3 M3 or # 4-40 H = # 4-40 G = M3 J 5.8 (.228) Ｘ Ｘ Ｙ Ｙ 5.9 (.232) Front Female Screwlock Threaded Rear Insert X Y J RM5 Standoff Boardlock RM5 RM8 RM5G RM8G 6.0(.236) 4.2(.165) 6.2(.244) 12.7(.500) 3.2(.126) 10.1(.397) 4.8 (.189) RM8 Standoff Boardlock How to order ... ... ... ... ... ... OL2 ... C309 RoHS Compliant gold flash 0.4µm (15µ") 77: tinned shell for receptable 717: tinned shell + dimples for plug 177: tinned shell for receptable 777: tinned shell + dimples for plug SD : standard density HD : high density shell size: E, A, B, C, D mounting type: H = rear insert 4-40 G = rear insert M3 H,G must also be used to specify the threading of RM5 or RM8 grounding tabs. plating option: valid only for 0.76µm (30µ") part numbers to be written as follow: or 77...................C309 717.................C309 grounding tabs: no digit = standard rivet 3.05mm RM5 = retention clip RM8 = retention clip + front screwlock Termination Straight for PCB contact type: P = pin S = socket configuration: SD : 9,15,25,37,50 HD : 15,26,44,62,78 For special request, please consult factory Do not hesitate to contact us for further information Amphenol IT & Communication Products Block A3/A4, The 4th Industrial District of Industrial Headquarters, Dong Keng Road Gong Ming Town, Shen Zhen China Fax:+86(0)755 2754 9955 Technical Support Tel:+86(0)755 2717 7945 Info-dsub@amphenol.com.cn http://www.dsubconnector.com The information given in this document are as a guideline only. We reserve the right to modify our products in any way we deem necessary. Any duplication is prohibited, unless approved in writing. L E6/F HOW TO ORDER Panel mounting option
