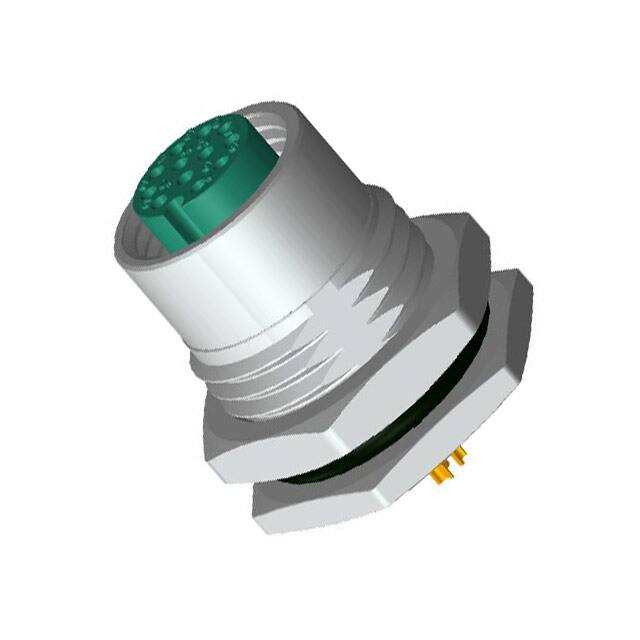

M12A-12PFFS-SF8001

1 2 3 13.6 +0.1 0 13.6 REV. B +0.1 0 B QC 7 8 SIGN 2015/07/17 Yulong_wang Change to Share Drawing. 2016/08/06 Yulong_wang Add 6Pin A DESCRIPTION & IP69K. 20.0 B 2.0 QC 18.0 (Hex.) QC 45.0 $ Recommended Panel Cut-Out Recommended Panel Cut-Out 20.6 (Ref.) E 6 DATE 16.1 15.4 #0.1 C 5 ECN NO. LEN1570203~210 LE31570188~191 LEN1680907~918 M 12A - XX P F F S - S F 8 XXX 12A:A-Code D Liquid Glue 8:IP68/69K(防水等級68/69K) C Shield C F:Front Fasten(前鎖式/Enclosure Rear Mount) 3 2 Panel O-Ring Connector 5 Housing O-Ring PG9 or M16*1.5 QC 4 6 Screw Nut S:Screw(螺紋式) P:Panel(板端) S:Solder Type(焊接式) F:Female Connector(母座) C M12A-03PFFS-SF8XXX M12A-04PFFS-SF8XXX M12A-05PFFS-SF8XXX M12A-06PFFS-SF8XXX M12A-08PFFS-SF8XXX M12A-10PFFS-SF8XXX M12A-12PFFS-SF8XXX Item No. T A L W F:Female Pin(母Pin) 2.5 2.5 2.5 2.5 2.5 4.5 2.5 4.5 2.5 A B Pin伸出長度 Note: * Important Dimension. QC C * Waterproof Rate:IP68, IP69K. * Housing:Nylon+GF, Black. * Female Pin:Copper Alloy, Gold Plated. * Shield:Zinc Alloy, Nickel Plated. * Screw Nut:Zinc Alloy, Nickel Plated. * Panel O-Ring:Viton, Black. * Housing O-Ring:Viton, Green. * Rated Voltage: 3 & 4Pin 250V dc. or ac. 5Pin 60V dc. or ac. 6~12Pin 30V dc. or ac. * Rated Current: 3~5Pin 4A 6~8Pin 2A 10~12Pin 1.5A * Operating Temperature: -40~105 $ C * For Panel Thickness Max 4.5mm. * Recommended Nut Torque:4-6 Kgf.cm. CONFIDENTIAL 2016-08-06 R&D DEPT. C B 3P 4P 5P C 6P 8P 10P 12P Pin Assignment Front View TITLE UNIT:mm TOLERANCE .X # 0.25 .XX # 0.1 .XXX # 0.05 ANGLES # 1 1 SCALE REV. $ 2 Amphenol LTW M12 A-Code Female Conn. Solder Front Type 3:2 C SIZE SHEET A4 WC-REV. A.5 1 OF 1 Yulong_wang DWG NO M12A-XXPFFS-SF8XXX CUSTOMER Jinhai 5 6 Jerry 7 2016-08-06 DATE APPROVED BY ALTW 4 2016-08-06 DATE CHECKED BY QC :Inspection item 3 DATE DRAWN BY ITEM NO 2016-08-06 8 FMW10702-01-02A1 Amphenol LTW. A 1 PROPERTY OF Amphenol LTW. DISCLOSURE TO THIRD PARTY HAS TO BE AUTHORIZED BY 03:3Pin 04:4Pin 05:5Pin 06:6Pin 08:8Pin 10:10Pin 12:12Pin 001:PG9 002:M16*1.5 THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. IT IS CONFIDENTIAL AND A (M16*1.5) (PG9) F 4
