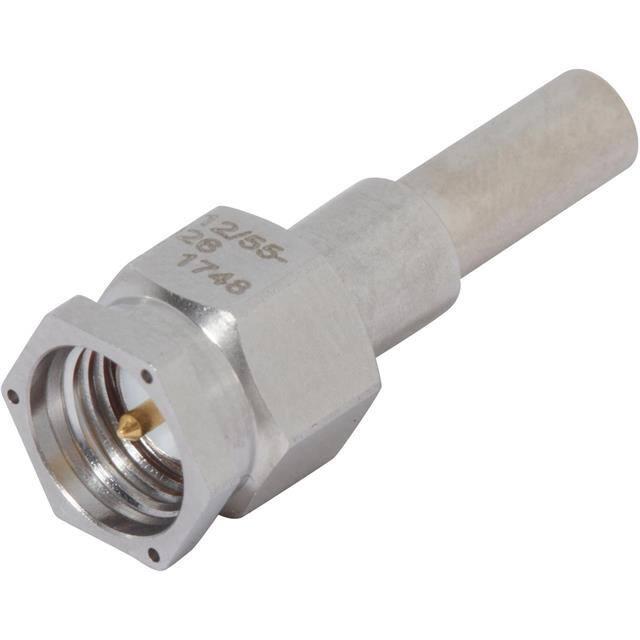

M39012/55-3026

ROHS COMPLIANT PRODUCT DATA DRAWING 2X .312 7.92 HEX REVISION HISTORY DESCRIPTION REV A DCN 41763 DATE APPROVED 10/15 MAL .940 23.88 MATERIAL: BODY & COUPLING NUT: STAINLESS STEEL PER AMS-5640, ALLOY UNS S30300, TYPE 1 LOCK RING: BERYLLIUM COPPER PER ASTM B196, ALLOY No. UNS C17300, TD04 CONTACT & CRIMP RING: BRASS PER ASTM B16, ALLOY UNS No. C36000 INSULATOR: PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B GASKET: SILICONE RUBBER PER A-A-59588, CLASS 2B, GRADE 50/60 TUBING: M23053/4 FINISH: BODY & COUPLING NUT: PASSIVATED PER AMS-2700 CONTACT: GOLD PER ASTM B488, TYPE II, CODE C, CLASS 1.27, OVER NICKEL PER AMS-QQ-N-290, CLASS 1 CRIMP RING: NICKEL PER AMS-QQ-N-290, CLASS 2 PERFORMANCE: IMPEDANCE: FREQ. RANGE: VSWR: INSERTION LOSS: MATERIAL: 50 OHMS DC TO 12.4 GHz 1.15 + .02(F):1 DC TO 12.4 GHz .06 X SQRT(F(F IN GHz)) FINISH: SEE NOTES SEE NOTES SURFACE AREA: N/A PROPRIETARY THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SV MICROWAVE, INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF SV MICROWAVE, INC IS PROHIBITED. DIMENSIONS ARE IN INCHES TOLERANCES: FRACTIONAL: DECIMAL: .X .XX .XXX 1/64 ANGULAR: X X X' 1 0' 15' .030 .010 .005 INTERPRET DIMENSIONS AND TOLERANCES PER ASME Y14.5M - 1994 THIRD ANGLE PROJECTION UNLESS OTHERWISE SPECIFIED 1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS] 2) ALL DIMENSIONS ARE AFTER PLATING. 3) BREAK CORNERS & EDGES .005 R. MAX. 4) CHAM. 1ST & LAST THREADS. 5) SURFACE ROUGHNESS 63 e MIL-STD-10. 6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC WITHIN .005 T.I.R. 7) REMOVE ALL BURRS DRAWN: DAL 10/12/15 CHECKED: APPROVED: MAL 10/12/15 DGG 02/26/86 2400 Centrepark West Drive, Suite 100 West Palm Beach, FL 33409 TITLE: SMA STRAIGHT CRIMP PLUG FOR RG-316 CABLE SIZE CAGE CODE DWG. NO. B 95077 SCALE: 5:1 M39012/55-3026 SHEET 1 OF 1
