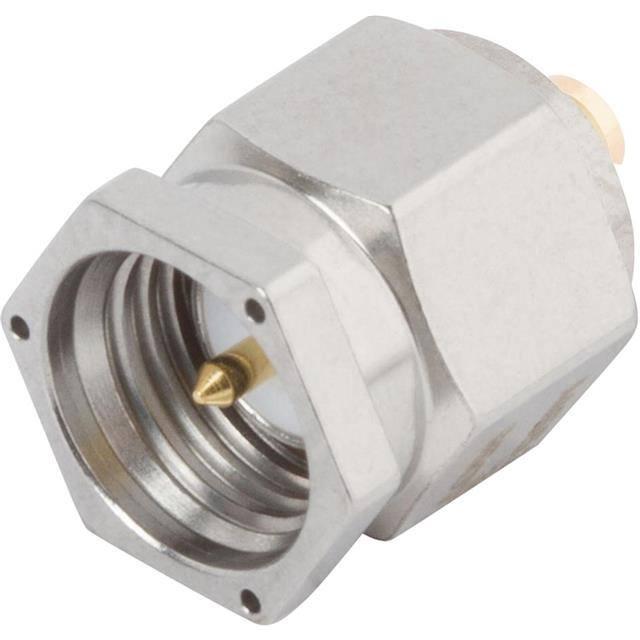

M39012/79B3001

ROHS COMPLIANT PRODUCT DATA DRAWING A DCN 41742 DATE APPROVED 10/15 DAL .449 11.40 .312 7.92 HEX. 3X .020 0.51 EQ. SPACED LOCKWIRE HOLES MATERIAL: BODY & COUPLING NUT: REVISION HISTORY DESCRIPTION REV STAINLESS STEEL PER AMS-5640, ALLOY UNS S30300, TYPE 1 CONTACT: BRASS PER ASTM B16, ALLOY UNS No. C36000 LOCK RING: BERYLLIUM COPPER PER ASTM B196, ALLOY No. UNS C17300, TD04 INSULATOR: PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B GASKET: SILICONE RUBBER PER A-A-59588, CLASS 2B, GRADE 60/70 FINISH: COUPLING NUT: PASSIVATED PER AMS-2700 BODY & CONTACT: GOLD PER ASTM B488, TYPE II, CODE C, CLASS 1.27, OVER NICKEL PER AMS-QQ-N-290, CLASS 1, .00005" MIN. MATERIAL: PERFORMANCE: IMPEDANCE: FREQ. RANGE: FINISH: 50 OHMS DC TO 18.0 GHz. SEE NOTES SEE NOTES SURFACE AREA: N/A PROPRIETARY THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF SV MICROWAVE, INC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF SV MICROWAVE, INC IS PROHIBITED. DIMENSIONS ARE IN INCHES TOLERANCES: FRACTIONAL: DECIMAL: .X .XX .XXX 1/64 ANGULAR: X X X' 1 0' 15' .030 .010 .005 INTERPRET DIMENSIONS AND TOLERANCES PER ASME Y14.5M - 1994 THIRD ANGLE PROJECTION UNLESS OTHERWISE SPECIFIED 1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS] 2) ALL DIMENSIONS ARE AFTER PLATING. 3) BREAK CORNERS & EDGES .005 R. MAX. 4) CHAM. 1ST & LAST THREADS. 5) SURFACE ROUGHNESS 63 e MIL-STD-10. 6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC WITHIN .005 T.I.R. 7) REMOVE ALL BURRS DRAWN: BRT 04/24/04 CHECKED: APPROVED: VMJ 04/26/04 BRT 04/26/04 2400 Centrepark West Drive, Suite 100 West Palm Beach, FL 33409 TITLE: SMA PLUG SOLDER-ON FOR Ø.085 S.R. CABLE SIZE CAGE CODE DWG. NO. B 95077 SCALE: 8:1 M39012/79B3001 SHEET 1 OF 1
