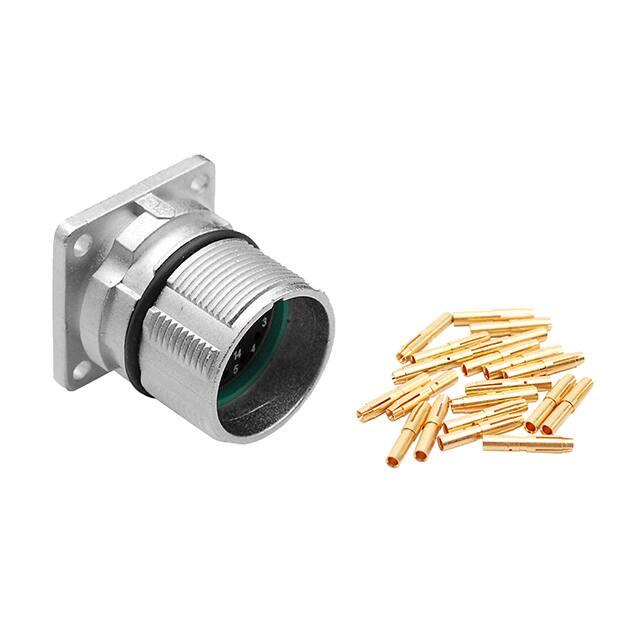

MA1LAE1700S-KIT

REVISIONS REV DESCRIPTION DATE BY APPR A1 - FIRST RELEASE APR.13,2016 Drack Tommy A2 - UPDATE DRAWING Mar.22,2017 Regan Tommy E type, Normal Key NOTES: UNLESS OTHERWISE SPECIFIED 1. MATERIAL: INSULATION INSERT: PA66,UL94 V0 SEAL: VITON HOUSING BODY: ZINC DIE CAST, NICKEL PLATED CONTACT: COPPER ALLOY, GOLD PLATED 27.5 ASSEMBLED VIEW .0 Ø 20 DWG NO: 2. SPECIFICATIONS: 2.1 CURRENT RATING: 9 AMPS 2.2 VOLTAGE RATING: 125 V AC/DC 2.3 CONTACT RESISTANCE: 500 CYCLES 2.10 RoHS COMPLIANT 25.7 19.8 KIT,M23A,RECEPTACLE,17POS,E TYPE,FLANGE MOUNT,SOCKET CONTACT 25.7 TITLE: AMPHENOL MA1LAE1700 XXXX 19.8 Ø19.8 2.5 M23*1.0 19.8 Ø2 .7(4 x) ECO MA1LAE1700S-KIT M2.5*0.45(4x) 3. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY. 19.8 REV: A2 Mounting Holes SH: 3) Note reference = X SIGNATURES DRAWN: Regan Amphenol DATE Mar.22,2017 CHECKED: Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: APPROVAL: MATERIAL SPECIFICATIONS: CUSTOMER: PROCESS SPECIFICATIONS: THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. KIT,M23A,RECEPTACLE,17POS,E TYPE FLANGE MOUNT,SOCKET CONTACT TYPE B C- NEXT ASS'Y: NONE DWG NO: REVISION MA1LAE1700S-KIT SHEET 1 A2 OF 1 1 All dimensions are in metric(mm). Tolerances are as follows: PL DEC ±0.30 Fractions ±1/64 PL DEC ±0.15 Angles ±1° PL DEC ±0.08 OF: UNLESS OTHERWISE SPECIFIED 1) 2) 1 2 3 3 2 1 ITEM SC000030 CONTACT, SOCKET, Ø1.0mm,CRIMP 24~28AWG SC000044 CONTACT, SOCKET, Ø1.0mm,CRIMP 18~22AWG MA1LAE1700 CONNECTOR DESCRIPTION PART NUMBER MATERIALS LIST 1 AMPHENOL MA1LAE1700 XXXX 17 17 1 QUANTITY
