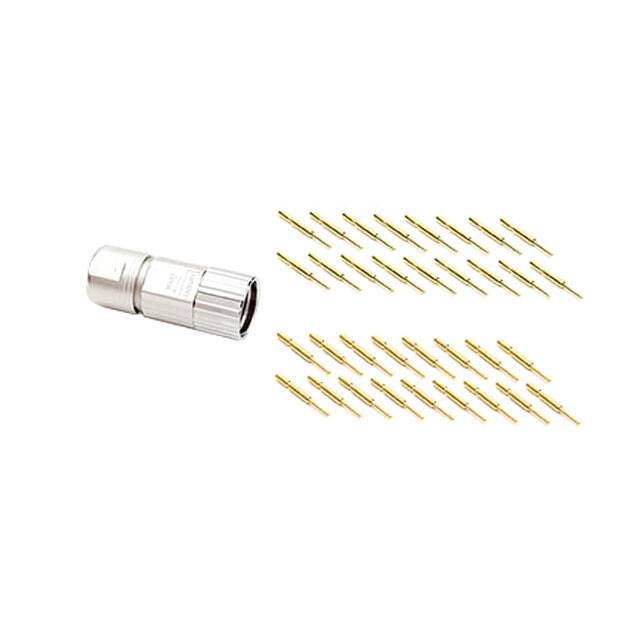

MA7CAE1700S-S3-KIT

REVISIONS REV ECO DESCRIPTION DATE BY APPR A1 - FIRST RELEASE Oct.30,2017 White Tommy NOTES: UNLESS OTHERWISE SPECIFIED Ø25.8 24.9 MA7CAE1700-Sx XXXX 7 2 17 13 3 E 14 4 6 5 3. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY. Part number Item Connector P/N MA7CAE1700S-Sx-KIT 8 15 1 12 DWG NO: 11 10 16 KIT;M23A,PLUG,STR,17P,E TYPE 2. SPECIFICATIONS: 2.1 CURRENT RATING: 9 AMPS 2.2 VOLTAGE RATING: 125 V AC/DC 2.3 CONTACT RESISTANCE: 500 CYCLES 2.10 RoHS COMPLIANT E type, Normal Key (E型, 0转位角) 9 TITLE: 1. MATERIAL: INSULATION INSERT: PA66,UL94 V0 SEAL: VITON, EPDM HOUSING BODY: ZINC DIE CAST, NICKEL PLATED COUPLING NUT: COPPER ALLOY, NICKEL PLATED CONTACT: COPPER ALLOY, GOLD PLATED REF 67.0 Cable OD Range MA7CAE1700S-S1-KIT MA7CAE1700-S1 4.5~7.5 mm 2 MA7CAE1700S-S2-KIT MA7CAE1700-S2 7.5~11.0 mm 3 MA7CAE1700S-S3-KIT MA7CAE1700-S3 11.0~15.0 mm REV: 1 A1 SIGNATURES All dimensions are in metric(mm). Tolerances are as follows: PL DEC ±0.30 Fractions ±1/64 PL DEC ±0.15 Angles ±1° PL DEC ±0.08 DATE Amphenol DRAWN: CHECKED: White Tod Oct.30,17 Oct.30,17 Tommy Oct.30,17 Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: 3) Note reference = X APPROVAL: MATERIAL SPECIFICATIONS: CUSTOMER: KIT;M23A,PLUG,STR,17P,E TYPE PROCESS SPECIFICATIONS: THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. TYPE DWG NO: REVISION B C- MA7CAE1700S-Sx-KIT A1 NEXT ASS'Y: NONE SHEET 1 OF 1 1 UNLESS OTHERWISE SPECIFIED 1) 2) 1 2 3 OF: 3 2 1 ITEM SC000030 CONTACT, SOCKET, Ø1.0mm,CRIMP 24~28AWG SC000044 CONTACT, SOCKET, Ø1.0mm,CRIMP 18~22AWG MA7CAE1700-Sx CONNECTOR DESCRIPTION PART NUMBER MATERIALS LIST 1 MA7CAE1700-Sx XXXX SH: 17 17 1 QUANTITY
