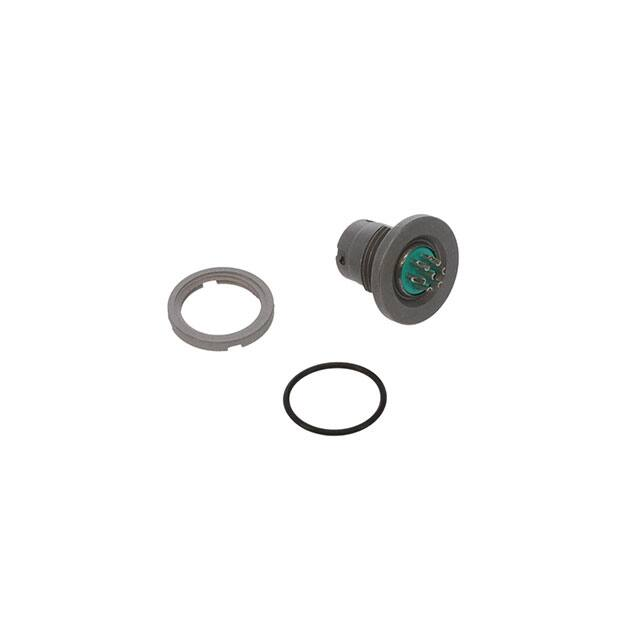

MAJ-17-00

ITEM PART NO. QTY 4 3 DESCRIPTION 1 MAJ-10-32 1 O-RING, PANEL MOUNT 2 MAJ-10-33 1 NUT, PM-MAJ 3 MAJ-17-01 1 7 COND. REC. PM B 2 1 MAJ-17-00 D D .345 .447 3 RECOMMENDED PANEL CUTOUT .40 .16 C .34 Z C .11 +.010 .008 -.002 .11 .034 .005 PIN DIAMETER 1 B 2 60° Z B .15 .57 SECTION Z-Z THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF NEXUS,INCORPORATED AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE OR USED FOR ANY PURPOSE WITHOUT THE WRITTEN CONSENT OF NEXUS. A H ADD PIN HOLE LOCATIONS 6/5 2019 BAM G ADD:.008+.010/-.002 9/26 2017 HR F CHG BOM 9/6 2011 HR E ADD BALLOONS 1/31 2011 HR D ASSIGN LETTERS TO CONTACTS C ADD MAT'L LET. REVISION 096 09/10 2010 06/04 2010 CN # DATE CHK. DWN.BY LDE DATE 5/10/10 CHECKED BY DATE APPR.BY DATE UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN INCHES &/OR [mm] TOLERANCES: DECIMAL: .XX[X.X] .XXX[X.XX] .01[0.3] .003[0.08] FRACTION: X/X 1/64 ANGLES: .X .5 MATERIAL FINISH WEIGHT TITLE 7 COND. REC. PANEL MOUNT DO NOT SCALE DWG. NEXUS SCALE = 4.00 :1 SHEET 1 OF 1 STAMFORD,CONN SIZE B DWG. NO. MAJ-17-00 A
