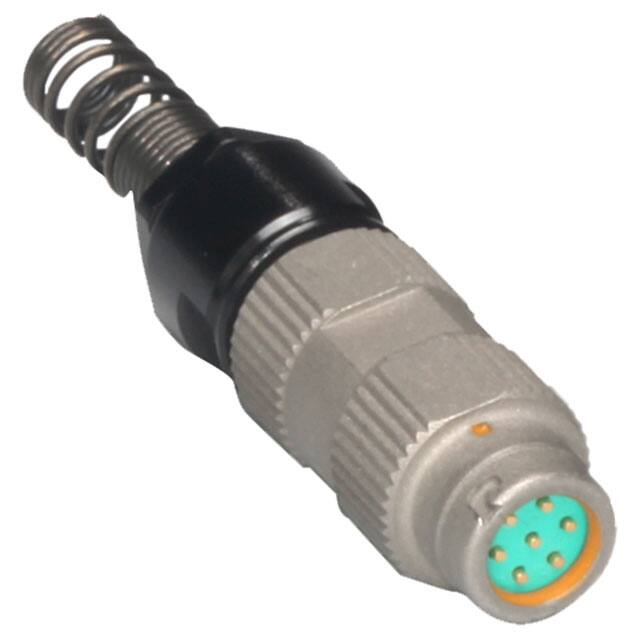

MAJ-57-30

4 D 3 ITEM # PART # QTY 1 MAJ-10-25 1 INSERT, RECEPTACLE, 6-COND 2 MAJ-10-67 1 HOUSING JACK 3 MAP-57-01 1 STRAIN RELIEF 4 MAP-50-03 1 WASHER, RUBBER 5 MAP-50-24 1 NUT ADAPTER, 6 AJ-117BR-9 1 BUSHING, 7 AJ-117BR-10 1 WASHER, .250 8 AJ-117BR-15 1 SPRING, .250 9 AJ-117BR-11 1 STUD, SHELL B DESCRIPTION 2 1 MAJ-57-30 8 6 D .250 9 .250 3 1 .250 7 2 5 C C 4 2.11 .55 Z B Z 1.60 REF .008 B .44 SECTION Z-Z THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF NEXUS,INCORPORATED AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE OR USED FOR ANY PURPOSE WITHOUT THE WRITTEN CONSENT OF NEXUS. DWN.BY A C CHG: ,AP-60-06 TO MAP-57-01 152 1/24 2013 HR B CHG MAP-50-05 TO MAP-60-06 146 11/8 2012 HR 9/28 2011 HR A LET. NEW RELEASE REVISION CN # DATE CHK. HR DATE 9/28/11 CHECKED BY DATE APPR.BY DATE UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN INCHES &/OR [mm] TOLERANCES: DECIMAL: .XX[X.X] .XXX[X.XX] ± .01[0.3] ± .003[0.08] FRACTION: X/X ± 1/64 ANGLES: .X ± .5 ° MATERIAL FINISH WEIGHT TITLE NEXUS SCALE = 1.00 :1 7- COND JACK .250 CABLE DO NOT SCALE DWG. SHEET 1 OF 1 STAMFORD,CONN SIZE B DWG. NO. MAJ-57-30 A
