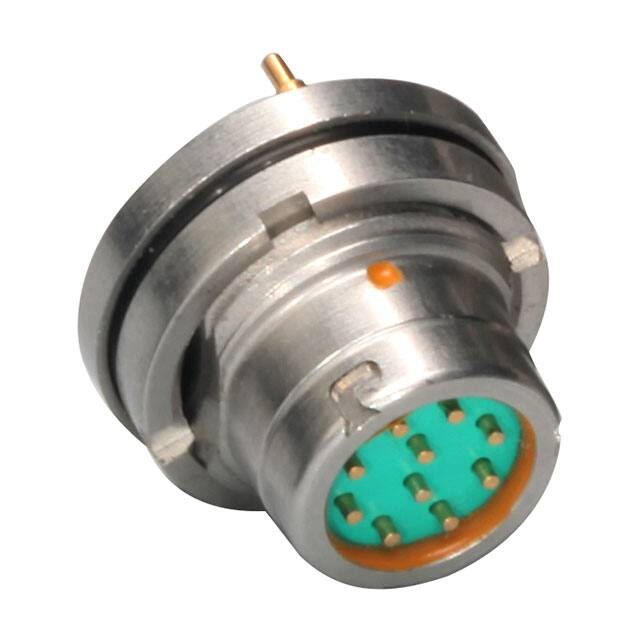

MAJ-60-00B

4 D 3 ITEM # PART # QTY 1 MAJ-60-07B 1 INSERT ASSY, RECEPTACLE 2 MAJ-60-05 1 NUT, (PM-MA) 3 MAJ-60-16 1 O-RING, PANEL MOUNT B DESCRIPTION 2 1 MAJ-60-00B-CP .428 D .508 .49 RECOMMENDED PANEL CUTOUT .09 C .031 22.5° .010 .41 A B -B- .10 .275 45° C ORANGE ALIGNMENT DIMPLE 2 1 B .075 .217 (10X) .63 -A- .038 B .034 .010 .07 3 A B THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF NEXUS,INCORPORATED AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE OR USED FOR ANY PURPOSE WITHOUT THE WRITTEN CONSENT OF NEXUS. DWN.BY A A NEW RELEASE 185 10/14 2013 HR LET. REVISION CN # DATE CHK. HR DATE 10/14/13 CHECKED BY DATE APPR.BY DATE UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN INCHES &/OR [mm] TOLERANCES: DECIMAL: .XX[X.X] .XXX[X.XX] ± .0X[0.X] ± .00X[0.0X] FRACTION: X/X ± X/XX ANGLES: .X ± .X ° MATERIAL FINISH WEIGHT TITLE 10 COND RECEPTACLE PM W/GROUND PIN DO NOT SCALE DWG. NEXUS SCALE = 2.00 :1 SHEET 1 OF 1 STAMFORD,CONN SIZE B DWG. NO. MAJ-60-00B-CP A
