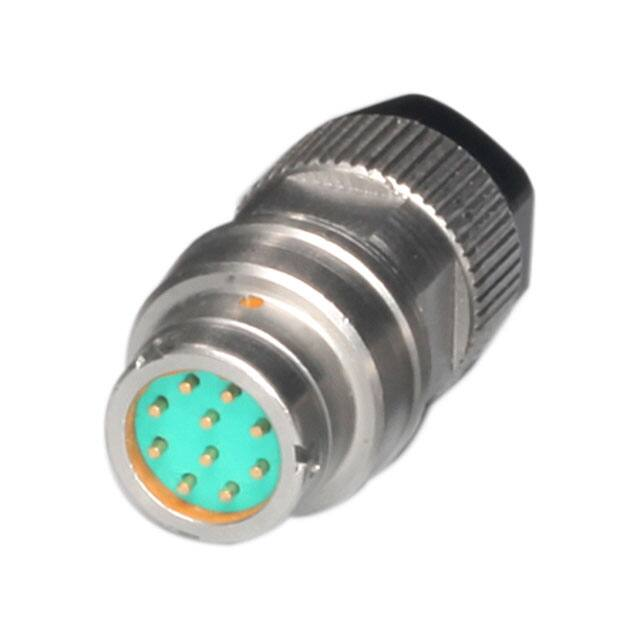

MAJ-60-50

ITEM # D PART # 4 QTY 3 DESCRIPTION 1 MAJ-60-12 1 OM PLUG HOUSING 2 MAJ-60-08P 1 JACK INSERT, 10 COND 3 MAP-60-06 1 STRAIN RELIEF 4 MAP-60-07 1 WASHER, RUBBER 5 MAP-60-10 1 NUT, OM ADAPTER B 2 MAJ-60-50 1 .160 .040 D 45 $ .225 .512 5 .407 4 C SEE NOTE #2 C SEE NOTE #1 3 1.072 .930 B B 2 1 SECTION Z-Z THIS DOCUMENT CONTAINS PROPRIETARY I NFOR- MATION OF NEXUS,INCORPORATED AND SUC H INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE OR USED FOR ANY PURP OSE WITHOUT THE WRITTEN CONSENT OF NEXUS . A NOTES: 1) OVERMOLD SHUTOFF SURFACE 2) ORANGE ALIGNMENT DIMPLE B A LET. REPLACE CONTACT INSERT WAS MAJ-60-01 NEW RELEASE REVISION 1259 10/14 2019 8/15 2011 HR CN # DATE CHK. BAM DWN.BY DATE Aug-15-11 MATERIAL CHECKED BY DATE FINISH APPR.BY DATE WEIGHT UNLESS OTHERWISE SPECIFIED: DIMENSIONS ARE IN INCHES &/OR [mm] TOLERANCES: DECIMAL: .XX[X.X] .XXX[X.XX] # .01[0.3] # .003[0.08] FRACTION: X/X # 1/64 ANGLES: .X # .5 $ TITLE 10-COND OM RECEPTACLE n .185 CABLE DO NOT SCALE DWG. NEXUS SCALE = 2.00 :1 SHEET 1 OF 1 STAMFORD,CONN SIZE B DWG. NO. MAJ-60-50 A
