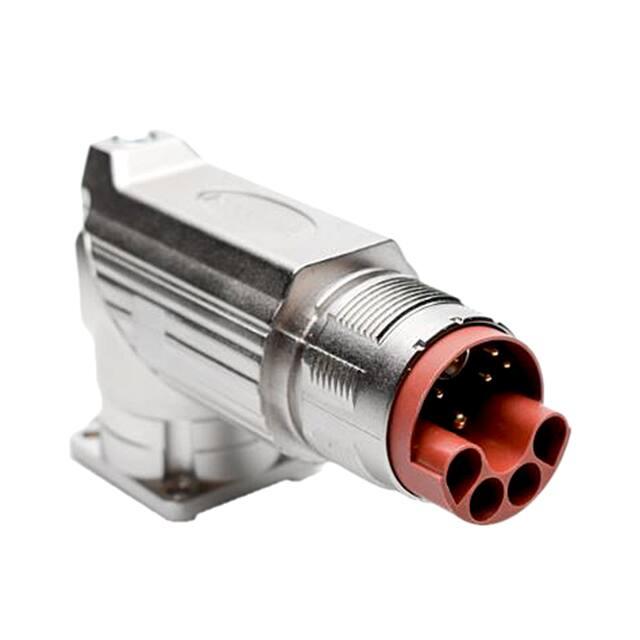

MB5RJN15H01

REVISIONS REV ECO DESCRIPTION DATE BY APPR A1 - FIRST RELEASE Jun.01,2017 Tod Tommy NOTES: UNLESS OTHERWISE SPECIFIED 2.50 1. MATERIAL: INSULATION INSERT:PA66,UL94 V0 SEAL: VITON BODY: ZINC DIE CAST, NICKEL PLATED 25.7 19.80 25.7 19.80 4x) .70 5( M2. Ø2 3. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY. 4x REV: MOUNTING HOLE MB5RJN15H01 19.8 .0 DWG NO: 2. SPECIFICATIONS: 2.1 CURRENT RATING: EARTHNET: 1.2 AMPS SIGNAL: 1.2 AMPS POWER: 30 AMPS 2.2 VOLTAGE RATING: EARTHNET: 30V AC/DC SIGNAL: 30V AC/ 50V DC POWER: 630V AC/ 850V DC 2.3 OPERATING TEMPERATURE: -20°C TO +130°C 2.4 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2 MILLIAMPS CURRENT LEAKAGE @ EARTHNET: 500VOLTS AC. SIGNAL: 1500VOLTS AC. POWER: 6000 VOLTS AC. 2.5 DEGREE OF PROTECTION: IP67 ( MATED CONDITION ) 2.6 DEGREE OF POLLUTION: 3 PER UL840 2.7 OVERVOLTAGE CATEGORY: III PER UL840 2.8 MATING CYCLE DURABILITY: >500 CYCLES 2.9 RoHS COMPLIANT 19.8 Ø20 M23B,REC.,RA,15POS,FLANGE MOUNT,CHECKMATE 40.6 MB5RJN15H01 XXXX TITLE: M23x1.0 72.40 A1 SH: 1 OF: QUANTITY 1 SEE PART NUMBER CHART DESCRIPTION PART NUMBER MATERIALS LIST ITEM UNLESS OTHERWISE SPECIFIED SIGNATURES 1) 2) 1 2 3 All dimensions are in metric(mm). Tolerances are as follows: PL DEC ±0.30 Fractions ±1/64 PL DEC ±0.15 Angles ±1° PL DEC ±0.08 DATE Amphenol DRAWN: Tod Jun.01,2017 CHECKED: Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: 3) Note reference = X APPROVAL: Tommy MATERIAL SPECIFICATIONS: Jun.02,2017 CUSTOMER: M23B,REC.,RA,15POS,FLANGE MOUNT,CHECKMATE PROCESS SPECIFICATIONS: THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. TYPE B C- NEXT ASS'Y: NONE DWG NO: REVISION MB5RJN15H01 SHEET A1 1 OF 1
