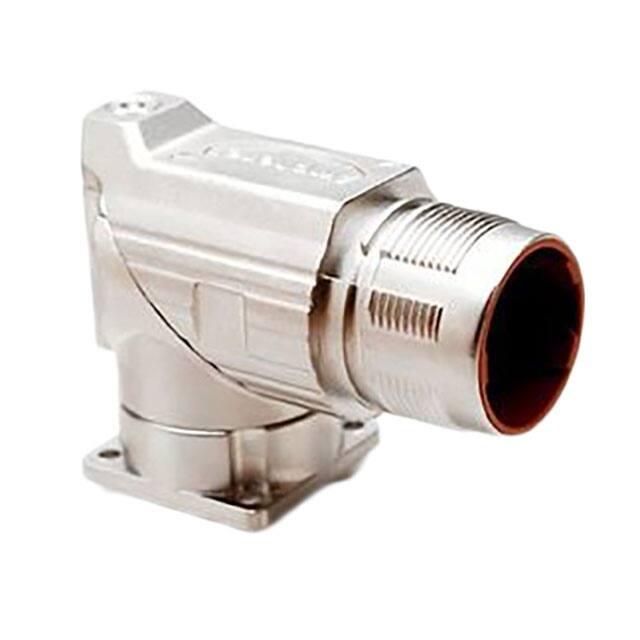

MB7RJN0601

REVISIONS REV ECO DESCRIPTION DATE BY APPR A1 - FIRST RELEASE Nov.20,2015 Drack Tommy 55.1 NOTES: UNLESS OTHERWISE SPECIFIED 40.6 M23x1.0 TITLE: MB7RJN0601 XXXX 18.4 24.6 2.5 M23B,REC.,RA,6POS,FLANGE MOUNT 1. MATERIAL: INSULATION INSERT: PA66,UL94 V0 SEAL: VITON HOUSING BODY: ZINC DIE CAST, NICKEL PLATED Ø19.8 19.8 DWG NO: 2. SPECIFICATIONS: 2.1 CURRENT RATING: 28 AMPS 2.2 VOLTAGE RATING: 630V AC/DC 2.3 OPERATING TEMPERATURE: -20°C TO +130°C 2.4 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2 MILLIAMPS CURRENT LEAKAGE @ 6000 VOLTS AC. 2.5 DEGREE OF PROTECTION: IP67 ( MATED CONDITION ) 2.6 DEGREE OF POLLUTION: 3 PER UL840 2.7 OVERVOLTAGE CATEGORY: III PER UL840 2.8 MATING CYCLE DURABILITY: >500 CYCLES 2.9 RoHS COMPLIANT 19.8 MB7RJN0601 25.7 19.8 3. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY. .0 ø20 REV: 19.8 25.7 .7 ø2 4x ) 5(4x M2. A1 MOUNTING HOLE SH: 1 UNLESS OTHERWISE SPECIFIED 1) 2) 1 2 3 All dimensions are in metric(mm). Tolerances are as follows: PL DEC ±0.30 Fractions ±1/64 PL DEC ±0.15 Angles ±1° PL DEC ±0.08 3) Note reference = X SIGNATURES DRAWN: Drack ITEM Amphenol DATE Nov.20,2015 CHECKED: Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 ENGINEER: APPROVAL: MATERIAL SPECIFICATIONS: CUSTOMER: PROCESS SPECIFICATIONS: M23B,REC.,RA,6POS,FLANGE MOUNT THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. TYPE B C- NEXT ASS'Y: NONE DWG NO: REVISION MB7RJN0601 SHEET A1 1 OF 1 1 QUANTITY OF: SEE PART NUMBER CHART DESCRIPTION PART NUMBER MATERIALS LIST
