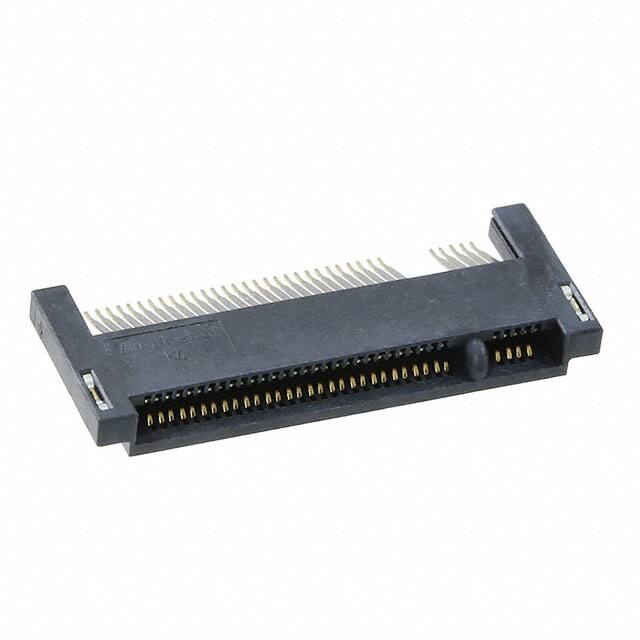

MDT180M01001

M.2 SERIES Features: • Smaller pitch 0.5mm with 67 circuits • Used for both single and double-sided modules • Faster data rate (support PCI Express 3.0, SATA 3.0 and USB 3.0) • Various key options for M.2 module cards • Lower profile and various heights available Overview: The M.2 series contains 67-pin mini card connectors with various keying options. This series saves 50% of overall costs by using gold fingers in place of mating plugs. Furthermore, 20% of space is saved compared to the Mini PCIe card connector. This connector’s wide product offering is made specifically to meet many customer design needs. Applications: Storage • Notebooks, tablets, desktops • Network servers • Hubs, routers, switches • Portable gaming devices • Portable mobile devices • Smart TVs • Devices that require SSDs Wireless • Wi-Fi • WWAN (2G/3G/4G) • Bluetooth • WIGig • GPS • NFC • GNSS To learn more about M.2 connectors: web: amphenolcanada.com email: sales@amphenolcanada.com M.2 SERIES Technical Requirements: Durability Insertion Force Shock Vibration Operating Temperature Environmental Test Methodology Useful Field Life Electrical Environmental EIA-364-9; * Option 1 - 25 cycles * Option 2 - 60 cycles Upon completion of cycles the sample must mete all visual and electrical performance requirements 20 N (2.04 KgF, 1 Newton = 1 Kg* m/s²) max. EIA-364-13, Method A * 250 G (notebook) and 285 G (tablet) * At 2 ms half sine * On all six (6) axis EIA-364-1000 Test group 3, EIA-364-28 EIA-364-23 * 55 mΩ max. (initial) per contact * 20 mΩ max. change allowed EIA-364-21 * >5 x 108 Ω @ 500 V DC EIA-364-20 * >300 V AC (RMS) @ sea level Low Level Contact Resistance Insulation Resistance DWV Current Rating * 0.5 A/Power contact (continuous) * The temperature rise above ambient shall not exceed 300C * The ambient condition is still air at 250C * EIA-364-70 Method 2 Voltage Rating 50 V AC per contact Contact: Receptacle Copper alloy with gold plating sufficient to meet all mechanical and environmental requirements Contact Finish: Receptacle Must be compatible with lead-free soldering process Housing Complies with UL 94 V-0. Must be compatible with lead-free soldering process Materials -400C to 800C EIA-364-1000 Test group 1, 2, 3, 4 Three (3) years Ordering Information: Connector Height 580 - 5.80 mm 420 - 4.20 mm 320 - 3.20 mm 275 - 2.75 mm 245 - 2.45 mm 180 - 1.80 mm MDT - XXX - X - XX - 001 Contact Plating 01 - 0.30 μ” Au 02 - 0.15 μ” Au 0.3 - Gold flash Connector Key ID (Note 1) A - Key A B - Key B E - Key E M - Key M ... Note 1: Connector Key ID is identical with Module Card Key ID Dimensions: All drawings are measured in millimeters (mm). MID LINE CONNECTION: TOP SIDE CONNECTION: TOP VIEW TOP SIDE CONNECTION CONNECTOR HEIGHT TOP VIEW FRONT VIEW FRONT VIEW SIDE VIEW SIDE VIEW * Please visit amphenolcanada.com to find drawings for other products in this series. To learn more about M.2 connectors: web: amphenolcanada.com email: sales@amphenolcanada.com
