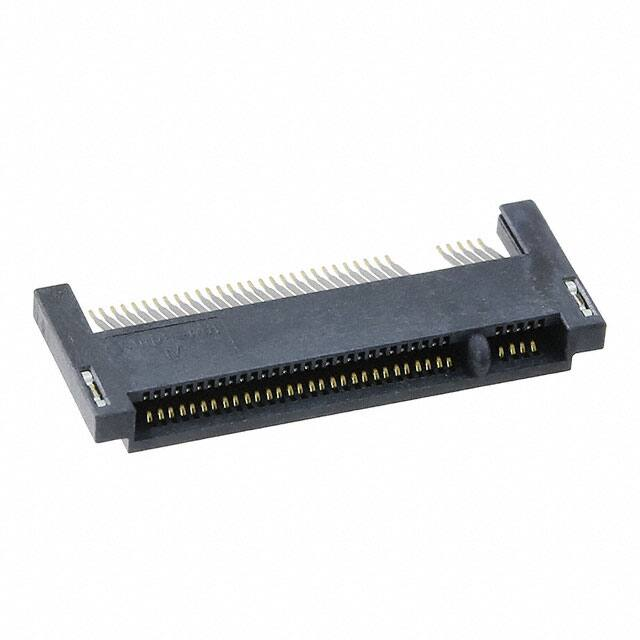

Storage & Server IO PCIe ® M.2 Gen 3 and Gen 4 Card Edge Connectors HIGH DENSITY HIGH PERFORMANCE CONNECTOR Amphenol ICC’s PCIe® M.2 Gen 3 and Gen 4 connectors provide 67 contacts on 0.50mm pitch. It occupies less board space, offers more connector height options and supports higher data rates compared to PCIe® Mini Card connector. It is designed for PCIe® 3.0, USB 3.0 and SATA 3.0 applications, making it suitable for tablets, laptops and low profile storage and server applications. PCIe® M.2 connectors also support higher data rate transmission with both single and double-sided modules. §§Various connector height and keying options §§Accepts angled insertion of add-in module cards §§Some PNs support both angled and straight insertion §§Provide both right angle and vertical orientation M.2 TARGET MARKETS connectors §§Sketching Gen 5 M.2 design which meets 32Gb/s rate FEATURES BENEFITS §§Card edge connector with 67 contacts on a 0.50mm pitch §§Fully compliant with PCI-SIG PCIe® M.2 specification §§Compliant with PCIe® 3.0, USB 3.0 and SATA 3.0 §§Serves multiple high speed peripheral applications §§75 positions with 8 connector key options §§Design flexibility §§Available in various connector height §§Options to reduce overall height §§Supports both single and double-sided modules §§Enables higher data rates §§Upgradable to Gen 4 (16Gb/s) §§Supports higher speeds with backward compatibility to Gen 3 §§Provides both right-angle and vertical orientations §§Allows for application flexibility §§Vertical M.2 supports 5,000 mating cycles §§Higher durability §§Offers dual port M.2 and supports straight insertion with §§Saves mother board space in X axis and Z axis respectively 2.00m height M.2 www.amphenol-icc.com Amphenol Information Communications and Commercial Products PCIe® M.2 Gen 3 and Gen 4 Card Edge Connectors TECHNICAL INFORMATION MATERIAL SPECIFICATIONS §§ Contact: Copper alloy with gold plating sufficient to meet all §§ Amphenol Product Specification: mechanical and environmental requirements §§ GS-12-1142 §§ Contact Finish: Must be compatible with lead-free soldering process §§ GS-12-1195 §§ Housing: Complies with UL 94 V-0. Must be compatible with lead-free §§ GS-12-1248 soldering process PACKAGING ELECTRICAL PERFORMANCE §§ Tape & Reel §§ Low Level Contact Resistance: EIA-364-23, 55mΩ max. (initial) per contact, *20mΩ max. change allowed TOOLING INFORMATION §§ Insulation Resistance: EIA-364-21, *>5 x 108Ω at 500V DC §§ Tooled Up §§ Dielectric Withstanding Voltage: EIA-364-20, *>300V AC (RMS) at TARGET MARKETS/APPLICATIONS sea level §§ Current Rating: *0.5A/Power contact (continuous), * The temperature rise above ambient shall not exceed 30˚C, * The ambient condition is still air at 25˚C, * EIA-364-70 Method 2 §§ Voltage Rating: 50V AC per contact MECHANICAL PERFORMANCE Wireless Laptop Tablet Storage §§ Durability: §§ Normal M.2: 25-60 mating cycles §§ M.2 with 30Au: Can meet 5000 mating cycles §§ MPN: MDT-350-X-XX-001VT ENVIRONMENTAL §§ Durability: EIA-364-9; *Option 1 - 25 Cycles, *Option 2 - 60 Cycles, Upon completion of cycles the sample must meet all visual and electrical performance requirements §§ Insertion Force: 20N (2.04 §§ KgF, 1 Newton = 1 Kg* m/s2) max., EIA-364-13, Method A §§ Shock: * 250 G (notebook) and 285 G (tablet), *at 2 ms half sine, *on all six (6) axis §§ Vibration: EIA-364-1000 Test group 3, EIA-364-28 §§ Operating Temperature: -40°C to +80°C §§ Environmental Test Methodology: EIA-364-1000 Test group 1, 2, 3, 4 §§ Useful Field Life: Three (3) years www.amphenol-icc.com Disclaimer Please note that the above information is subject to change without notice. PCIe M.2 Gen 3 and Gen 4 Card Edge Connectors PART NUMBERS Description Height (mm) Data rate Orientation Part Numbers M.2 Gen 3 1.8 8Gb/s Right Angle MDT180A0X001 M.2 Gen 3 1.8 8Gb/s Right Angle MDT180B0X001 M.2 Gen 3 1.8 8Gb/s Right Angle MDT180E0X001 M.2 Gen 3 1.8 8Gb/s Right Angle MDT180M0X001 M.2 Gen 3 3.2 8Gb/s Right Angle 10128786 & MDT320A0X002 M.2 Gen 3 3.2 8Gb/s Right Angle 10128787 & MDT320B0X002 M.2 Gen 3 3.2 8Gb/s Right Angle 10128788 & MDT320E0X002 M.2 Gen 3 3.2 8Gb/s Right Angle 10130618 & MDT320M0X002 M.2 Gen 3 4.2 8Gb/s Right Angle 10128792 & MDT420A0X002 M.2 Gen 3 4.2 8Gb/s Right Angle 10128793 & MDT420B0X002 M.2 Gen 3 4.2 8Gb/s Right Angle 10128794 & MDT420E0X002 M.2 Gen 3 4.2 8Gb/s Right Angle 10130616 & MDT420M0X002 M.2 Gen 3 5.5 8Gb/s Right Angle 10128798 M.2 Gen 3 8.5 8Gb/s Right Angle 10128796 M.2 Gen 3 8.5 8Gb/s Right Angle 10128797 M.2 Gen 3 8.5 8Gb/s Right Angle 10131758 M.2 Stand off Various - - MDTXXXSTD001 M.2 Screw - - - MDTSCW001 M.2 Gen 3 - 8Gb/s Vertical MDT350M0X001VT M.2 Gen 3 - 8Gb/s Vertical MDT350M0X001VT M.2 Gen 3 2 8Gb/s Right Angle G633B0670X2XEU M.2 Gen 3 4 8Gb/s Right Angle G633B0670X4XEU M.2 Gen 4 2.75 16Gb/s Right Angle MDT275M0X004 M.2 Gen 4 3.2 16Gb/s Right Angle MDT320M0X004 M.2 Gen 4 4.2 16Gb/s Right Angle MDT420M0X003 M.2 Gen 4 5.8 16Gb/s Right Angle MDT580M0X003 M.2 Gen 4 6.7 16Gb/s Right Angle MDT670M0X402 Dual Port M.2 Gen 4 6.7 16Gb/s Right Angle MDT670M0X210 Customized Shield M.2 Gen 4 2 16Gb/s Right Angle MDT670M0XXXX SSIOPCIEM20519EA4 *X denotes various plating options: Au Flash/15u” Au/30u” Au www.amphenol-icc.com Disclaimer Please note that the above information is subject to change without notice.
