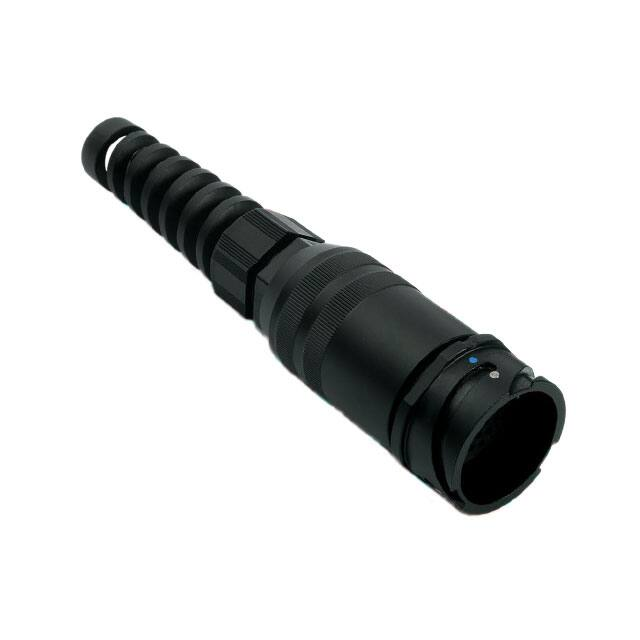

MP-4101-37P-C

6 5 4 3 2 1 Part list, Dimensions in mm (inches) F ITEM PART No 1 2 3 4 5 MP-4101-13P MP-4101-19P MP-4101-25P MP-4101-37P MP-4101-54P No OF CABLE GLAND CONTACTS THREAD SIZE 13 PG11 19 PG13.5 25 PG16 37 PG21 54 PG21 DIAMETER A 37.8 41.1 41.5 50.9 57.1 F LENGTH B 160 171 193 210 210 PG ADAPTOR E nA E CABLE GLAND WITH STRAIN RELIEF IN PG THREAD B REF Amphenol LOGO & PART No ISOMETRIC VIEW 13, 19, 25, 37 AND 54 CONTACT TYPE D Part list, Dimensions in mm (inches) ITEM PART No 6 7 MP-4101-85P MP-4101-150P No. OF CABLE GLAND CONTACTS THREAD SIZE 85 PG29 150 PG36 Amphenol LOGO & PART No DIAMETER LENGTH B A 70.0 137 70.0 145 PG ADAPTOR CABLE GLAND IN PG THREAD C nA C D B REF 85, 150 AND 200 CONTACT TYPE B B ISOMETRIC VIEW NOTES: CUSTOMER DRAWING 1. MATERIAL AND FINISH: - FOR CONNECTOR SHELL AND ADAPTOR: ALUMINUM ALLOY, BLACK FINISH - FOR PG CABLE GLAND: POLYAMIDE BLACK 2. SUPPLIED WITH GOLD PLATED CONTACTS A LINEAR ANGULAR X ± X~ ± 1 X,X ± X~X' ± 30' X,XX± X~X'X"± 15' BREAK ALL SHARP EDGES AND REMOVE ALL BURRS DO NOT SCALE 6 5 4 DIMENSIONS IN 3 CAD FILE: MATL: FINISH: MILIMETRES 55010242000214 SEE NOTE 1 SEE NOTE 1 THIRD ANGLE PROJECTION CHANGE FINISH TO BLACK COATING T.N 17/02/06 3 CHANGE FINISH ADD STAINLESS STEEL WEAR PIN CHANGE FINISH FROM PLATING TO COATING T.N 09/09/05 8478 8422 L.V 16-04-04 8277 ADD DETAIL DIMS OF PG ADPTOR ADD NOTE 3 T.N 30-10-03 8236 FIRST ISSUE T.N 01-08-03 BY DATE 2 1 0 THIS DOCUMENT IS THE PROPERTY OF AMPHENOL AUSTRALIA PTY. LTD.. NO PART THEREOF MAY BE REPRODUCED AND USED WITHOUT THE PRIOR WRITTEN CONSENT OF THE OWNER UNLESS OTHERWISE SPECIFIED TOLERANCE TO BE 4 CHANGE DETAILS REV. DRN: T.N DATE: 01-08-03 TITLE: CKD: S.R P.M DATE: 20/02/06 20/02/06 APP'D: SCALE: DATE: PART No: 2 CABLE CONNECTING RECP WITH PIN CONTACT SEE TABLE SIZE: A4 CHG/No Amphenol Amphenol Australia Pty.Ltd, 2 Fiveways Blvd, Keysborough, Vic3173 DRAWING NO. SHEET 55010242-000-2 1 2 /2 A
