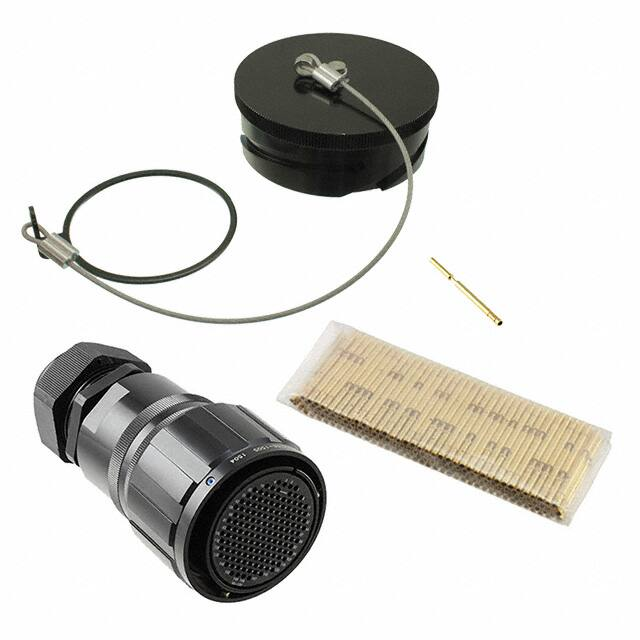

MP-4106-150S-C

6 F 5 4 3 2 1 F Part List, Dimensions in mm MP-4106-13S MP-4106-19S MP-4106-25S MP-4106-37S MP-4106-54S No OF CABLE GLAND CONTACTS SIZE 13 PG11 19 PG13.5 25 PG16 37 PG21 54 PG21 DIA A LENGTH B ROLLER PIN 160 NO 171 NO 193 NO 210 NO 210 YES 39.9 43.1 46.6 53.4 60.7 Amphenol LOGO & PART No. PG ADAPTOR CABLE GLAND WITH STRAIN RELIEF IN PG THREAD A MAX PART No E n E B REF 13, 19, 25, 37 AND 54 CONTACT TYPE D PG ADAPTOR Part List, Dimensions in mm DIA A LENGTH B 72.4 72.4 137 145 ROLLER PIN YES YES C n C No. OF CABLE GLAND CONTACTS SIZE MP-4106-85S 85 PG29 MP-4106-150S 150 PG36 CABLE GLAND IN PG THREAD A MAX PART No D Amphenol LOGO & PART No. B REF B B 85 AND 150 CONTACT TYPE 4 3 NOTES: 1. MATERIAL AND FINISH: - FOR CONNECTOR SHELL AND ADAPTOR: ALUMINUM ALLOY, BLACK FINISH - FOR PG CABLE GLAND: POLYAMIDE BLACK. 2. SUPPLIED WITH GOLD PLATED CONTACTS A CUSTOMER DRAWING UNLESS OTHERWISE SPECIFIED TOLERANCE TO BE LINEAR ANGULAR X ± X~ ± 1 X,X ± X~X' ± 30' X,XX± X~X'X"± 15' BREAK ALL SHARP EDGES AND REMOVE ALL BURRS DO NOT SCALE 6 5 4 DIMENSIONS IN 3 2 1 THIS DOCUMENT IS THE PROPERTY OF AMPHENOL AUSTRALIA PTY. LTD.. NO PART THEREOF MAY BE REPRODUCED AND USED WITHOUT THE PRIOR WRITTEN CONSENT OF THE OWNER CAD FILE: MATL: FINISH: MILIMETRES 55010234000214 SEE NOTE 1 SEE NOTE 1 THIRD ANGLE PROJECTION CHANGE FINISH TO BLACK COATING T.N CHANGE FINISH, NOTES ADD ROLLER PIN, ADD DIM E FOR COUPLING NUT CHANGE FINISH FROM PLATING TO COATING T.N L.V 17/02/06 8478 09/09/05 8422 16-04-04 8277 SEE CHANGE NOTE 8236 T.N 18/11/03 T.N 01/08/03 BY DATE FIRST ISSUE 0 REV. CHANGE DETAILS DRN: T.N DATE: 01/08/03 TITLE: CKD: P.M P.M DATE: 20/02/06 20/02/06 SOCKET CONTACTS APP'D: SCALE: DATE: PART No: 2 STRAIGHT CABLE PLUG WITH SEE TABLE SIZE: A4 2836 CHG/No Amphenol Amphenol Australia Pty.Ltd, 2 Fiveways Blvd, Keysborough, Vic3173 DRAWING NO. SHEET 55010234-000-2 1 2/2 A
