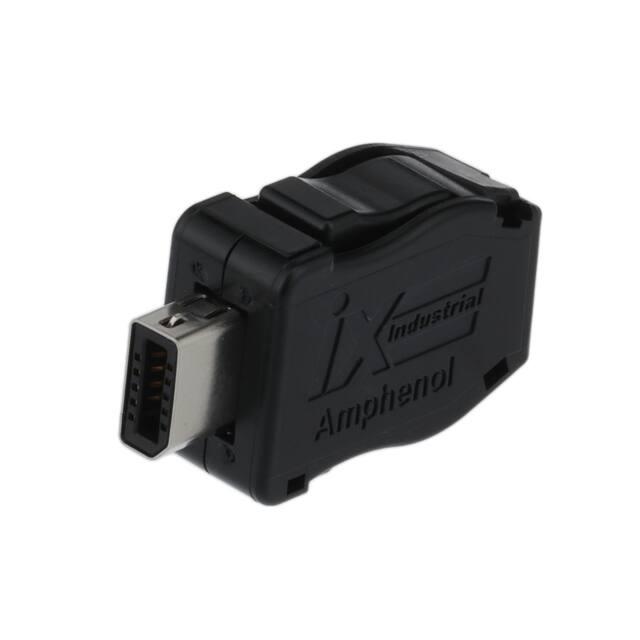

ND9AP7200

Industrial IO & Lighting Solutions ix Industrial™ IP20 Connectors ix Industrial™: Next Generation Industrial IoT Connectivity ix Industrial™ connectors enable IoT connectivity for Ethernet and other Industrial protocols through all levels of an operation from the Enterprise/Cloud to the sensors/actuators at the factory floor. These 10mm pitch connectors featuring 2-point metal latches are just 25% of the size of an RJ45 connector, and as such allow much greater port density and mating security. They are PoE capable, provide data performance to Cat6A level (10GBASE-T), and feature 360° shielding through the mated pair for superior EMI protection. TARGET MARKETS § Increased port density compared to RJ45 § High data rate performance for 10G Ethernet, with PoE capability § Excellent EMI protection for noisy environments § Robust 2 point metal latches for secure mating § Fully intermateable with ix Industrial™ products from other authorized vendors FEATURES BENEFITS § Complies with IEC61076-3-124 § Fully qualified second source intermateable with other vendors’ products § 75% smaller than RJ45 § 10mm connector pitch provides greater port density § 10 position connector with Cat6A 10GBASE-T performance § Supports Ethernet/IP and common protocols including and PoE capability § 360° shielding through mated pair Profinet, DeviceNet, EtherCAT, Modbus and others § Provides excellent EMI immunity for use in electrically noisy environments § 2-point metal latching § Extremely robust mating to prevent accidental disconnection, and more durable than RJ45 latch § Heavy duty shield solder hold-down tabs on PCB mount receptacles § Provides secure connection to the PCB protecting SMT joint integrity under mechanical stresses § 5000 mating cycles § High durability § Field terminable IDC plugs with solder options § Ease of custom cabling or repair in the field with IDC contacts § Solder version for high volume assembly § Keyed housings (Type-A, -B, -C) www.amphenol-icc.com § Controlled mating for Ethernet, Signal/Bus, other ports Amphenol Information Communications and Commercial Products ix Industrial™ IP20 Connectors TECHNICAL INFORMATION MATERIAL SPECIFICATION § External Shields: Stainless steel, nickel plated (plugs) or tin plated § IEC-61076-3-124 (receptacles) § Amphenol Specification: S6168C § Insulators: Thermoplastic, UL94V-0 ENVIRONMENTAL § Contacts: Copper alloy plated with gold over nickel (mating area) § Thermal Shock: 10 cycles between -55°C and +85°C MECHANICAL PERFORMANCE (IEC 60512-11-4, test 11d) § Insertion/Withdrawal Force: 25N (5.6 lbs-force) max. (IEC 60512- § Humidity: Low temperature +25°C, high temperature 13-2, Test 13b) +65°C, cold sub-cycle -10°C, 93% humidity (IEC 60068-2-38, Text Z/AD) § Pull-Out Force: 80N (18 lbs-force) min. (IEC 60512-15-6, Test 15f) § Mechanical Shock: 300m/s2, half-sine pulses, 11ms (IEC 60512-6- § Operating Temperature Range: -55°C to +85°C 3, Test 6c) APPROVALS AND CERTIFICATIONS § Vibration, Sinusoidal: 10Hz – 500Hz, 0.35mm, 50m/s2 (IEC 60512- 6-4, Test 6d) § RoHS § Durability: 5000 mating cycles (IEC 60512-9-1, Test 9a) § UL Pending ELECTRICAL PERFORMANCE TARGET MARKETS/APPLICATIONS § Current Rating: 1.5A @ 40°C (per IEC 60512-5-2, Test 5b) § Voltage Rating: 50V AC max., 60V DC max. § Initial Contact Resistance: 30mΩ max. (per IEC 60512-2-1, Test 2a) § Shielding Resistance: 100mΩ max. (per IEC 60512-2-1, Test 2a) § Insulation Resistance: 500MΩ min. @ 500V DC (per IEC 60512-3-1, Test 3a) § Dielectric Withstanding Voltage: 500V DC (per IEC 60512-4-1, Test 4a, Method A) PACKAGING Switches Traffic Control Monitoring systems Industrial Internet of Things (IIoT) Factory/Process Automation – Machine to Machine, Sensors, Actuators, Nodes Robotics Building Automation Test Equipment Healthcare Medical Equipment § Tray (Plug Connectors) § Carton (Cables) § Tape & Reel (SMT Receptacles) Description Part Numbers Receptacle, Type-X, Plating Y, Right Angle Flag, SMT ND9-XS1Y-00 Receptacle, Type-X, Plating Y, Right Angle Horizontal, SMT ND9-XS3Y-00 Receptacle, Type-X, Plating Y, Vertical SMT ND9-XS2Y-00 Plug, Type-X, Plating Y, IDC Termination, 26AWG-24AWG ND9-XP6Y-00 Plug, Type-X, Plating Y, IDC Termination, 28AWG ND9-XP7Y-00 Plug, Type-X, Plating Y, Solder Pad ND9-XP5Y-00 X = Key (A, B or C) Y = Contact Plating: 1=Gold Flash; 2=8µin Gold; 3=30µin Gold; 4=50µin Gold; 7=30µin PdNi+Gold Flash www.amphenol-icc.com IIOLSIXIP200220EA4 PART NUMBERS Disclaimer Please note that the above information is subject to change without notice.
