NPC-410-030D-3-L

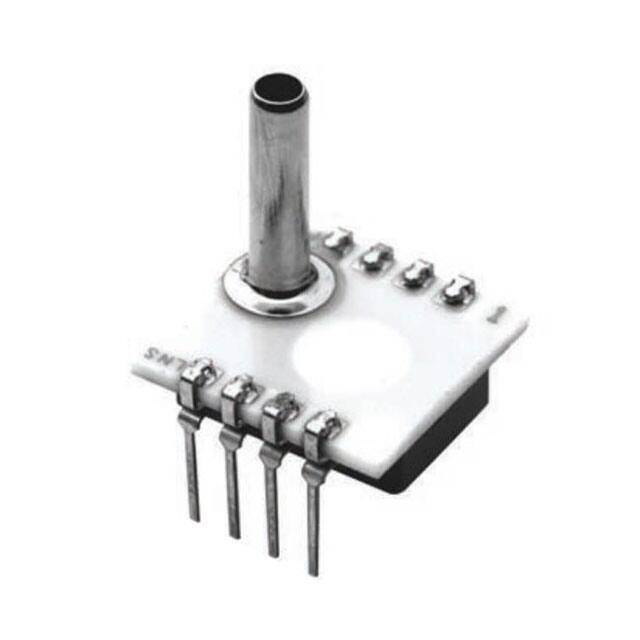

NPC-410 Series Medium Pressure Sensors Applications Features • • • • • • • • • • Industrial automation Air flow monitors Process control Medical equipment Underground cable leak detection Solid state reliability ±0.1% accuracy PCB mountable package DIP package Individual device traceability Description The NPC-410 Series of solid state pressure sensors are designed to provide a cost effective solution for applications that require long-term stability and high volume. Packaged in a dual-in-line configuration, the NPC-410 Series is intended for printed circuit board mounting. Optional pressure port and lead configurations give superior flexibility in low profile applications where pressure connection orientation is critical. The NPC-410 Series is based on NovaSensor’s advanced SenStable® piezoresistive sensing technology. The latest techniques in silicon micromachining have been used to ion implant piezoresistive strain gages into a Wheatstone bridge configuration, which is integrally formed on a micromachined diaphragm. Amphenol Advanced Sensors Constant current or constant voltage can be used for sensor excitation. Offset and sensitivity temperature compensation and calibration can be achieved by adding external resistors. Additionally, the NPC410 series is available in pressure ranges from 0 psi to 5 psi (0 bar to 0.34 bar) through 0 psi to 100 psi (0 bar to 7 bar). Please contact the NovaSensor for other pressure ranges. NPC-410 Specifications Pressure Ranges • Gauge and Differential: 5, 15, 30, 50 and 100 psi (0.34, 1, 2, 3.4 and 7 bar) • Absolute: 15, 30, 50 and 100 psi (1.03, 2.06, 6.89 bar) Parameter Value Units Notes –40 to 257 °F (–40°C to 125°C) –67°F to 302 °F (–55°C to 150°C) 0.005 lb (2.5 g) Environmental Temperature Range Operating(9) Storage Mechanical Weight Media Compatibility Positive differential and gage ports Compatible with exposed materials Absolute and negative differential ports Dry gases only 6 0.60 in (15.24 mm) 0.1 in (2.54 mm) 0.15 in (3.8 mm) 8 7 6 5 0.6 in (15.24 mm G6 0.2 in (5.1 mm) 0.32 in (8.1 mm) 1 2 3 4 0.12 in (3.05 mm) 0.37 in (9.4 mm) Used for positive differential L, S (See Notes) Not used for absolute 0.167 in (4.2mm) Diameter 0.127 in (3.23 mm), Two tubes NPC-410 Series schematic diagram Not used for gauge Ceramic substrate (1) 8X 0.07 in (1.78mm) 8X 0.34 in (8.6 mm) (3) 8X 0.02 in (0.51 mm) 1. Tube length; L = 0.490, S=0.325, N = No tube. 2. Lead pins can be either be in the same or the opposite direction of the pressure tube. Option (1) has the leads in the “Up” position, the same direction as the tube. Option (3) has the leads in the “Down” position, the opposite direction of the tube. NPC-410 Series package diagram NPC-410 Specifications Parameter Units Minimum Type Maximum Notes Full Scale Output (FSO) mV 105 125 155 Zero Pressure Output mV -50 0 50 2 Linearity %FSO — — 0.1 3, 7 Pressure Hysteresis %FSO — — 0.1 Input and Output Impedance Ω 2500 4000 6000 Thermal Accuracy–Span %FSO — 1.5 — 2,4 Thermal Accuracy–Zero %FSO — 0.5 — 2,4 Coefficient-Resistance Temperature %/°C — 0.3 — 4 Thermal Hysteresis–Zero %FSO — 0.1 — 4 Pressure Overload Rated — — 3X 5 Performance Parameters(1) 1. Ambient temperature = 77°F (25°C), unless otherwise noted Supply current = 1.5 mA. 2. External resistors can be added to reduce temperature errors and calibrate the offset and FSO. 3. Best fit straight line. 4. Temperature range 32°F to 140°F (0°C to 60°C), reference to 77°F (25°C). 5. 3X or 200 psi (13.78 bar) maximum, whichever is less. 6. Exposed materials are pyrex, ceramic, silicon, epoxy, RTV and stainless steel. 7. 5 psi (0.34 bar) specifications: Linearity: 0.25 ±%FSO. Ordering Information The code number to be ordered may be specified as follows: NPC-410 Code Pressure Ranges 005 015 030 050 100 Code Type A Absolute G Gauge D Differential Code Lead Configuration 1 Up 3 Down Code Tube Options L Long S Short N None * NPC-410 number - ____ - ____ - ____ - ____ * Order NPC-410-XXXG-XN in place of NPC-410-XXXD-XN Typical model Amphenol Advanced Sensors www.amphenol-sensors.com © 2014 Amphenol Corporation. All Rights Reserved. Specifications are subject to change without notice. Other company names and product names used in this document are the registered trademarks or trademarks of their respective owners. AAS-920-277B - 08/2014
