NPR-101

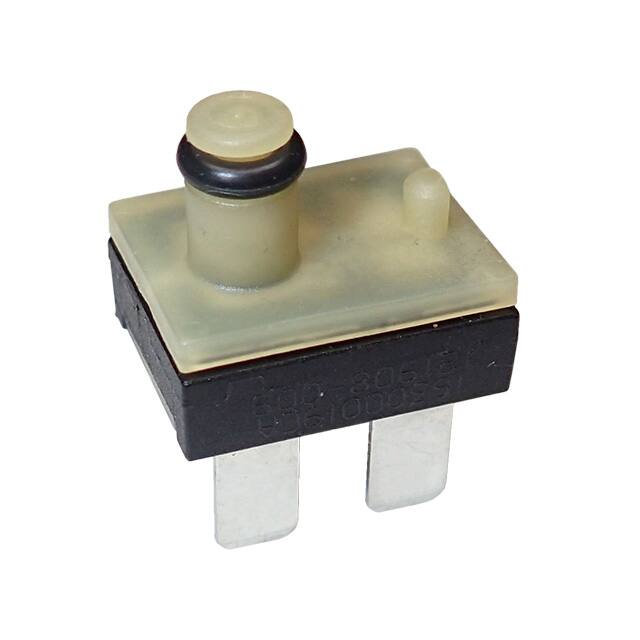

Harsh Media Pressure Sensor NPR-101 NovaSensor’s NPR-101 pressure sensor is a silicon-based MEMS device using “Backside Absolute Pressure” technology designed for harsh media exposure, which eliminates the direct contact of the sensing circuitry with the applied media. The device is coupled with an ASIC to provide a ratiometric output proportional to the applied pressure. Integrated diagnostics included. Applications Features • Transmission fluid pressure sensing • Harsh media compatibility • Oil pressure sensing • High level output • Fuel pressure sensing • Small package Amphenol Advanced Sensors Harsh Media Pressure Sensor Specifications NPR-101 Operating Pressure Range 300 PSIA full scale pressure (20.68 BarA) Performance   Total Error band +/-2.0% FP (-20C to 100C) +/-3.0% FP (100C to 140C) Electrical   Supply Voltage (Vcc) 4.5 to 5.5 VDC (6.5 VDC MAX) Supply Current 3 ma Output Range 10% to 90% of Vcc Over-Voltage Protection 6.5 VDC MAX Reverse Voltage Protection None Durability   Cycle Life 1 million cycles Proof Pressure 1.5 times rated pressure Burst Pressure 2.5 times rated pressure Output Curve : NPR-101 Other transfer functions available on request Dimensions Amphenol Advanced Sensors www.amphenol-sensors.com © 2016 Amphenol Corporation. All Rights Reserved. Specifications are subject to change without notice. Other company names and product names used in this document are the registered trademarks or trademarks of their respective owners. AAS-920-671B - 03/2016
