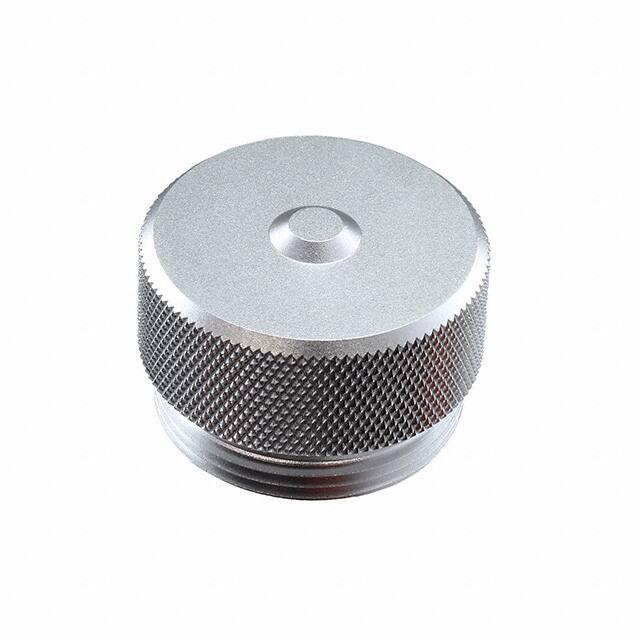

P29043

A1 26.8mm [1.06"] - 12-MAY-14 TECHNICAL DATA SHEET RELEASE KMM RFC 1 3/8 - 16 UN Ø38.5mm [Ø1.52"] Risk of Electrical Shock Do Not Disconnect Under Load. Risque de chocs electriques Ne pas debrancher sous tension. WARNING DESCRIPTION PART NUMBER MATERIALS LIST QUANTITY UNLESS OTHERWISE SPECIFIED 1) 2) 1 2 3 All dimensions are in metric(mm). Tolerances are as follows: PL DEC ±0.30 Fractions ±1/64 PL DEC ±0.15 Angles ±1° PL DEC ±0.08 3) Note reference = X SIGNATURES DRAWN: CHECKED: ENGINEER: APPROVAL: TECHNICAL DATA: 1) MATERIALS: HOUSING: MACHINED ALUMINUM, ANODIZED 2) RoHS COMPLIANT MATERIAL SPECIFICATIONS: KMM MRF KMM RFC DATE 12-MAY-14 12-MAY-14 12-MAY-14 CUSTOMER: PROCESS SPECIFICATIONS: NEXT ASS'Y: THIS DRAWING IS SUPPLIED FOR INFORMATION ONLY. DESIGN FEATURES, SPECIFICATIONS AND PERFORMANCE DATA SIZE SHOWN HEREON ARE THE PROPERTY OF THE AMPHENOL CORPORATION. NO RIGHTS OF REPRODUCTION ARE IMPLIED. ALL DIMENSIONS ARE SUBJECT TO NORMAL SCALE: MANUFACTURING VARIATIONS. ITEM Amphenol Sine Systems - www.amphenol-sine.com 44724 Morley Drive Clinton Township, MI 48036 M35 PB LITE, CLOSURE CAP FOR FEMALE CONNECTOR, TRUNK TYPE C- FULL DWG NO: P29043 C-P29043 SHEET REVISION 1 A1 OF 1
