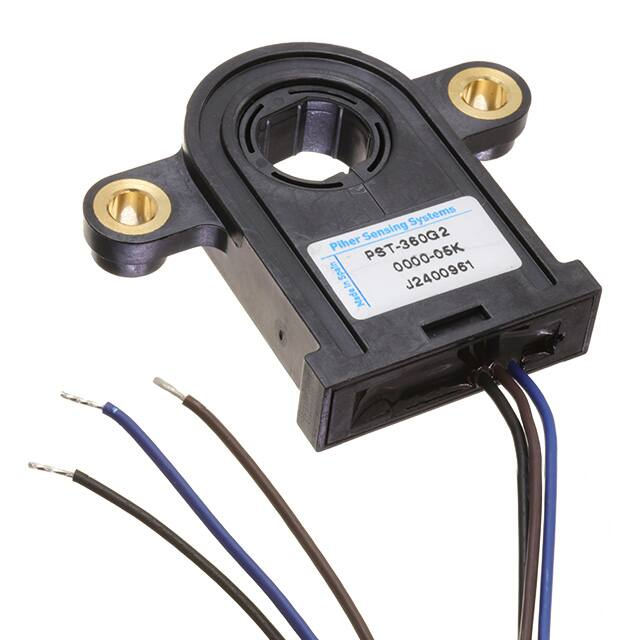

PST360-1A-C0000-ERA360-05K

PST360-1A-C0000-ERA360-05K

  • 厂商:

    AMPHENOL(安费诺)

  • 封装:

    Box with Wire Leads

  • 描述:

    SENSOR ANGLE 360DEG WIRE LEADS

  • 数据手册
  • 价格&库存
PST360-1A-C0000-ERA360-05K 数据手册
Enabling the Electronics Revolution PST-360 Hall-Effect Through-Shaft Position Sensor The PST-360 position sensor combines a through-shaft design with high accuracy 360 degree absolute position feedback and a true non-contacting sensing element that does not rely on gears or other rotating parts. This innovative and unique patented design compliments the attributes of the target application and maintains the mechanical integrity of the application by design. As the sensor is mounted directly at the pivot point no levers, connecting rods or other mechanical interfaces are needed. Furthermore it adapts to shaft’s eccentricity, mounting tolerances and mechanical wear over the life of the application. KEY FEATURES IP67 IP69K Hall Technology Through-Shaft Sensing Noncontacting ▶True non-contacting technology, without gears or mechanical interfaces ▶Simple and robust magnetic design ▶Absolute position feedback up to 360º (keeps position on power loss) with endless rotation ▶True full redundant version ▶Sealed construction for harsh environments such as off-highway and marine ▶Fully programmable transfer function output ▶Self-diagnostic features ▶Over voltage protection and reverse voltage protection ▶Extended voltage input supply values ▶Multi-turn capability available on request 360° Endless Rotation APPLICATIONS MECHANICAL SPECIFICATIONS Rotational life Up to 50.000.000 cycles Mechanical range 360° (endless rotation) ELECTRICAL SPECIFICATIONS Linearity1 ±1% absolute (±0.5% upon request) Angular range Programmable from 15 to 360 degrees Output Analog (Ratiometric), PWM Serial Protocol (SPI) CAN SAE J1939 or SENT upon request Switch output Angular resolution Programmable upon request Analog, PWM SPI Supply voltage2 Supply current 1 2 ▶Steering wheel angle ▶Pedal position ▶Robotic arm position ▶Excavator bucket position ▶Joystick controls ▶Active suspension ▶Marine engine throttle Up to 12 bit Up to 14 bit Up to 25 V Single version Redundant version Typ 8.5 mA Typ 17 mA Ferromagnetic materials close to the sensor (i.e. shaft, mounting surface) may affect the sensor’s linearity. Others specifications available Page 1 of 4 www.piher.net PST-360 Hall-Effect Through-Shaft Position Sensor ENVIRONMENTAL SPECIFICATIONS Operating temperature1 -40° to +125°C Storage temperature -40° to +125°C Shock 50g Vibration 5-2000 Hz; 20g; Amax 0,75 mm 2 Sealing IP67, IP69K CE3 Approval Other specifications available IP rating on electronics EMC-testing according to standards EN 61000-6-2 and EN 6100-6-3. CE-approval applies to analogic-simple and analogic-redundant models. DIMENSIONS (MM) Outer Dimensions 4,9 Download the STEP file here: https://piher.net/piher/?p=838 50 12 CW R1 Metal Insert A 25 6, Metal Insert 5,6 245 37 53,3 5,6 62,0 38 Sensor shown above is the 17mm version with the rotor at zero position. Sensor is delivered at random position 14mm rotor 17mm rotor 17 14,8 15,05 16,75 12,05 11,8 13,75 ,05 14,05 Recommended shaft dimensions ± 0,0 ,02 2 16,7 14,75 ±0 ± 0,02 ,85 ± 0,02 13 11,85 3 8,9 2 12 1 Page 2 of 4 www.piher.net PST-360 Hall-Effect Through-Shaft Position Sensor HOW TO ORDER (Example: PST360G2-1A-C0001-ERA190-05K) Simple Output - Analogic and PWM PST360G2 - Series - C _ _ _ _ - ERA _ _ _ - _ 1 _ Rotor1 Type Output2 Output function3 [empty] = 14mm B = 17mm 1 = simple A = analogic P = PWM C0000 C0001 Electric rotational angle4 ERA040 ERA041 … ERA360 __ Voltage supply K - ____ PWM Frequency Hz5 Temp. range 05 = 5V ±10% RE = 7V-25V K = -40°C to +125°C [empty] = 200Hz F100 = 100Hz F101 = 101Hz … F999 = 999Hz Simple output - SPI PST360G2 - Series _ 1 S Rotor1 Type Output2 [empty] = 14mm B = 17mm 1 = simple S = SPI - C _ _ _ _ - ERA _ _ _ Output function3 C0000 C0001 Electric rotational angle4 ERA040 ERA041 … ERA360 __ Voltage supply K Temp. range 05 = 5V ±10% K = -40°C to +125°C RE = 7V-25V Redundant output - Analogic and PWM PST360G2 - Series - C _ _ _ _ - ERA _ _ _ - _ 2 __ Rotor1 Type Output2 Output function3 [empty] = 14mm B = 17mm 2 = redundant AA= analogic PP = PWM C0002 C0003 Electric rotational angle4 ERA040 ERA041 … ERA360 __ Voltage supply K - Temp. range 05 = 5V ±10% K = -40°C to +125°C RE = 7V-25V ____ ____ PWM Frequency Hz.(1)(1)5 PWM Frequency Hz. (2)5 F100 F101 … F999 F100 F101 … F999 ____ ____ PWM Frequency Hz.(1)(1)5 PWM Frequency Hz. (2)5 F100 F101 … F999 F100 F101 … F999 Full-redundant output - Analogic and PWM PST360G2 Series - - C _ _ _ _ - ERA _ _ _ - _ 3 __ Rotor1 Type Output2 Output function3 [empty] = 14mm B = 17mm 3 = full-redundant AA= analogic PP = PWM C0002 C0003 Electric rotational angle4 05 Voltage supply K Temp. range 05 = 5V ±10% K = -40°C to +125°C ERA040 ERA041 … ERA360 - 1 Other rotors available on request. 2 The analog output is ratiometric, proportional: - for supply voltage “5V” to input voltage; -for supply voltage “RE” to 5V. 3 Other output functions available, please check availability. Enter CXXXX as long as the new output function is not defined. 4 Models with ERA < 40° available on request 5 Leave empty if not applicable. Default frequency is 200 Hz EXAMPLE OUTPUT FUNCTIONS C0000 (simple) C0001 (simple) C0002 (redundant) C0003 (redundant) Page 3 of 4 www.piher.net PST-360 Hall-Effect Through-Shaft Position Sensor SPECIAL ROTORS Ref. 3457 Ref. 3458 9,74 ø14,0 9,74 6 5,9 ø13 ,75 5 For more information visit: www.piher.net MOUNTING INSTRUCTIONS 1. 2. 3. Place the component on a flat surface. Fit the shaft of the application (see recommended shaft dimensions) through the sensor's rotor avoiding any mechanical play/wobble. Fasten the two M5 screws (M5 washers are recommended). CONNECTION SCHEME Simple analog output connection wiring scheme. Other versions and connector options available upon request. Brown Blue Black White Grey = Power supply = Ground = Signal output = Not used = Not used Fly leads with Wires: 0.35mm² TXL SAE J1128 OUR ADVANTAGE ▶Leading-edge innovative position sensing solutions ▷Contactless (Hall-effect and Inductive Technology) ▷Contacting (Potentiometers, Printed Electronics) ▶Engineering design-in support ▶All our products can be customized to fit target application and customer requirement ▶Capability to move seamlessly from development to true high-volume production ▶A global footprint with global engineering and commercial support ▶One-stop shop not limited to position sensors (temperature, pressure, gas,…) through group collaboration ▶Flexibility and entrepreneurship of a medium-sized company with the backing of Amphenol Corporation ISO 14001 CONTACT BUREAU VERITAS Certification Disclaimer: The product information in this catalog is for reference purposes. Please consult for the most up to date and accurate design information. Piher Sensors & Controls S.A., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively, “Piher”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained herein or in any other disclosure relating to any product described herein. Piher disclaims any and all liability arising out of the use or application of any product described herein or of any information provided herein to the maximum extent permitted by law. The product specifications do not expand or otherwise modify Piher’s terms and conditions of sale, including but not limited to the warranty expressed therein, which apply to these products. No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by any conduct of Piher. The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications unless otherwise expressly indicated. Customers using or selling Piher products not expressly indicated for use in such applications do so entirely at their own risk and agree to fully indemnify Piher for any damages arising or resulting from such use or sale. Please contact authorized Piher personnel to obtain written terms and conditions regarding products designed for such applications. Product names and markings noted herein may be trademarks of their respective owners. Information contained in and/or attached to this catalogue may be subject to export control regulations of the European Community, USA, or other countries. Each recipient of this document is responsible to ensure that usage and/or transfer of any information contained in this document complies with all relevant export control regulations. If you are in any doubt about the export control restrictions that apply to this information, please contact the sender immediately. For any Piher Exports, Note: All products / technologies are EAR99 Classified commodities. Exports from the United States are in accordance with the Export Administration Regulations. Diversion contrary to US law is prohibited. Rev: 07092021 Please always use the latest updated datasheets and 3D models published on our website. Piher Sensing Systems Polígono Industrial Municipal Vial T2, Nº22 31500 Tudela Spain sales@piher.net Europe: +34 948 820 450 Americas: +1 636 251 0855 China: +86 132 6063 0831 Asia Pacific: +65 9641 8886 India: +91 9538 686 586 Page 4 of 4 www.piher.net
